56

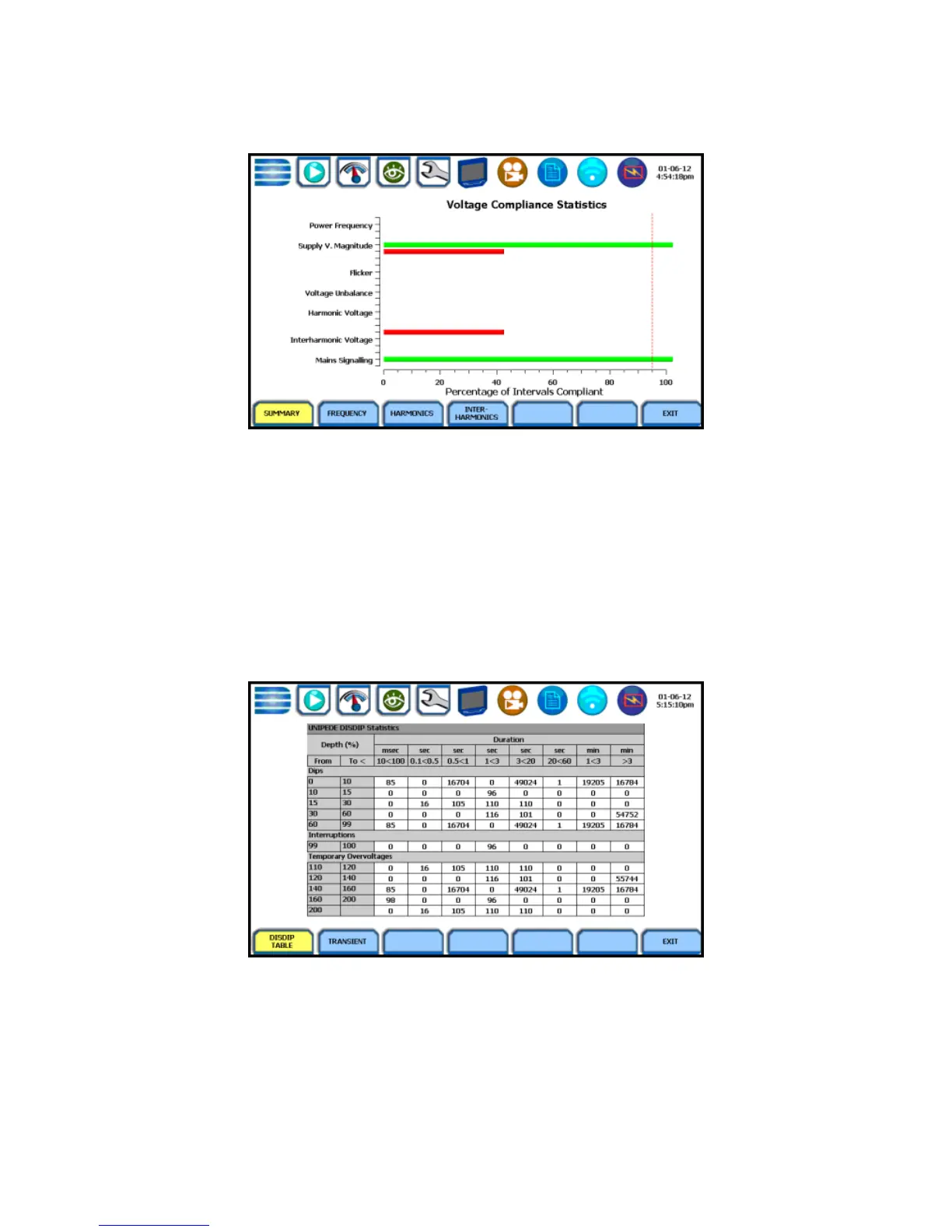

You can view component graphs for three parameters using the soft
keys provided - Frequency for Power Frequency graph, Harmonics for
Harmonic graph, and Interharmonics for Interharmonic graph.
DISDIP
The EN50160 DISDIP (distribution of dips) table is based upon the event
statistics calculated by EN50160. It includes the UNIPEDE DISDIP
Statistics and the table for Transient Overvoltages. UNIPEDE DISDIP
data is collected and saved on a weekly basis with the counts reset as
the final file save occurs. If additional data is detected for an evaluation
period after that period has been saved, that internal data is retrieved
and updated.
The DISDIP table also includes those events of Transient type. Use the
Transient key to display data for Transient Overvoltage.
