DSE
®
DEEP SEA ELECTRONICS PLC UK
Highfield House, Hunmanby Industrial Estate, Hunmanby YO14 0PH
TELEPHONE +44 (0) 1723 890099 FACSIMILE +44 (0) 1723 893303
EMAIL sales@deepseaplc.com WEBSITE www.deepseaplc.com
DEEP SEA ELECTRONICS INC USA
3230 Williams Avenue, Rockford, IL 61101-2668 USA
TELEPHONE +1 (815) 316 8706 FACSIMILE +1 (815) 316 8708
EMAIL sales@deepseausa.com WEBSITE www.deepseausa.com
055-108/01/12 (3) US
KEY FEATURES
• Configurable inputs (11)
• Configurable outputs (8)
• Voltage measurement
• Mains (utility) failure detection
• Dedicated load test button
• kW overload alarms
• Comprehensive electrical
protection
• RS232, RS485 & Ethernet
remote communications
• Modbus RTU/TCP
• PLC functionality
• Multi event exercise timer
• Back-lit LCD 4-line text display
• Multiple display languages
• Automatic start/Manual start
• Audible alarm
• Fixed and flexible LED indicators
• Event log (250)
• Engine protection
• Fault condition notification to
a designated PC
• Front panel mounting
• Protected front panel
programming
• Configurable alarms and timers
• Configurable start and stop timers
• Five key menu navigation
• Front panel editing with PIN
protection
• 3 configurable maintenance
alarms
• CAN and magnetic pick-up/Alt.
sensing
• Fuel usage monitor and low fuel
alarms
• Charge alternator failure alarm
• Manual speed control (on
compatible CAN engines)
• Manual fuel pump control
• “Protections disabled” feature
• Reverse power protection
• Power monitoring (kW h, kV Ar,
kV A h, kV Ar h)
• Load switching (load shedding
and dummy load outputs)
• Automatic load transfer (DSE7420)
• Unbalanced load protection
• Independent earth fault trip
• Fully configurable via DSE
Configuration Suite PC software
• Configurable display languages
• Remote SCADA monitoring via
DSE Configuration Suite PC
software
• Additional display screens to
help with modem diagnostics
• DSENet
®
expansion
• Integral PLC editor
KEY BENEFITS
• RS232, RS485 & Ethernet can
be used at the same time
• DSENet
®
connection for
system expansion
• PLC functionality
• Five step dummy load support
• Five step load shedding support
• High number of inputs and
outputs
• Worldwide language support
• Direct USB connection to PC
• Ethernet monitoring
• USB host
• Data logging & trending
RELATED MATERIALS
TITLE PART NO’S
DSE7410 Installation Instructions 053-085
DSE7420 Installation Instructions 053-088
DSE74xx Quick Start Guide 057-162
DSE74xx Operator Manual 057-161
DSE74xx PC Configuration Suite Manual 057-160
SPECIFICATION
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout
and supply recovers to 5 V. This is achieved
without the need for internal batteries
MAXIMUM OPERATING CURRENT
260 mA at 12 V, 130 mA at 24 V
MAXIMUM STANDBY CURRENT
120 mA at 12 V, 65 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
OUTPUTS C & D
8 A AC at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G,H,I & J
2
A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAINS (UTILITY) (DSE7420)
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
BUS (DSE7410)
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
DIMENSIONS
OVERALL
240 mm x 181 mm x 42 mm
9.4” x 6.8” x 1.6”
PANEL CUTOUT
220 mm x 160 mm
8.7” x 6.3”
MAXIMUM PANEL THICKNESS
8 mm
0.3”
STORAGE TEMPERATURE RANGE
-40 °C to +85°C
-40 °F to +185 °F
OPERATING TEMPERATURE RANGE
-30 °C to +70 °C
-22 °F to +158 °F

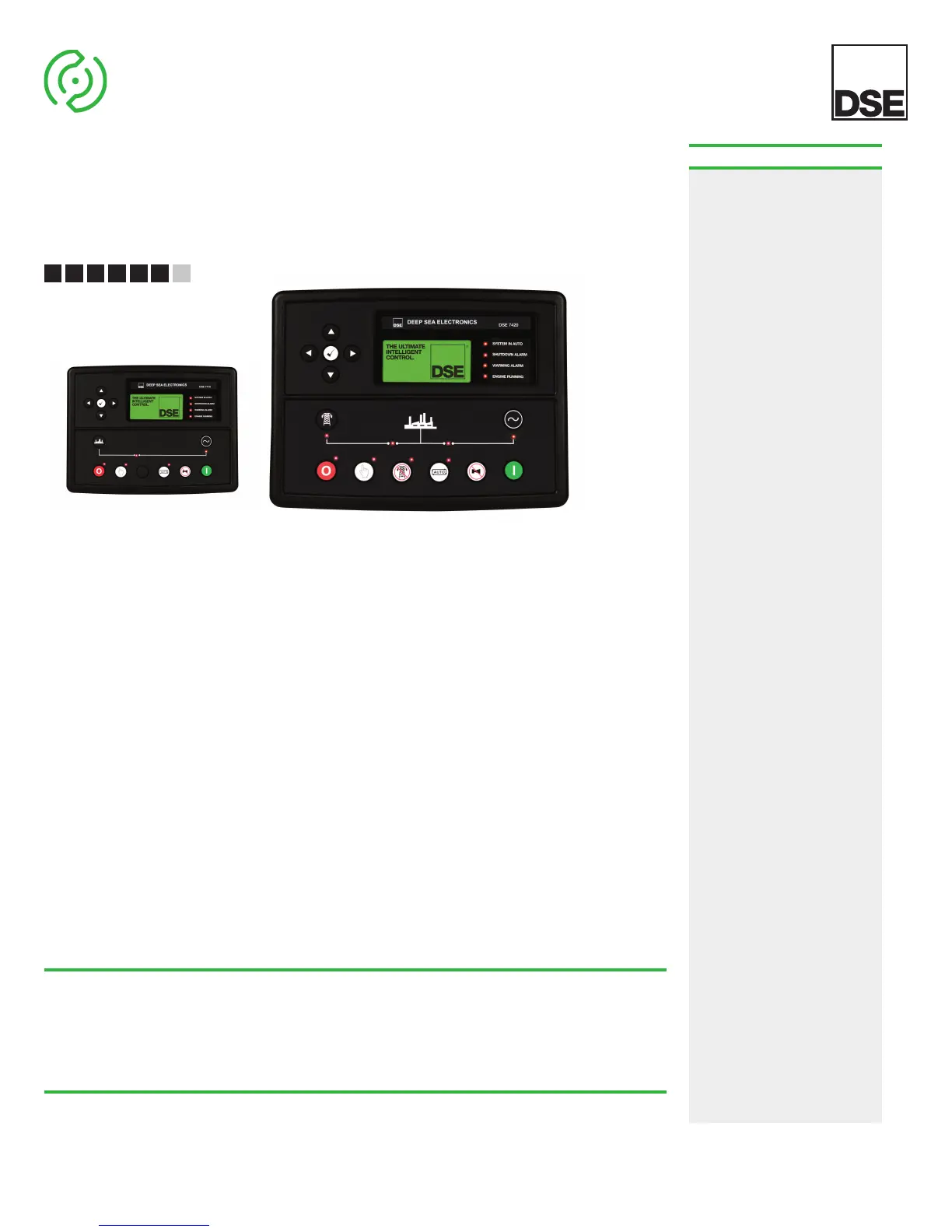

DSE7410/20
AUTO START & AUTO MAINS FAILURE MODULES
FEATURES
Registered in England & Wales No.01319649
VAT No.316923457
Deep Sea Electronics Plc maintains a policy of continuous development and reserves the right to change
the details shown on this data sheet without prior notice. The contents are intended for guidance only.
DSE7410
DSE7420
