DSE DSE7410 - DSE7420 Auto Start Module Controls

Description Of Controls
59

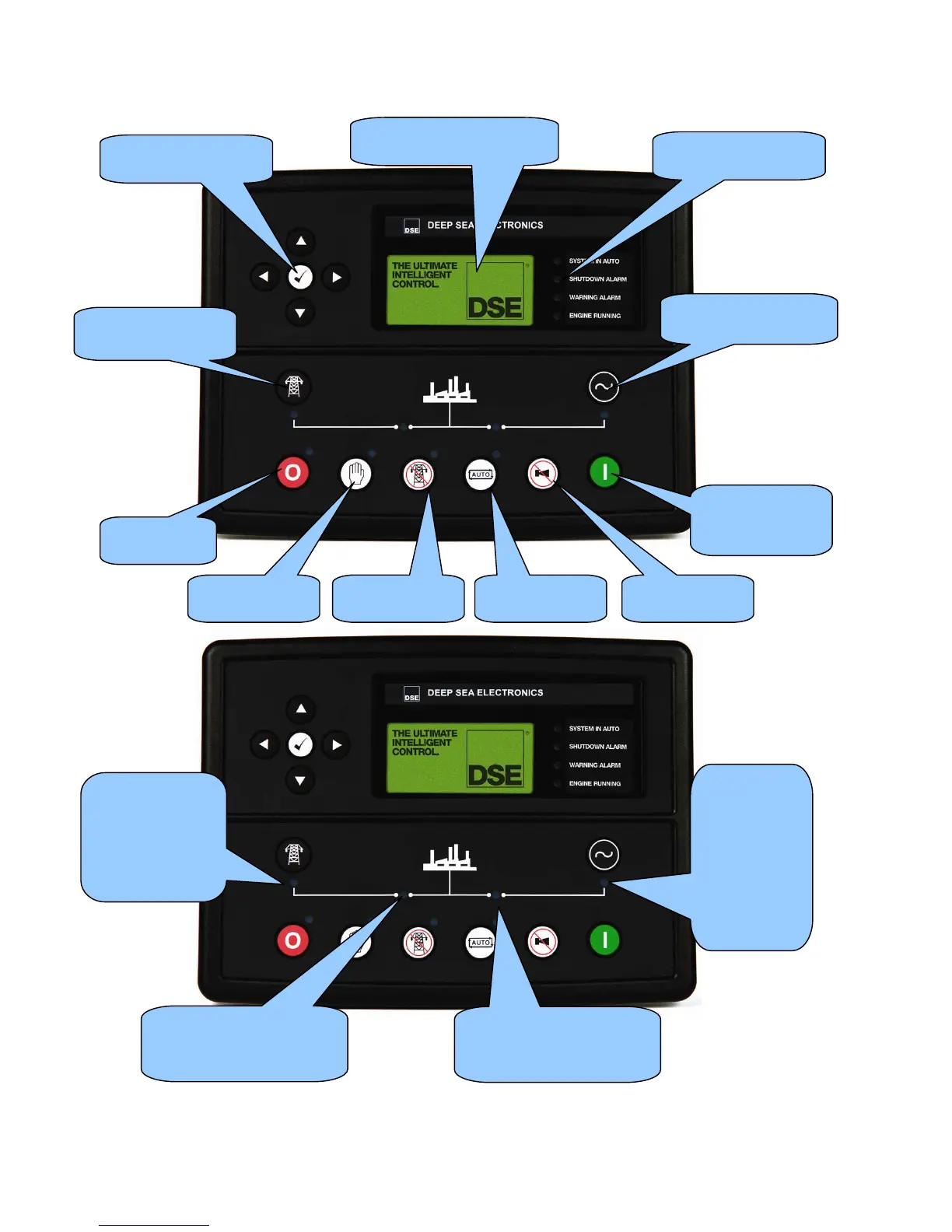

5.2 DSE7420 AUTO START CONTROL MODULE
Menu navigation
buttons
Four configurable
LEDs
Select Stop
mode
Select Manual
mode
Select Auto
mode
Mute alarm /
Lamp test
Start engine
(when in manual
or Testmode)
Transfer to Generator
(manual mode only)
Transfer to Mains
(manual mode
only)
Main status and
instrumentation display
Select Test
mo
de
Mains Available
LED.
On when the
mains is within
limits and able to
take load.
Close Mains LED.
On When The Mains Is
On Load.
Close Bus LED.
On When The Bus Is On
Load.
Generator
Available
LED.
On when the
generator is
within limits
and able to
take load.
