Installation – Typical Wiring Diagrams
49
4.3 ALTERNATIVE TOPOLOGIES
The controller is factory configured to connect to a 3 phase, 4 wire Star connected alternator. This
section details connections for alternative AC topologies. Ensure to configure the controller to suit the
required topology.
NOTE:- Refer to DSE7400 Series Configuration Suite Manual (DSE part 057-160) for further
details on configuring, monitoring and control.

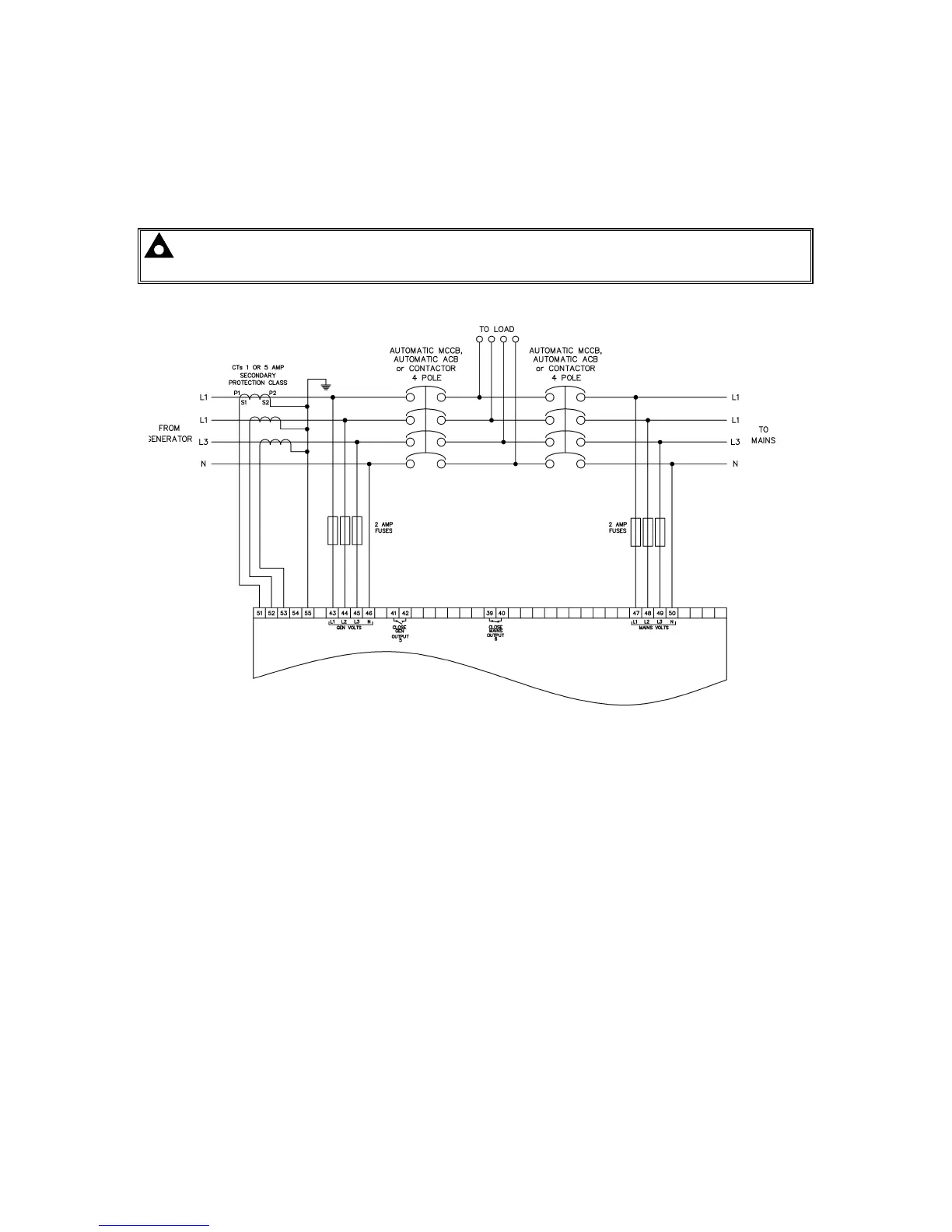

4.3.1 3 PHASE, 4 WIRE WITHOUT EARTH FAULT PROTECTION
