Specification
30
3.13 DIMENSIONS AND MOUNTING

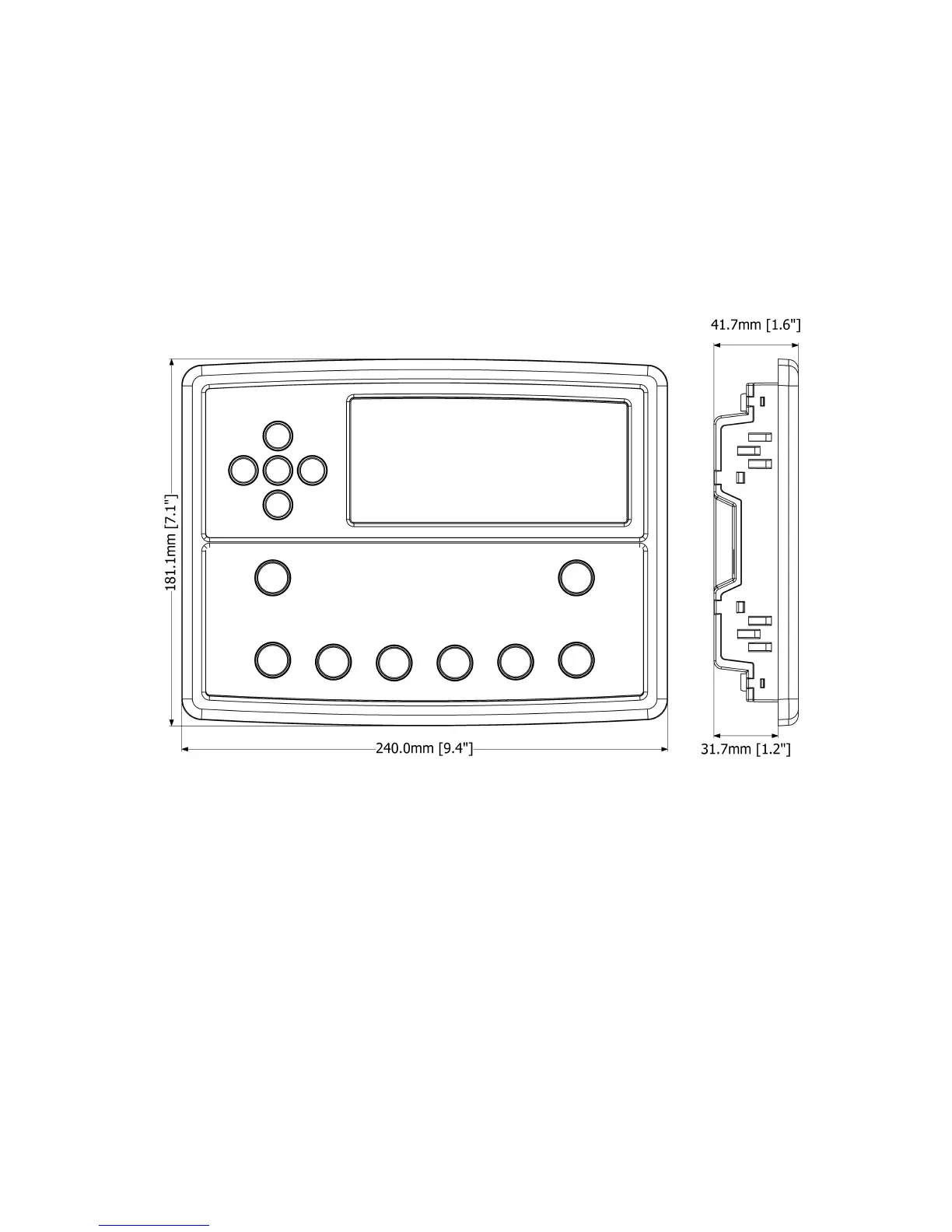

3.13.1 DIMENSIONS
240.0mm x 181.1mm x 41.7mm
(9.4” x 7.1” x 1.6”)
3.13.2 PANEL CUTOUT
220mm x 160mm
(8.7” x 6.3”)
3.13.3 WEIGHT
0.7kg (1.4lb)
