5.6 USER CONFIGURABLE INDICATORS
These LEDs can be configured by the user to indicate any one of 100+
different functions based around the following:-
• Indications - Monitoring of a digital input and indicating associated
functioning user’s equipment - Such as Battery Charger On or Louvres
Open, etc.
• WARNINGS, ELECTRICAL TRIPS & SHUTDOWNS - Specific
indication of a particular warning or shutdown condition, backed up by
LCD indication - Such as Low Oil Pressure Shutdown, Low Coolant
level, etc.
• Status Indications - Indication of specific functions or sequences
derived from the modules operating state - Such as Safety On, Pre-
heating, Panel Locked, Generator Available, etc.

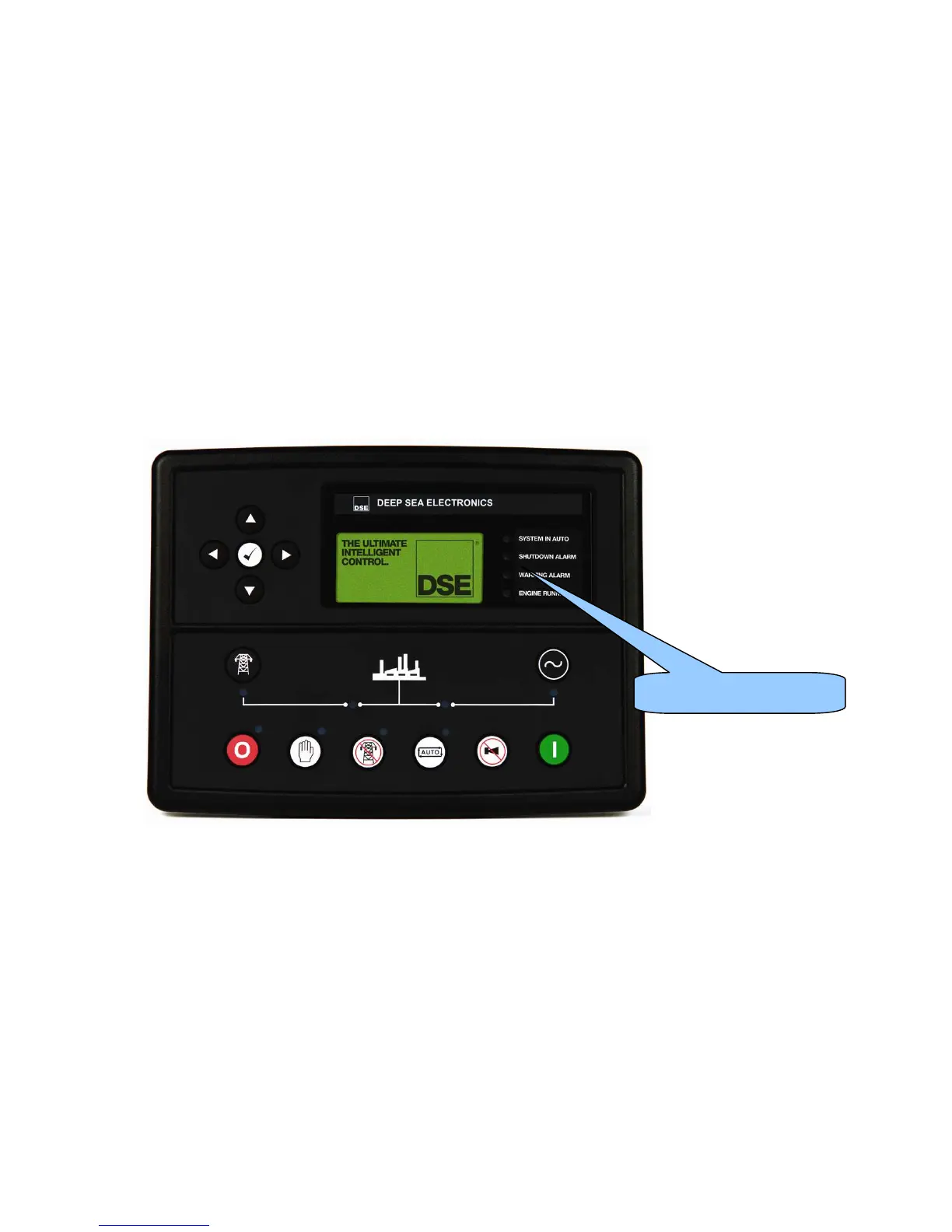

User configurable LEDs
