5 DESCRIPTION OF CONTROLS

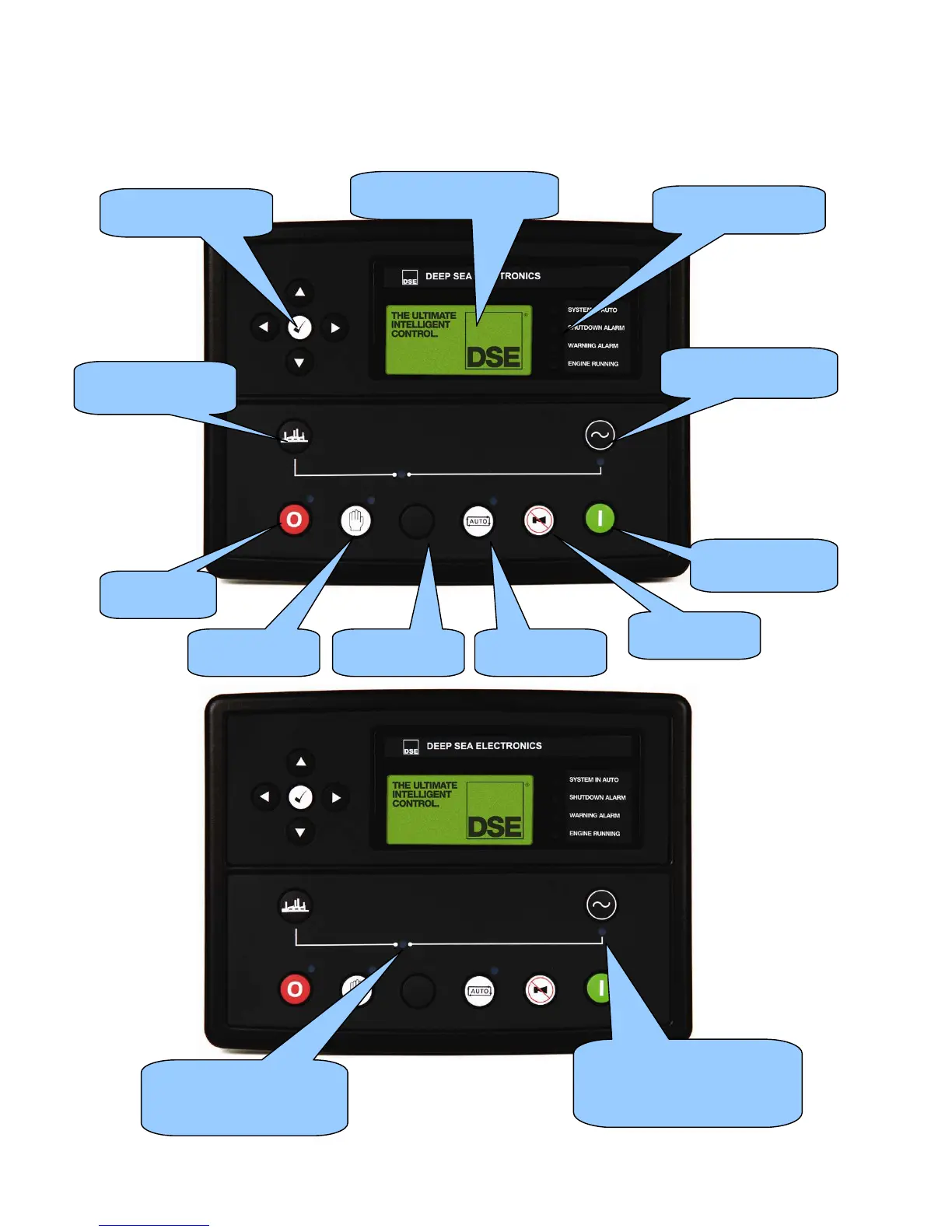

5.1 DSE7410 AUTO START CONTROL MODULE
Menu navigation
buttons
Four configurable
LEDs
Select Stop
mode
Select Manual
mode
Select Auto
mode
Mute alarm /
Lamp test
Start engine
(when in manual)
Close Generator
(manual mode only)
Open Generator
(manual mode
only)
Main status and
instrumentation display
Select Test
mode
Close Generator LED.
On When The Generator
Is On Load.
Generator Available LED.
On when the generator is
within limits and able to take
load.
