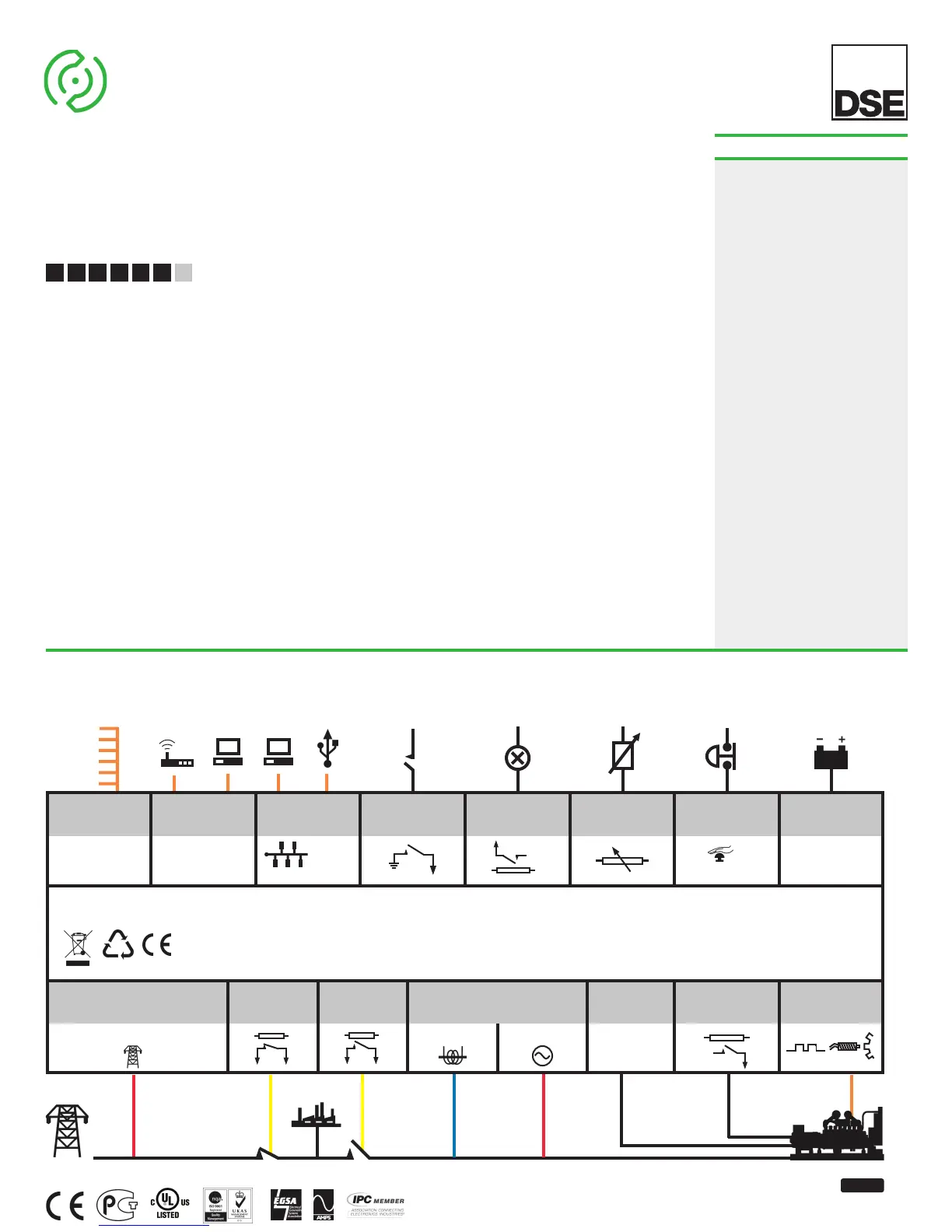

DSE
DSE7410/20
AUTO START & AUTO MAINS FAILURE MODULES
11ph
2ph
3ph
N
1ph
2ph
3ph
E
N
1ph
2ph
3ph
N
1
11
232
64
MODEM
ISSUE 1
RS232 AND
RS485
CONFIGURABLE
INPUTS
DC OUTPUTS ANALOGUE
SENDERS
EMERGENCY
STOP
DC POWER
SUPPLY 8-35V
DEUTZ
ISUZU
PERKINS
CATERPILLAR
MTU
VOLVO
CUMMINS
SCANIA
+
D +
W/L
GENERATOR SENSING
VOLTSVOLTS CURRENT
ELECTRONIC
ENGINES &
MAGNETIC PICK-UP
FUEL & CRANK
OUTPUTS
FLEXIBLE WITH CAN
CHARGE
ALTERNATOR
N/O VOLT
FREE OUTPUT
N/C VOLT FREE
OUTPUT
+
COMPREHENSIVE FEATURE LIST TO SUIT A WIDE VARIETY OF
GEN-SET APPLICATIONS
DSE7410/20
The DSE7410 is an Auto Start
Control Module and the DSE7420
is an Auto Mains (Utility) Failure
Control Module suitable for a wide
variety of single, diesel or gas,
gen-set applications.
A sophisticated module monitoring
an extensive number of engine
parameters, the DSE74xx will
annunciate warnings, shutdown
and engine status information on
the back-lit LCD screen, illuminated
LED, remote PC, and audible
alarms. The module includes
RS232, RS485 & Ethernet ports as
well as dedicated terminals for
system expansion.
The DSE7400 Series modules are
compatible with electronic (CAN)
and non-electronic (magnetic pick-
up/alternator sensing) engines and
offer a comprehensive number of
flexible inputs, outputs and
extensive engine protections so the
system can be easily adapted to
meet industry requirements.
The modules can be easily
configured using the DSE
Configuration Suite Software.
Selected front panel editing is also
available.
FEATURES
ENVIRONMENTAL TESTING STANDARDS
ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for
the Industrial Environment
BS EN 61000-6-4
E
MC Generic Emission Standard for
the Industrial Environment
ELECTRICAL SAFETY
B
S EN 60950
Safety of Information Technology Equipment,
including Electrical Business Equipment
TEMPERATURE
BS EN 60068-2-1
Ab/Ae Cold Test -30
o
C
BS EN 60068-2-2
Bb/Be Dry Heat +70
o
C
VIBRATION
BS EN 60068-2-6
Ten sweeps in each of three
major axes
5 Hz to 8 Hz @ +/-7.5 mm,
8 Hz to 500 Hz @ 2 gn
HUMIDITY
BS EN 60068-2-30
Db Damp Heat Cyclic 20/55
o
C
@ 95% RH 48 Hours
BS EN 60068-2-78
C
ab Damp Heat Static 40
o
C
@ 93% RH 48 Hours
SHOCK
B
S EN 60068-2-27
Three shocks in each of three major axes
15 gn in 11 mS
DEGREES OF PROTECTION
PROVIDED BY ENCLOSURES
BS EN 60529
IP65 - Front of module when installed into the
control panel with the supplied sealing gasket.
U
S
B
P
O
R
T
U
S
B
H
O
ST
DSENET
EXPANSION
MAINS (UTILITY) SENSING (DSE7420)
BUS SENSING
(DSE7410)
