1-21
Chapter 1 Before Operation

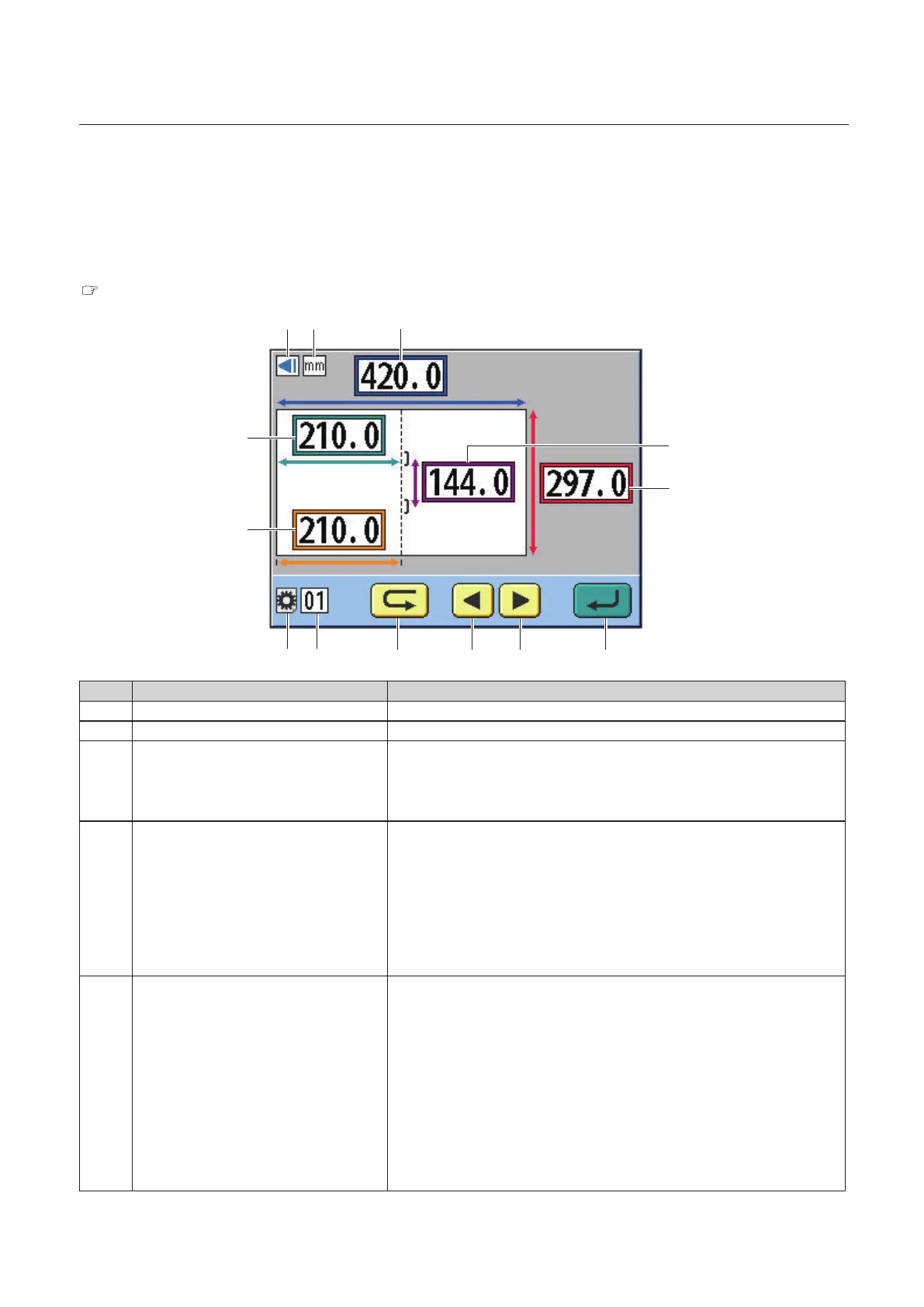

4-4-3. Paper size entry screen
This is a screen to enter a paper length and paper width.
Once you enter a length and width, the stitching position, folding position and the stitching width is
automatically displayed.
To change a value, press the box in which a value is displayed. The value will be [0] and the numeric entry
screen will be displayed. Enter a value using the numeric keypad.
”4-4-1. Stitch and fold setting screen” (p.1-19)
[3]
[2]
[4]
[7]
[1]
[5]
[6]
[8] [9] [10]
[13][12][11]
No. Item Details
[1] Paper conveyance direction Displays the paper conveyance direction.
[2] Unit Displays a unit for a value currently displayed.
[3] Paper length Enter a paper length.
Setting range:
Saddle stitching, no stitch: 170 to 640 mm/6.70 to 25.19 inches
Side stitching, corner stitching: 170 to 364 mm/6.70 to 14.33 inches
[4] Paper width Enter a paper width.
Setting range:
Saddle stitching, no stitch: 105 to 364 mm/4.14 to 14.33 inches (for
2 stitches)
Saddle stitching: 193.5 to 364 mm/7.62 to 14.33 inches (for 4
stitches)
Side stitching: 210 to 364 mm/8.27 to 14.33 inches
Corner stitching: 210 to 356 mm/8.27 to 14.01 inches
[5] Stitching position Enter a stitching position. A distance from the lead edge of the paper
to the stitching position is displayed. This is displayed when "saddle
stitching" has been selected.
Setting range:
Saddle stitching: (paper length/2) ±15 mm/0.59 inch
*The value must be between 85 and 320 mm/3.35 and 12.59 inches
and the dierence with the paper length must be between 85 and
320 mm/3.35 and 12.59 inches.
Default: paper length/2
*During calendar making operations, the default is +5 mm/0.20
inch.
To Next Page
