17 Folder
17.1 Assembling the folder

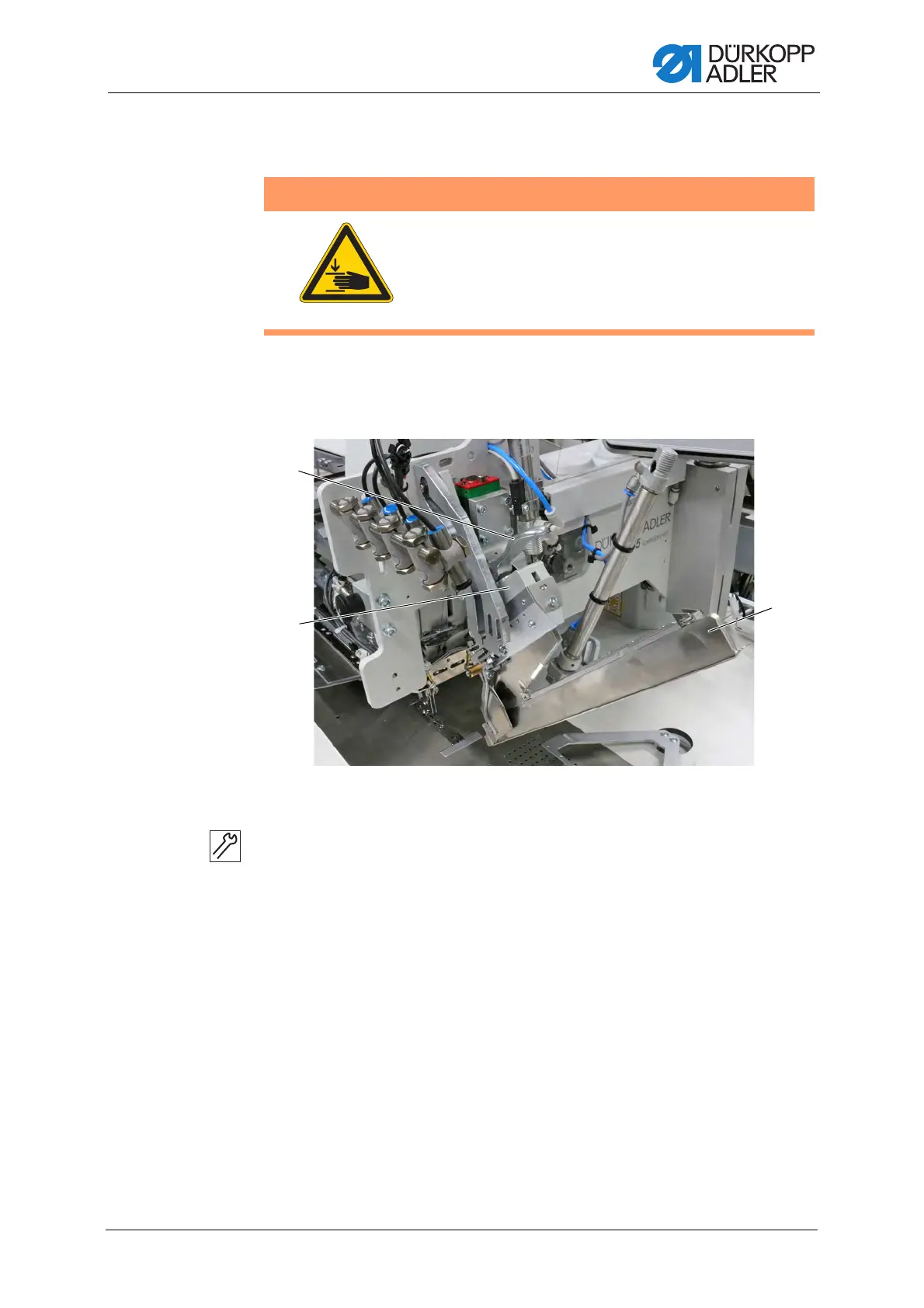

Fig. 107: Assembling the folder
To assemble the folder:
1. Loosen the lever (1).
2. Slide the folder (3) up to the mounting plate (2) as far as it will go.
3. Tighten the lever (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before adjusting the folder
settings.
(1) - Lever
(2) - Mounting plate
(3) - Folder
