Transport clamps
126 Service Instructions 755 A/756 A - 00.0 - 02/2019
19.3 Aligning the transport clamps with the sliding plate edge

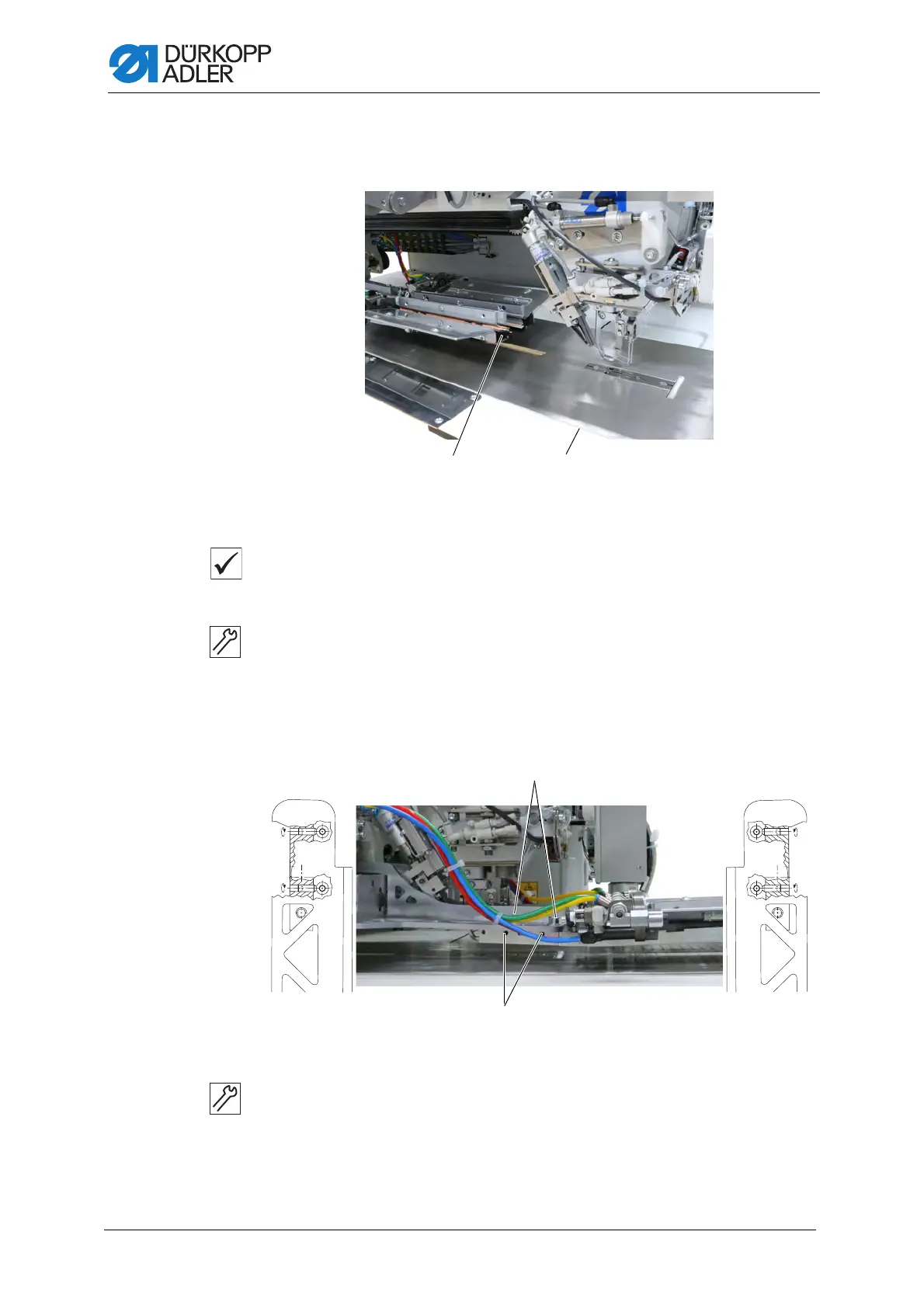

Fig. 126: Aligning the transport clamps with the sliding plate edge (1)
Proper setting
The transport clamps (1) must be parallel with the folder as well as with
the edge of the sliding plate (2) ( p. 105).
To align the transport clamps relative to the measuring line:
1. Slide the transport clamps (1) into the loading area.
2. Check if the inner edge of the transport clamp and the edge of the
sliding plate (2) are parallel to each other.
Fig. 127: Aligning the transport clamps with the sliding plate edge (2)
3. Loosen the screws (3).
4. Set the transport clamps (1) in parallel position relative to the sliding
plate edge using the hexagon screws (4) (SW 2).
Turn the hexagon screws (4) clockwise or counterclockwise until reach-
ing the parallel position.
(1) - Transport clamps (2) - Edge of the sliding plate
(measuring line)
(3) - Screws (4) - Hexagon screws
