Multi-functional corner knife station
172 Service Instructions 755 A/756 A - 00.0 - 02/2019
To set the speed of the downward movement (red and green pneumatic
hoses):
1. Turn throttle valves (5), (6), (7), and (8).
• lower speed: turn clockwise
• higher speed: turn counterclockwise
22.2.2 Setting the end position damping

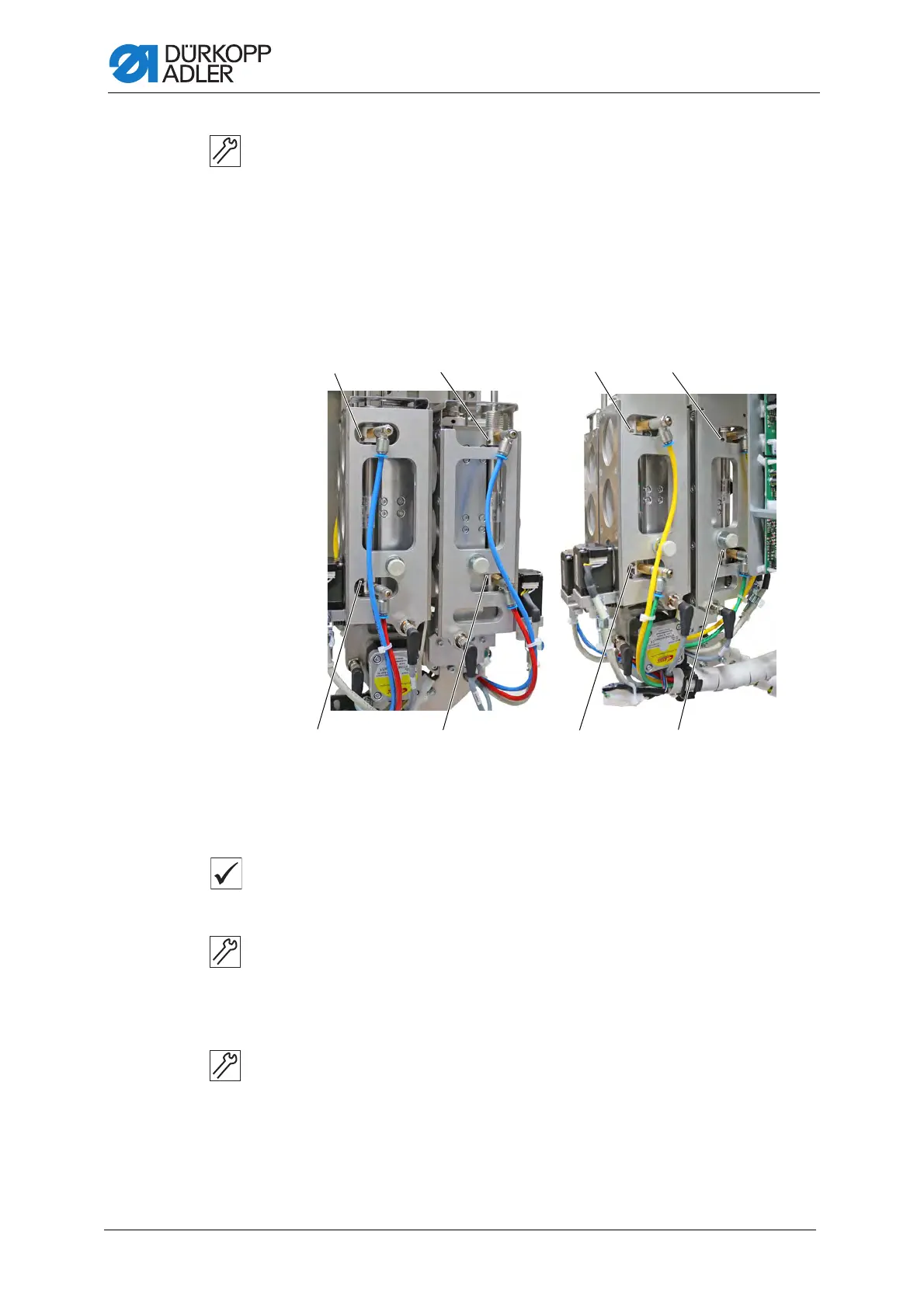

Fig. 169: Setting the end position damping
Proper setting
The movement of the corner knives is not supposed to be dampened until
the last moment.
To set the upper end position damping:
1. Turn throttle valves (1), (2), (3), and (4):
• stronger damping: turn clockwise
• weaker damping: turn counterclockwise
To set the lower end position damping:
1. Turn throttle valves (5), (6), (7), and (8):
• stronger damping: turn clockwise
• weaker damping: turn counterclockwise
(1) - Throttle valve
(2) - Throttle valve
(3) - Throttle valve
(4) - Throttle valve
(5) - Throttle valve
(6) - Throttle valve
(7) - Throttle valve
(8) - Throttle valve
①②③④
⑤⑥ ⑦⑧
