Light barriers

Service Instructions 755 A/756 A - 00.0 - 02/2019 187

24 Light barriers

To activate the light barriers:

1. Open the menu Service > Machine config. > Light barrier

scan to press the button and select the desired light barrier

configuration ( p. 353).

24.1 Setting the light barrier holder

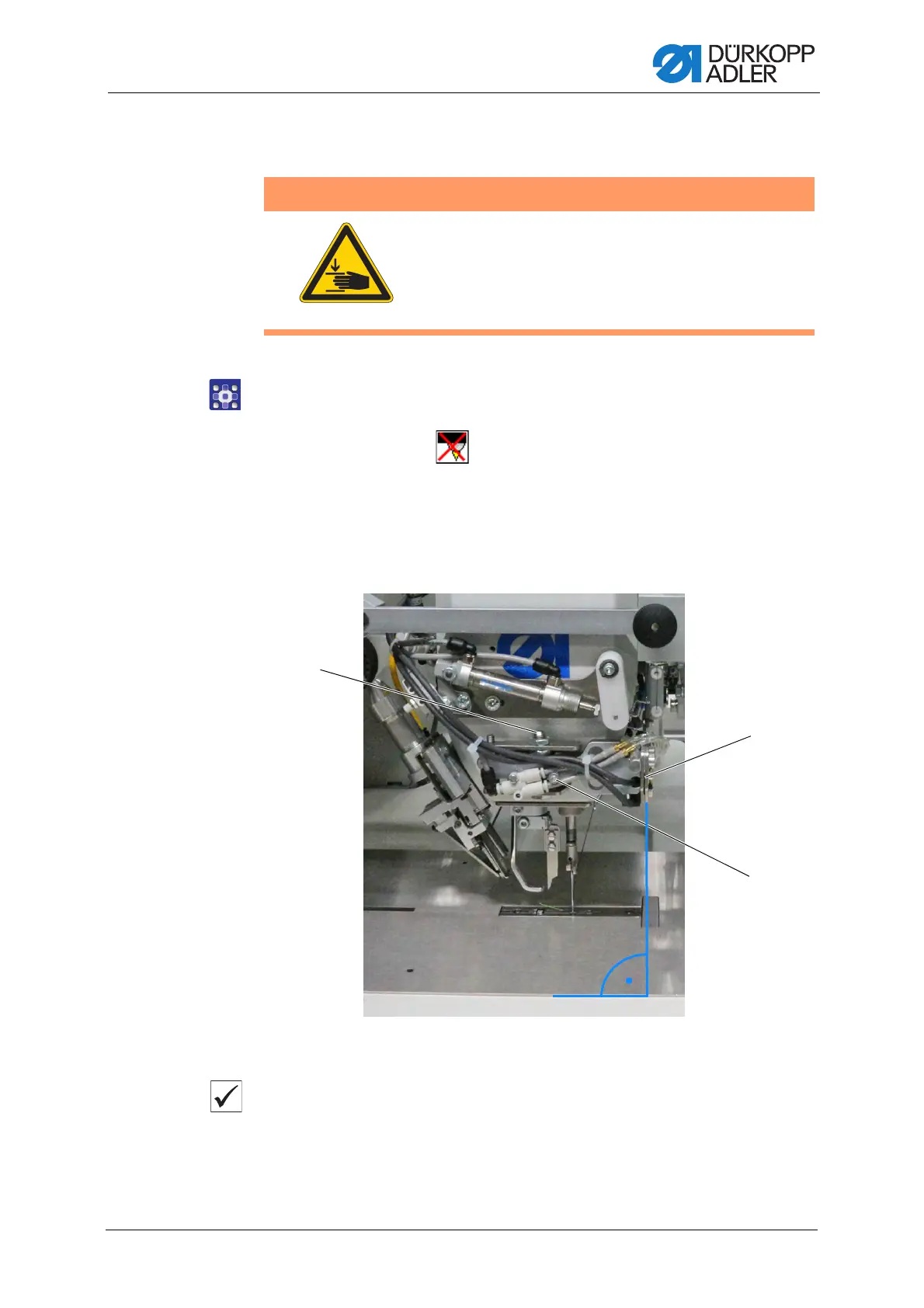

Fig. 184: Setting the light barrier holder (1)

Proper setting

The light barrier holder (3) is positioned at a right angle to the fabric sliding

plate.

The light barrier holder (3) must securely lock into place.

WARNING

Risk of injury from moving parts!

Crushing possible.

Switch off the machine before adjusting the light

barriers.

(1) - Screw

(2) - Screw

(3) - Light barrier holder

③

②

①
