Middle knife
80 Service Instructions 755 A/756 A - 00.0 - 02/2019
10.1.2 Assembling the drive motor

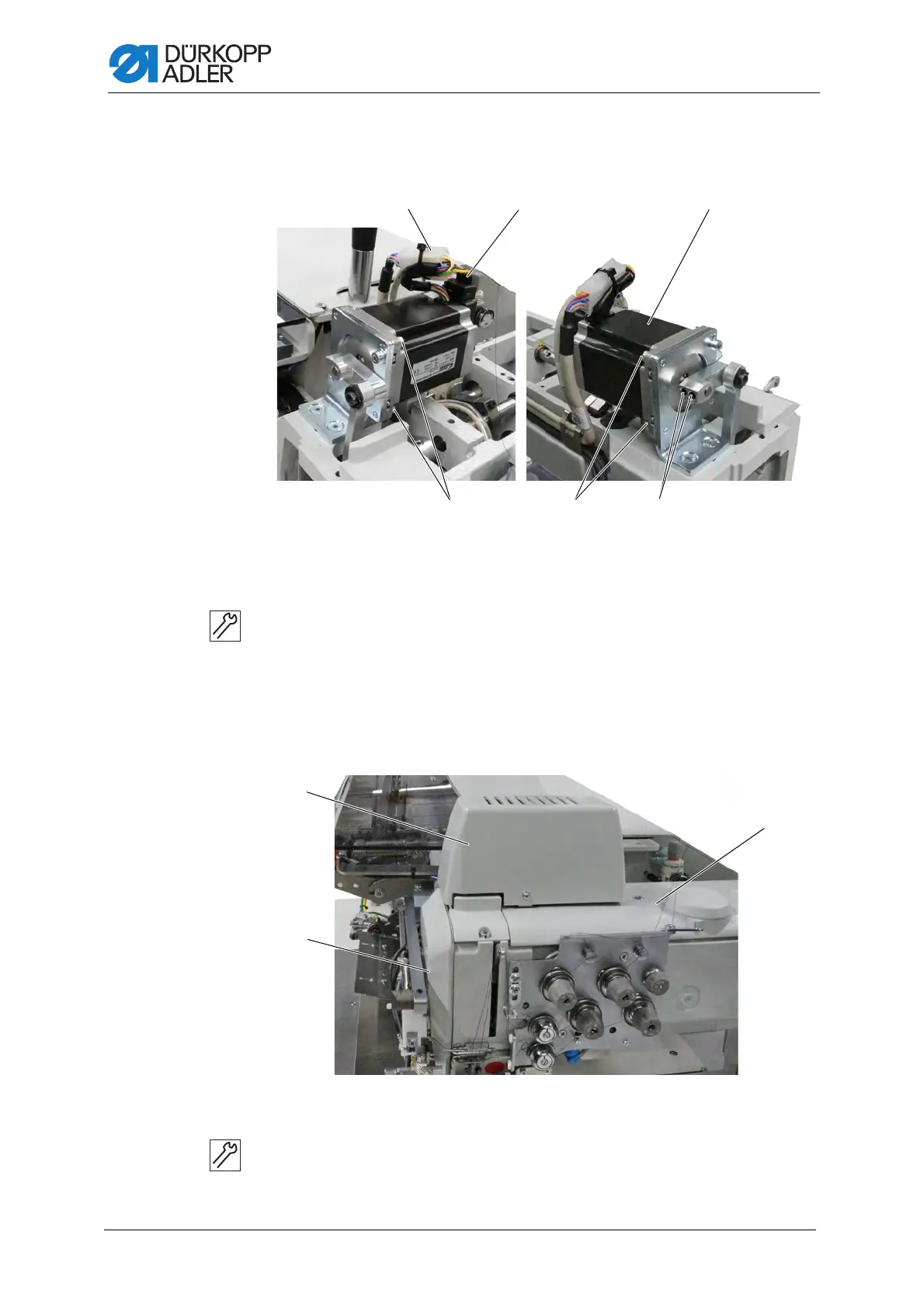

Fig. 82: Assembling the drive motor (1)
To assemble the drive motor:
1. Tighten the drive motor (4) to the motor bracket using the screws (2).
2. Tighten the screws (6) on the lever.
3. Connect motor cable (1) and encoder cable (5).
4. Check the middle knife drive for free movement.
Fig. 83: Assembling the drive motor (2)
5. Place arm cover (8), head cover (7) and motor cover (6).
(1) - Motor cable
(2) - Screws
(3) - Screws
(4) - Drive motor
(5) - Encoder cable
(6) - Motor cover
(7) - Head cover
(8) - Arm cover
