Multi-functional corner knife station
Service Instructions 755 A/756 A - 00.0 - 02/2019 181
22.6 Replacing corner knives

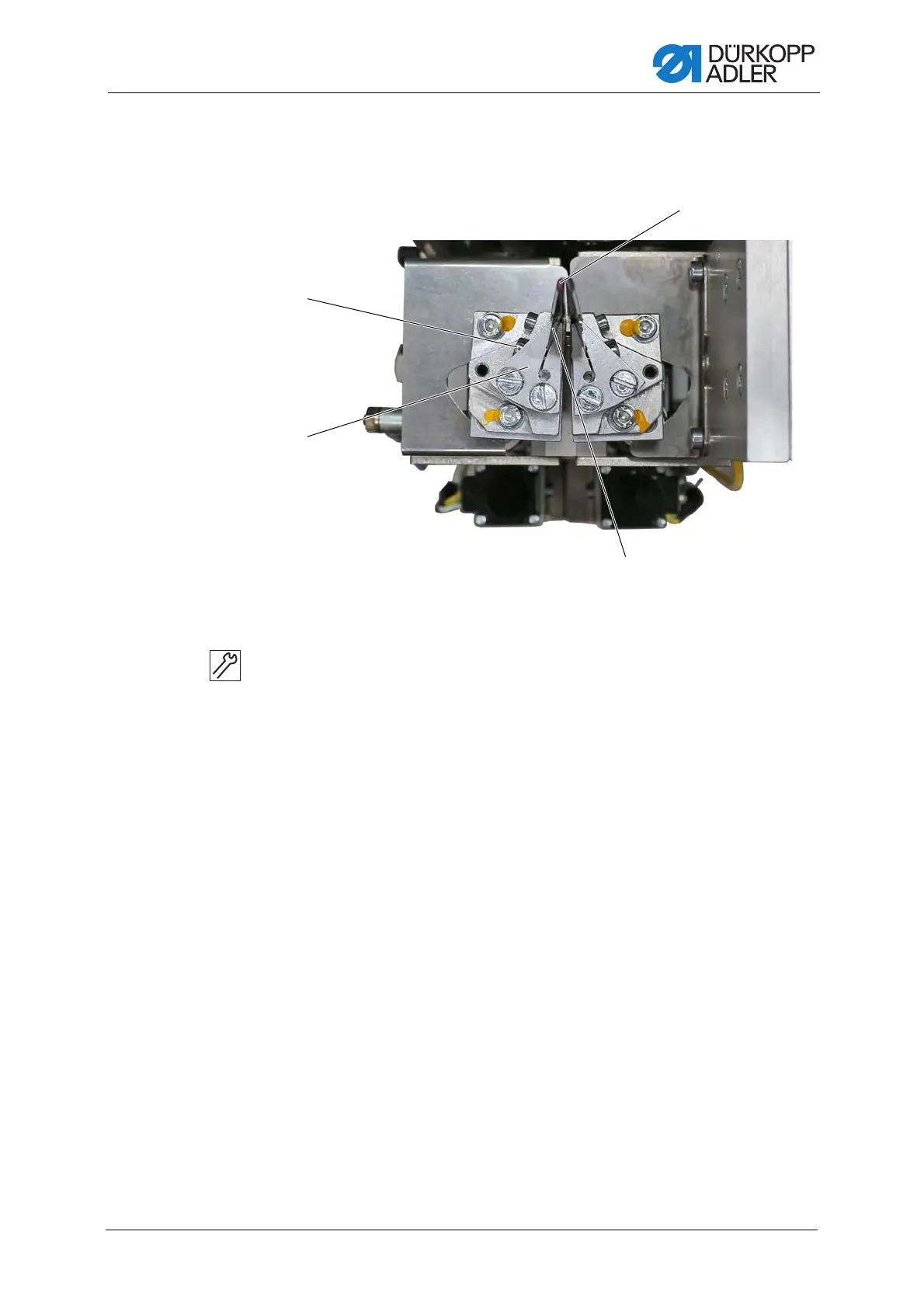

Fig. 178: Replacing corner knives
To replace the corner knives:
1. Swivel out the corner knife station.
2. Loosen the screw (1).
3. Remove the old corner knife.
4. Insert a new corner knife (3) into the corner knife holder (2).
5. Push the corner knife (3) upwards into the piercer (4).
 The tips or the knives must be situated in the depression of
the piercer (4).
6. Tighten the screw (1).
7. Swivel in the corner knife station.
(1) - Screw
(2) - Corner knife holder
(3) - Corner knife
(4) - Piercer
