Folder
Service Instructions 755 A/756 A - 00.0 - 02/2019 113
17.6 Setting the folder detection

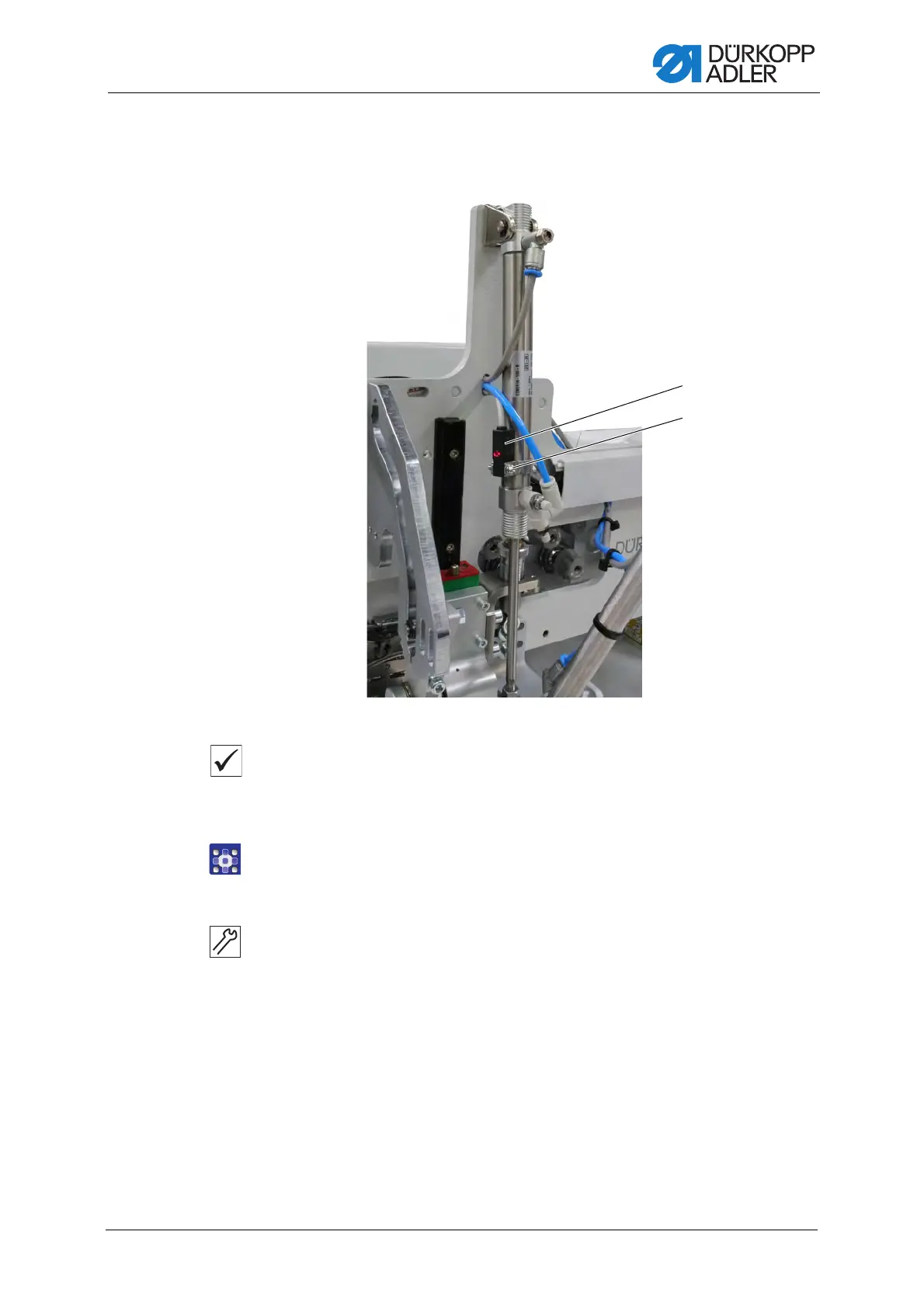

Fig. 116: Setting the folder detection
Proper setting
The switch (1) is activated when the folder has reached a distance of 5 mm
from the fabric sliding plate when moving downwards.
To set the folder detection:
1. Open the menu Service > Multi test > Multi test I/O
and select the input S9.
2. Loosen the screw (2).
3. Slide the switch (1) to change its position on the cylinder.
The switch (1) is activated when the folder has reached a distance
of 5 mm from the fabric sliding plate when moving downwards.
4. Tighten the screw (2).
(1) - Switch (2) - Screw
