DURKOPP ADLER 756 A

Endless zipper feed (optional)
212 Service Instructions 755 A/756 A - 00.0 - 02/2019
26.4.5 Setting the swivel speed of the zipper cutter

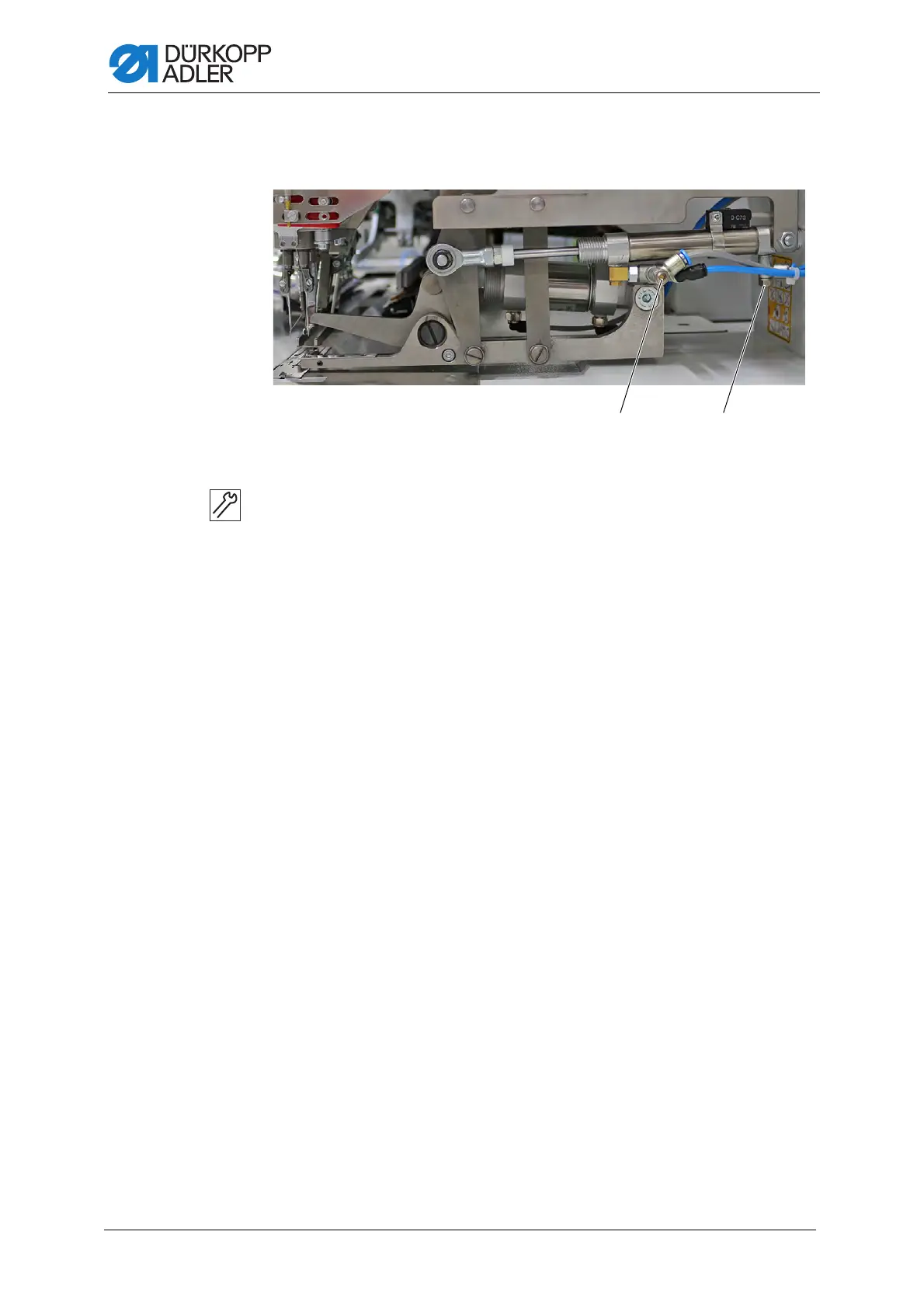

Fig. 210: Setting the swivel speed of the zipper cutter
To set the swivel speed of the zipper cutter:
1. To set the speed for swiveling out, turn the throttle valve (1).
• higher speed for swiveling out: Open the throttle valve (1) by
turning it counterclockwise
• lower speed for swiveling out: Close the throttle valve (1) by
turning it clockwise
2. To set the speed for swiveling in, turn the throttle valve (2).
• higher speed for swiveling in: Open the throttle valve (2) by
turning it counterclockwise
• lower speed for swiveling in: Close the throttle valve (2) by
turning it clockwise
 The swivel movement should be swift, but not abrupt.
(1) - Throttle valve (2) - Throttle valve
①②
