Disassembling and assembling the machine head
Service Instructions 755 A/756 A - 00.0 - 02/2019 25
5 Disassembling and assembling the machine head
5.1 Disassembling the machine head
It is possible to remove the machine head prior to repairs or for a quick and
easy switch to a different needle distance. This requires that the transport
carriage be in its rear position.

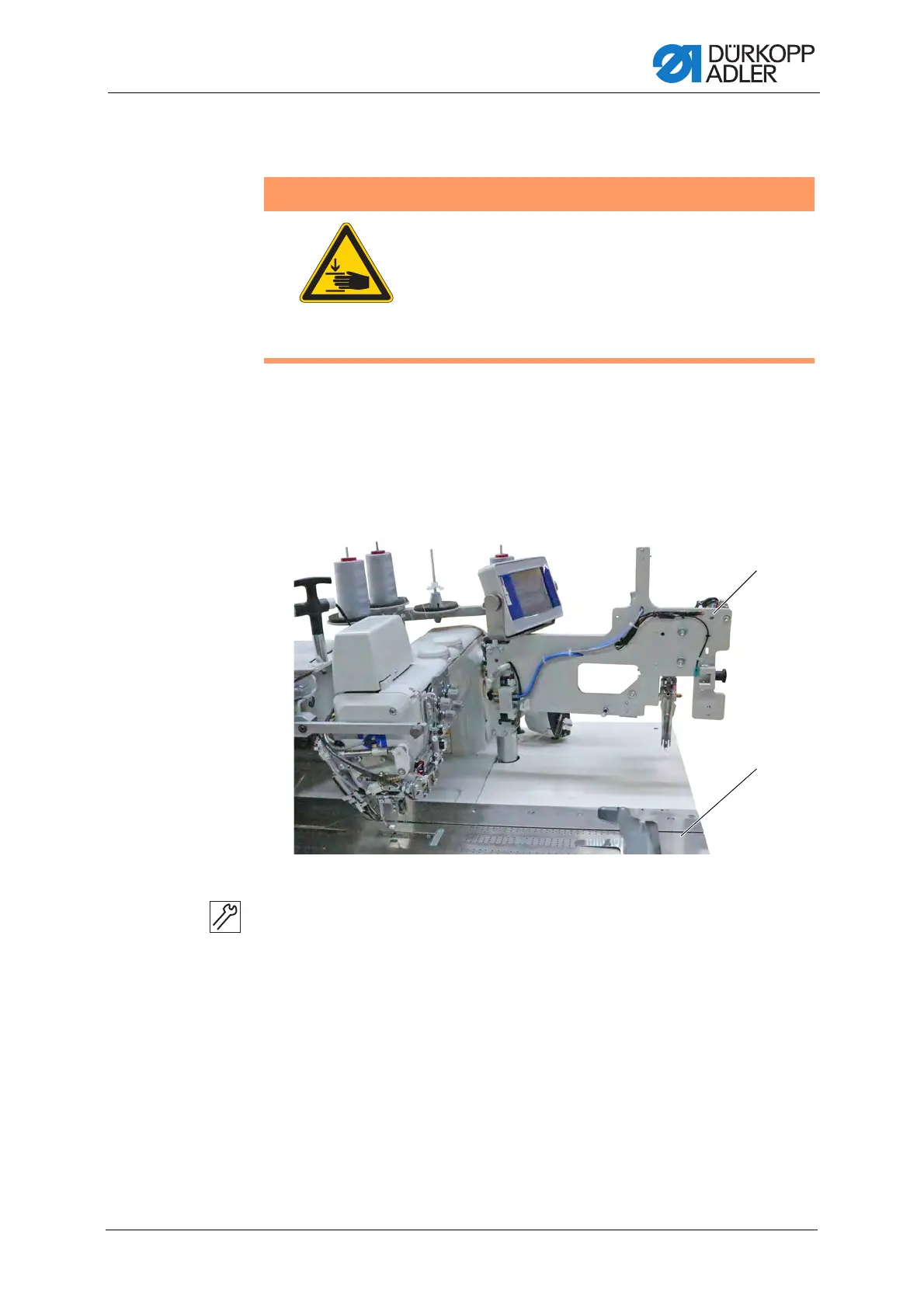

Fig. 11: Disassembling the machine head (1)
To remove the machine head:
1. Swivel the folding station (1) out by 90°.
2. Remove the fabric sliding plate (2).
3. Disconnect the electrical and pneumatic connection to the machine
head.
WARNING
Risk of injury from moving parts!
Crushing possible.
Do not reach into the tabletop cutout when the
machine head is swiveled up.
Switch off the machine before disassembling and
assembling the machine head.
(1) - Folding station (2) - Fabric sliding plate
