6.2.7 Assembling the needle bar linkage
Assembling the needle bars

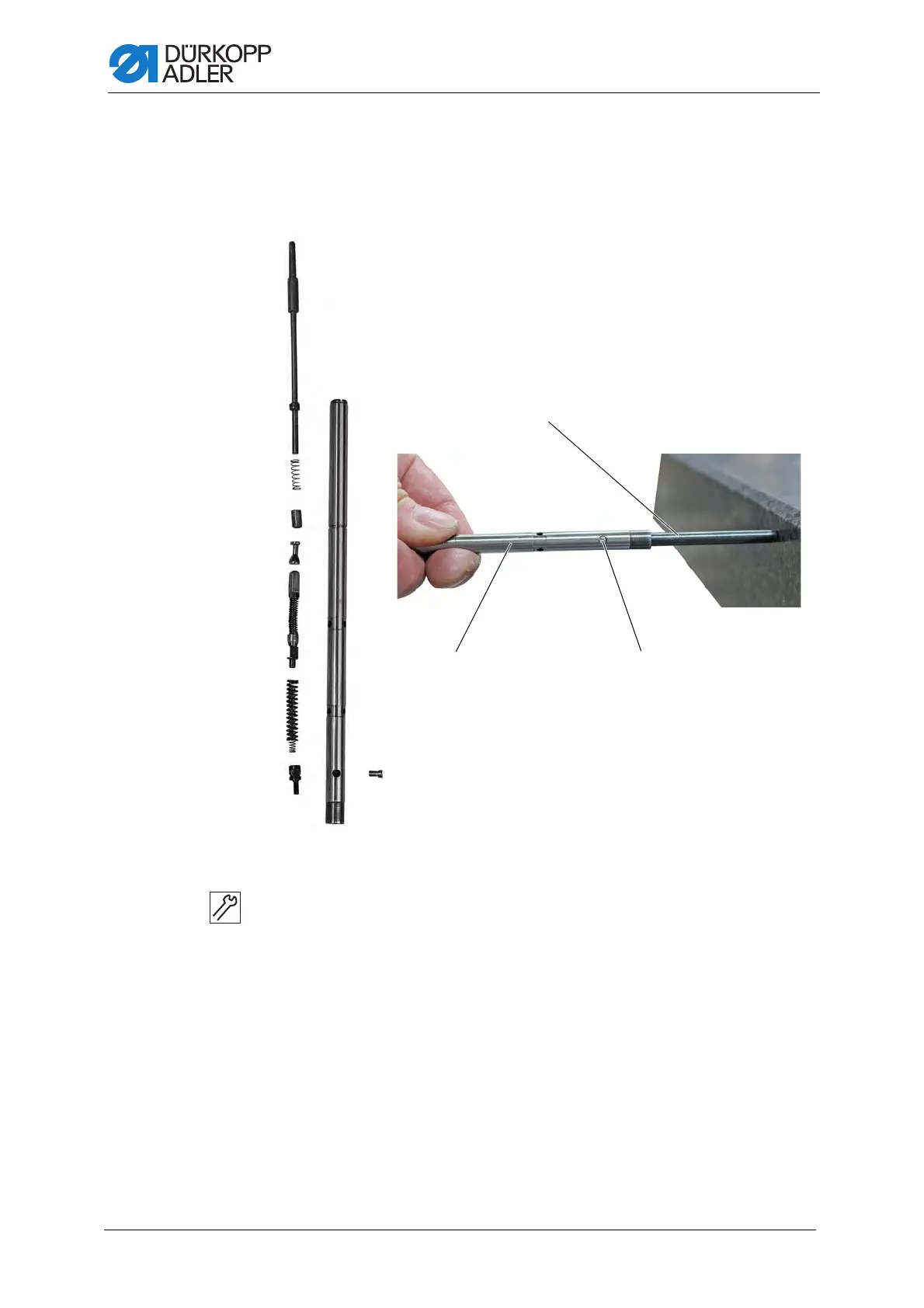

Fig. 54: Assembling the needle bar linkage (1)
To assemble the needle bars:
1. Slide the inner parts of the needle bar (2) into the needle bar (2) following
the order shown above.
2. Insert a suitable pin (1) into the needle holder slot found on the
underside of the needle bar (2).
3. Fix the needle bar (2) including pin (1) in place on a solid surface and
press it in until you can screw in screw (3).
4. Tighten the screw (3).
(1) - Pin
(2) - Needle bar
(3) - Screw
