Hook

72 Service Instructions 755 A/756 A - 00.0 - 02/2019

7.5.1 Setting the timing for opening

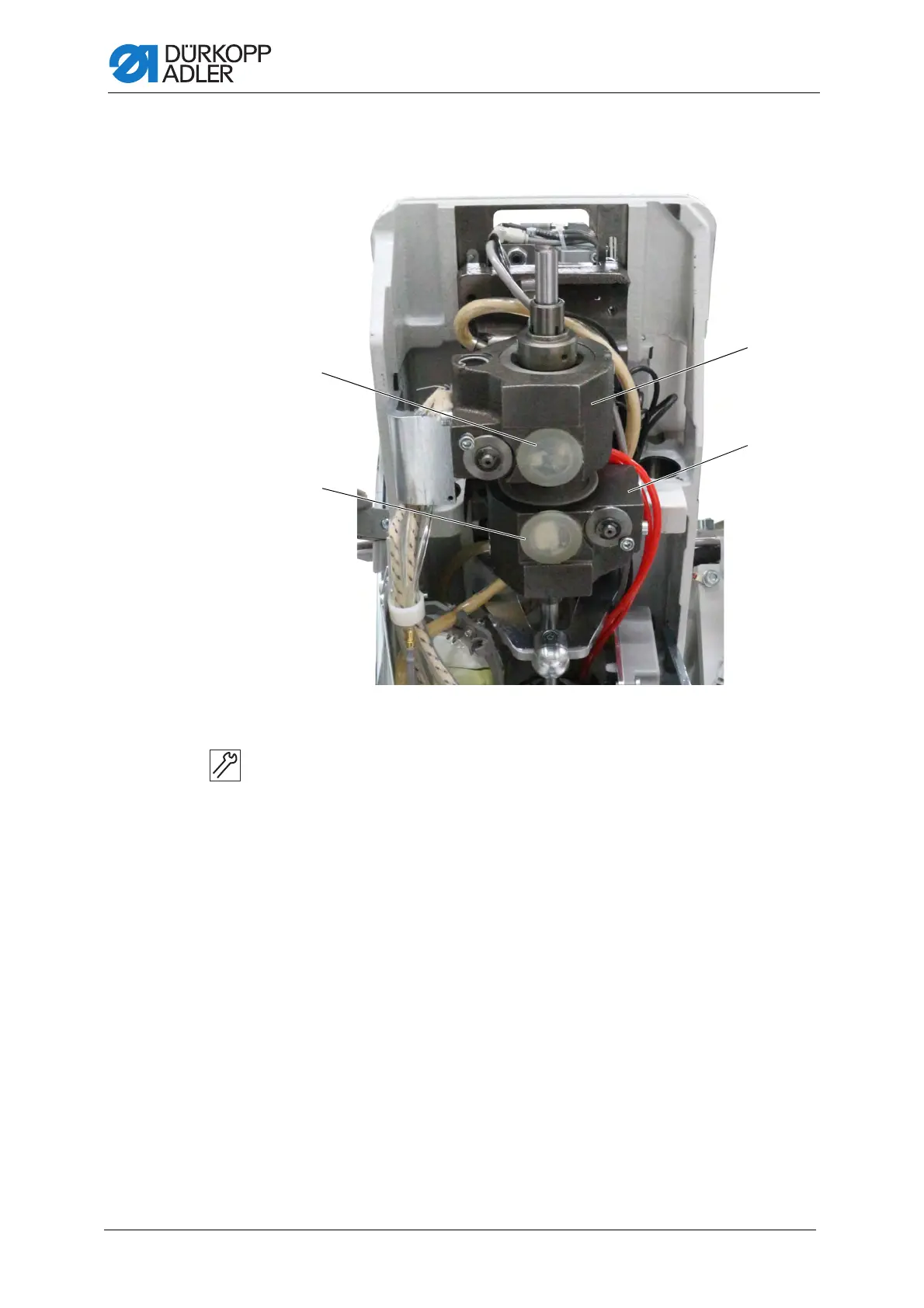

Fig. 72: Setting the timing for opening (1)

To set the timing for opening:

1. Swivel up the machine head ( p. 16).

2. Remove plugs (1) and (2) below hook supports (3) and (4).

(1) - Plug

(2) - Plug

(3) - Right hook support

(4) - Left hook support

③

④

①

②
