Middle knife

Service Instructions 755 A/756 A - 00.0 - 02/2019 79

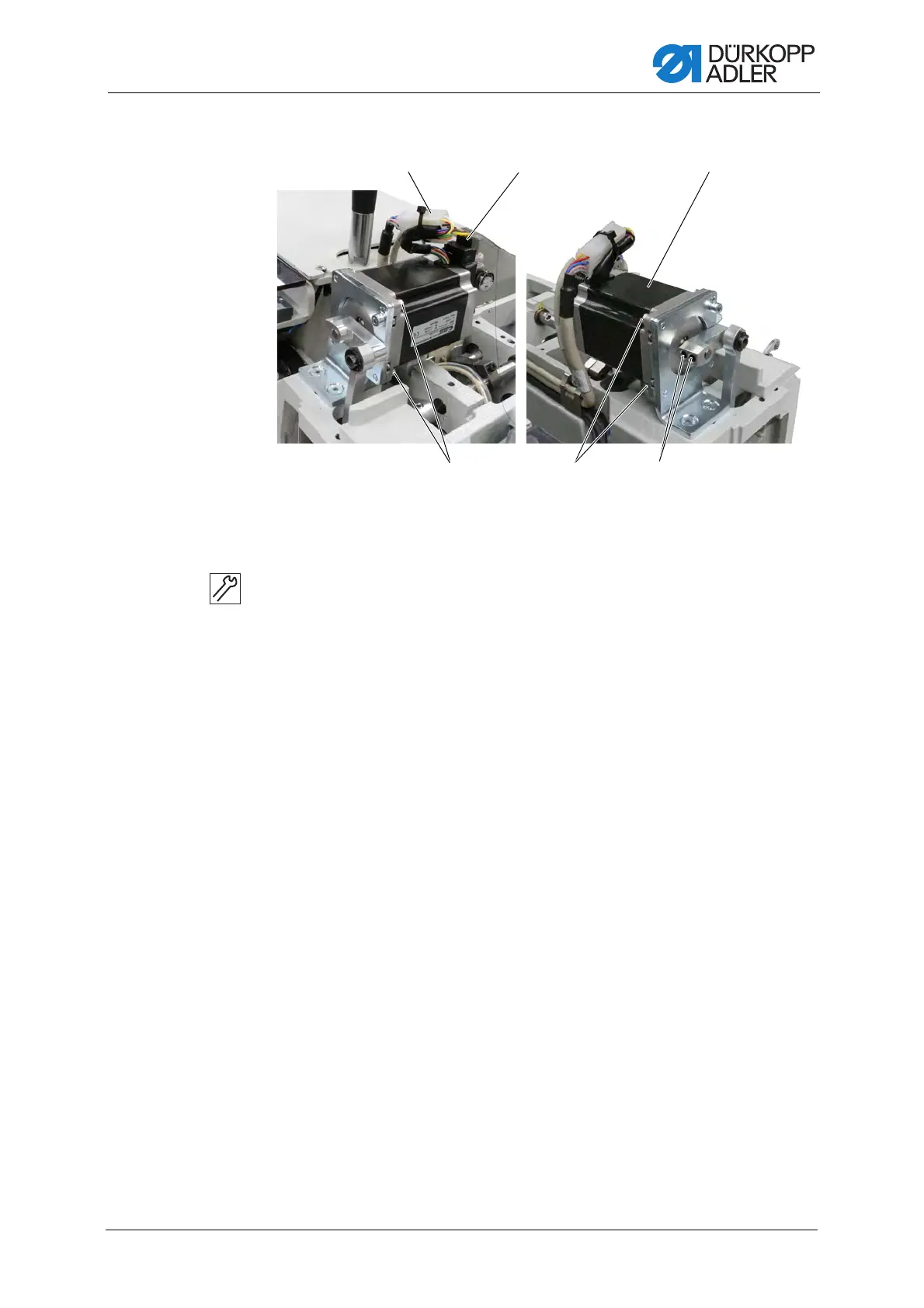

Fig. 81: Disassembling the drive motor (2)

2. Disconnect motor cable (4) and encoder cable (8).

3. Loosen the screws (5) on the motor bracket.

4. Loosen the screws (6) on the lever.

5. Remove the drive motor (7) through the side.

(4) - Motor cable

(5) - Screws

(6) - Screws

(7) - Drive motor

(8) - Encoder cable
