6.5 Inserting the Underthread Bobbin

Caution Risk of Injury !

Turn the main switch off.

Insert the underthread bobbin only with the sewing

machine turned off.

Removing the bobbin

–

Lift the bobbin case retainer 1.

–

Remove hook base 2 with bobbin.

–

Remove the empty bobbin from hook base 2.

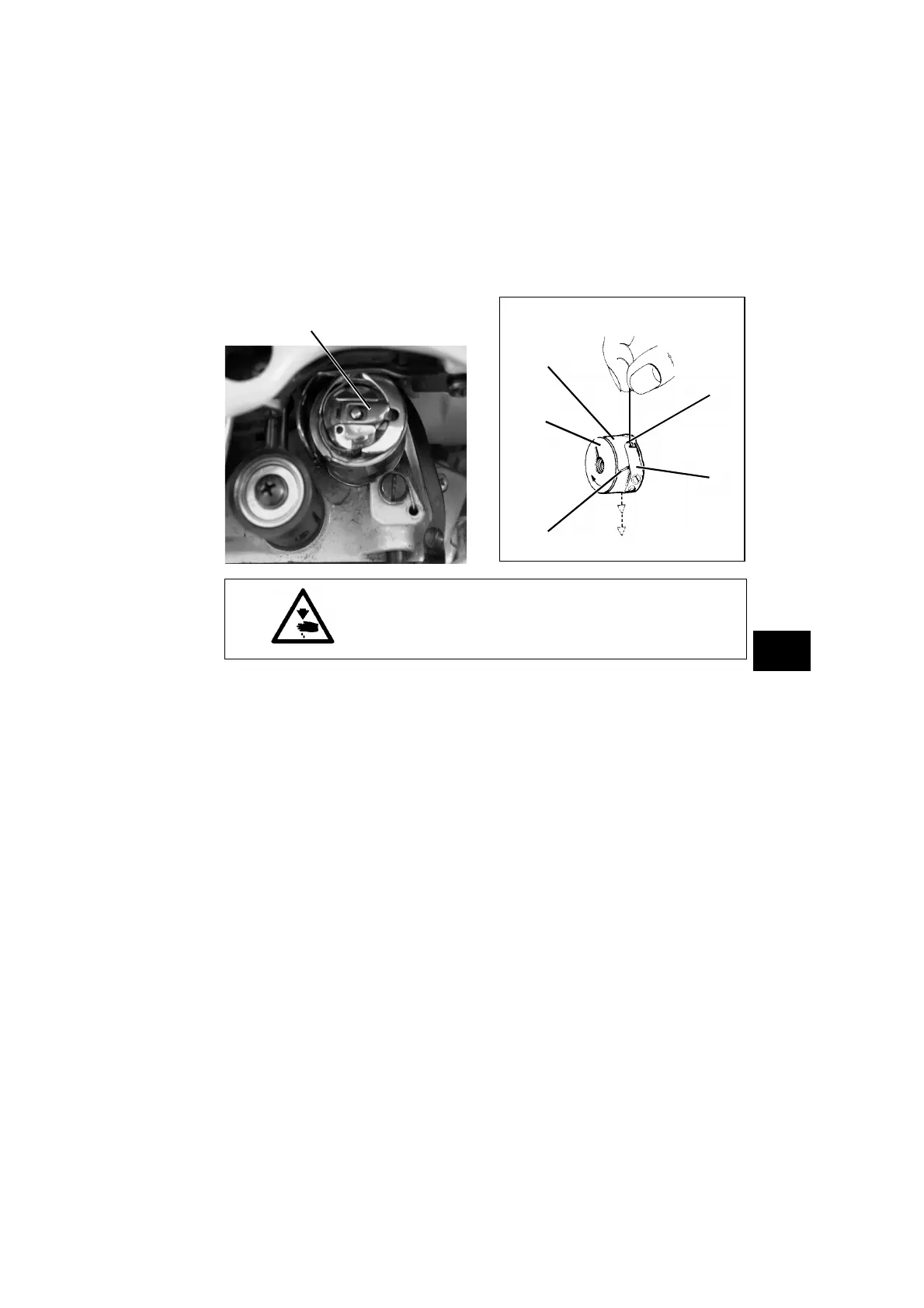

Inserting a full bobbin

–

Place full bobbin 3 into hook base 2.

–

Pull the underthread through the slit 4 under tension spring 6 and into the drilled

hole 5.

–

Pull the underthread approx. 5 cm out of hook base 2.

When the thread is pulled off, the bobbin must turn in the direction of the arrow.

–

Insert the hook base 2 into the hook again.

–

Close the bobbin case retainer 1.
