8.1.2 Display Functions
The display is only active when no OC-TOP control panel is connected.

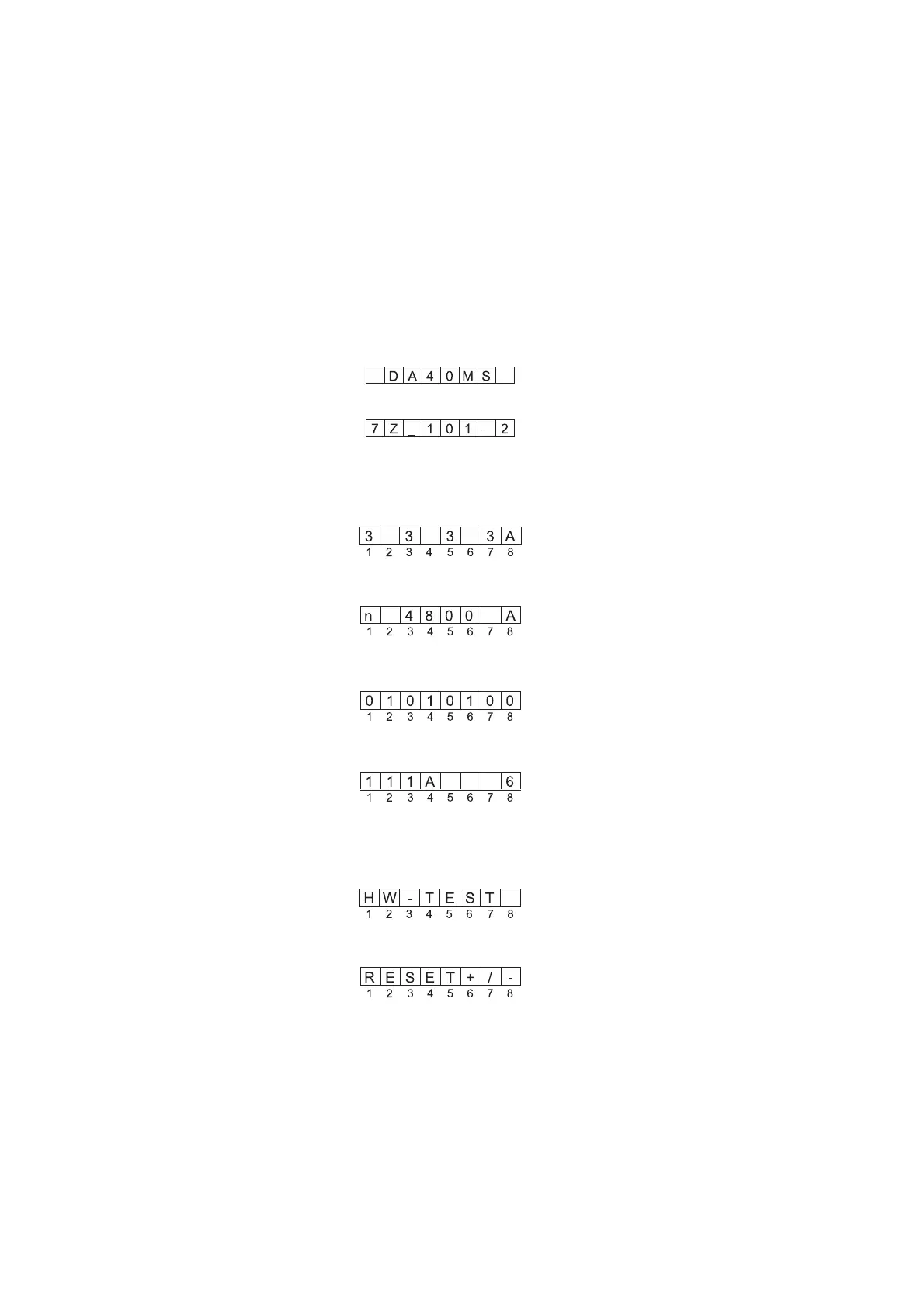

The display has 8 different types of display:
After the turning-on of the mains switch the controls type is shown for approx. 1 sec.
Then the software status is shown briefly.
4 variable types of display are available for sewing and programming. The change-over
occurs via the M+ or M- key, when sewing is not taking place.
Display mode 1
: Number of bartack stitches
See Chapter 8.1.3
Display mode 2:
Maximum speed or current speed
See Chapter 8.1.4 and 8.1.5
Display mode 3
: Sewing functions
See Chapter 8.1.6
Display mode 4
: Parameter and parameter value
See Chapter 8.1.7
Two further display types are available for the hardware test and the master reset:
Hardware test display
See Operating Instructions Mini Stop Type DA40MS02 (in the accessories pack)
Master reset display
See Chapter 8.1.13
50
