DURKOPP ADLER Class 271 - Connection Sockets on the DA220 C and DA40 MS02 Controls; Connecting the DA220 C Controls; Connecting the DA40 MS02 Controls

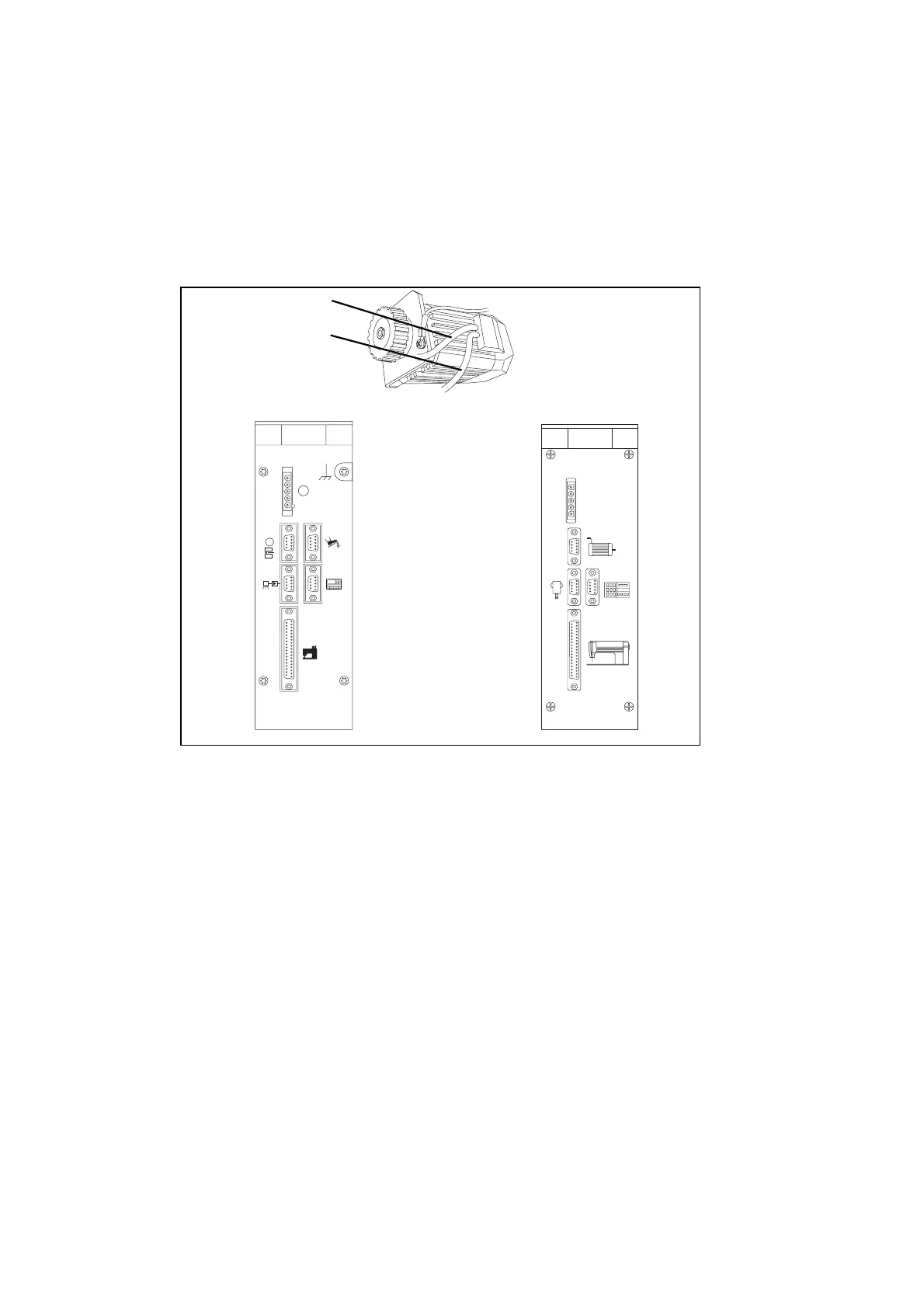

6.4 Connection Sockets on the DA220C and DA40MS02 Controls
6.5 Connecting the DA220C Controls
–
Insert the lead from the controller (pedal) into socket B80 of the controls.
–
Insert the lead from the motor sensor 2 into socket B2 of the controls.
–
Insert the lead 1 from the motor into socket B41 of the controls.
–
Insert the lead to the sewing machine into socket A of the controls.
–
Lay all leads through the cable duct.
–
Insert the lead from the control panel (if present) into socket B776.
6.6 Connecting the DA40MS02 Controls
–
Insert the lead from the controller (pedal) into socket X3 of the controls.
–
Insert the lead from the motor sensor 2 into socket X2 of the controls.
–
Insert the lead 1 from the motor into socket X1 of the controls.
–
Lay all leads through the cable duct.
–
Insert the lead from the control panel (if present) into socket X4.
1
2
B776
V 8 . .
B18
L S M ...
B2
M
B80
EB...
B41
M
A
X1
Motor
X2
X4
X3
A
20
