3 Tests and Diagnostics
PORTÉGÉ X30W-J, dynabook V*/VZ*/VC* Series Maintenance Manual (960-941) [CONFIDENTIAL] 3-23
3.13.2 Check of the antenna connection

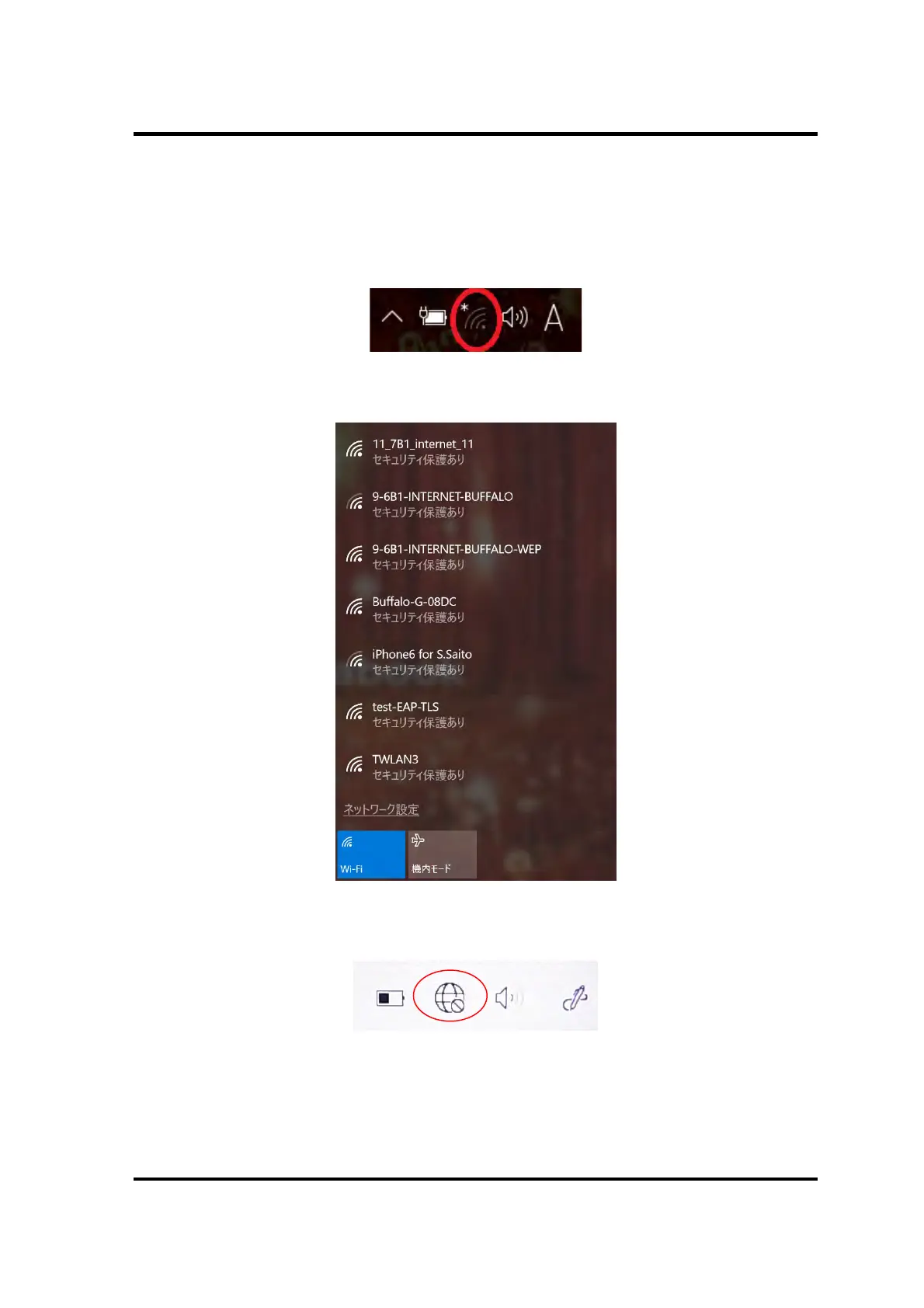

Confirm that the icon for wireless LAN appears at the lower right of the screen under the
circumstances the wireless communication function is available.
Click the icon. If the computer can find any AP (Access Point), the network names like
below will appear. It shows the antenna cables are surely connected to the wireless module.
If the antenna cables are not connected to the wireless module or no available AP is found,
the following icon will appear.
In the case of no-antenna connection
If AP should be ready but no AP point appears, any problem might occur on the wireless
module or on the antenna connection.
