1 Hardware Overview
PORTÉGÉ X30W-J, dynabook V*/VZ*/VC* Series Maintenance Manual (960-941) [CONFIDENTIAL] 1-1
1.1 Features
This model belongs to a convertible type PC and realizes 3 styles, clamshell, flat and tablet,
at use.
The following shows each unit position and system unit configuration of this model.
 Front view

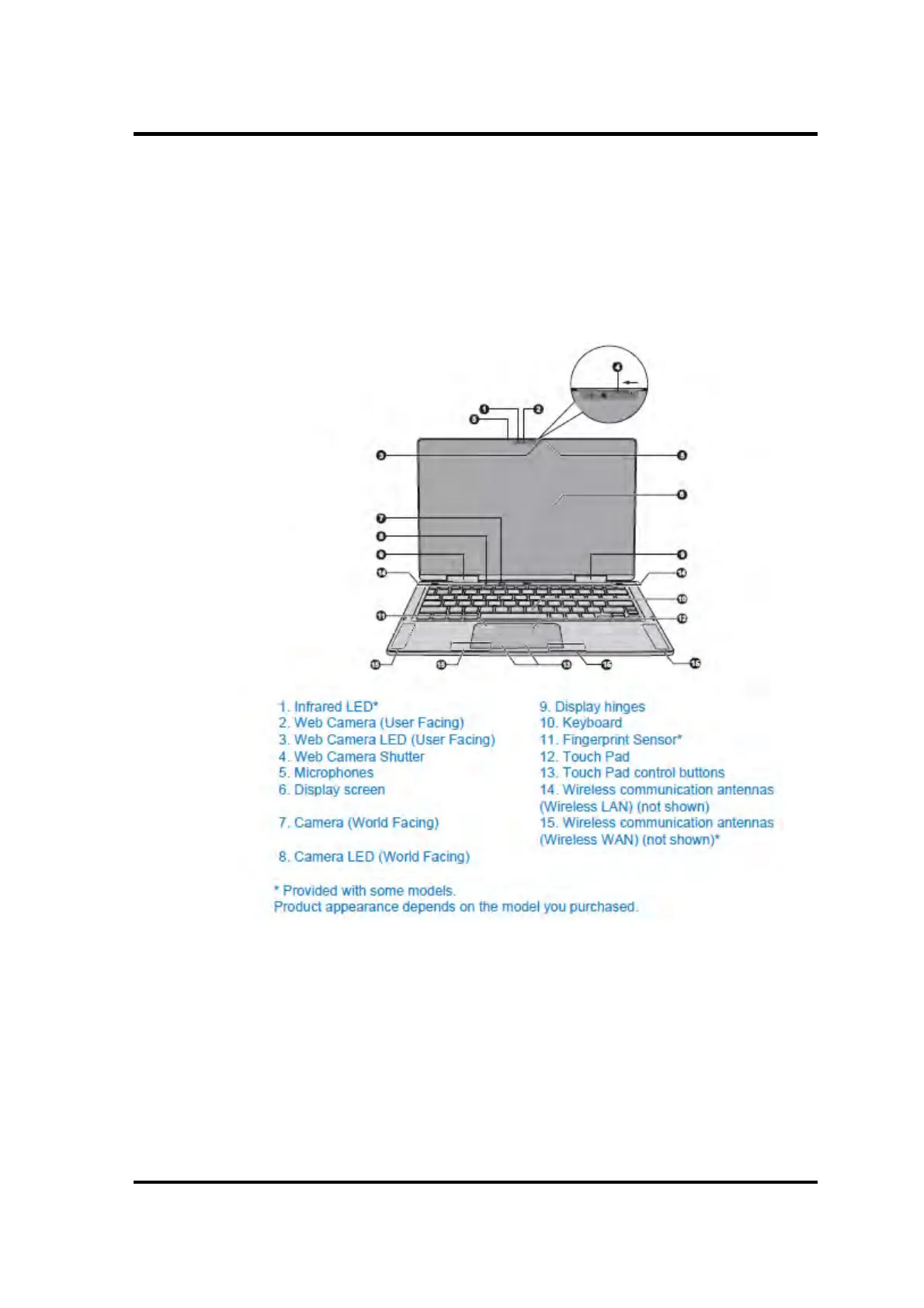

Figure 1-1 Appearance and each unit position (1)
