1 Hardware Overview
1-12 [CONFIDENTIAL] PORTÉGÉ X30W-J, dynabook V*/VZ*/VC* Series Maintenance Manual (960-941)
1.3 Keyboard
The keyboard is connected to the connector on the system board with the membrane and
controlled by the keyboard controller.
The followings show the layout of the US keyboard and specifications of UK/JP/US
keyboards. As for the layout of UK/JP keyboards, see Appendix E. As for the key matrix, see
Appendix D.

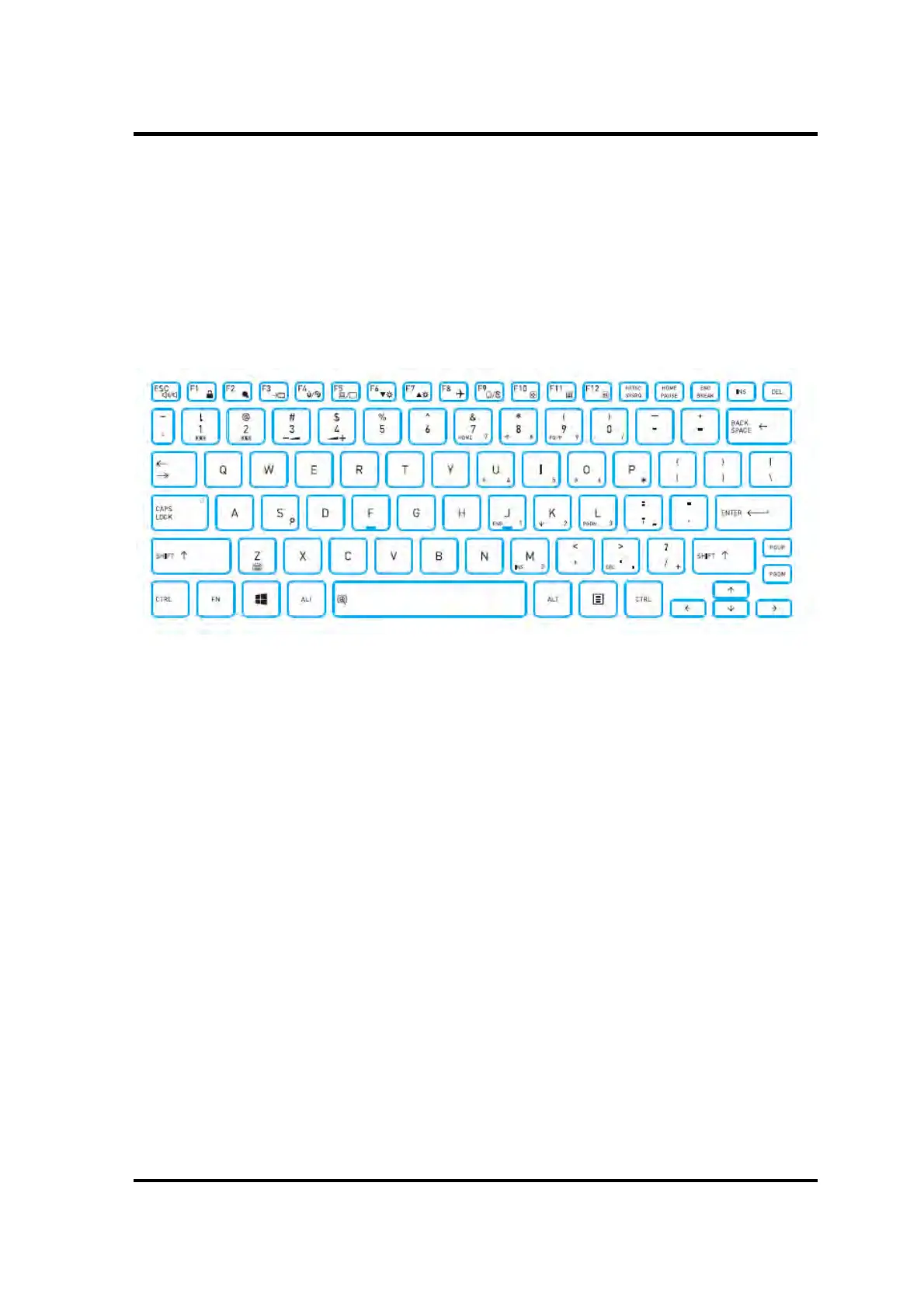

Figure 1-4 US keyboard layout
