dynabook PORTEGE X30W-J Maintenance Manual
5
of 1
of 1 rating
282 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3 Tests and Diagnostics
3-40
[CO
NFIDENTIAL]
PORTÉGÉ X30W-J,
dynabook V*/VZ*/VC* Series Maintenance Manual (960-941)

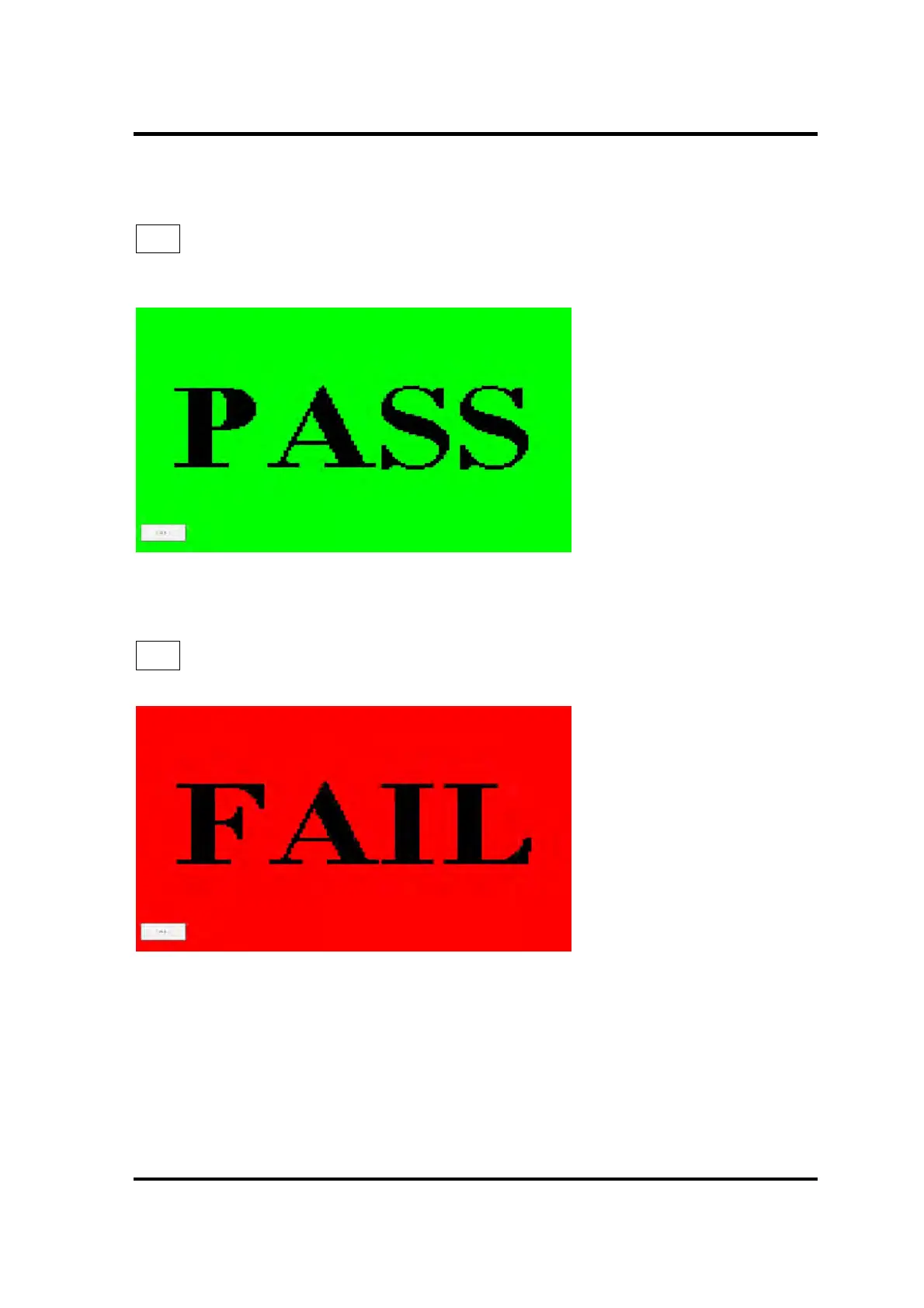

3.17.4 Result
PASS
If this test ends successfully, “PASS” is displayed.
Tap “OK” button to back to the start screen.
FAIL
If any problem occurred, “FAIL” will be displayed.
Tap “OK” button to back to the start screen.
133
135
Table of Contents
Table of Contents
7
Figures
14
Figure 1-1 Appearance and each Unit Position
15
Figure 1-2 Board Connection Diagram
18
Figure 1-3 System Block Diagram
19
Table 1-1 M.2 Pcie SSD Specifications
23
Figure 1-4 US Keyboard Layout
26
Table 1-2 Keyboard Specifications
27
Figure 1-5 LCD Module
29
Table 1-3 LCD Module Specifications
29
Table 1-4 Web Camera Module Specifications (Front)
30
Table 1-5 Web Camera Module Specifications (Rear)
30
Table 1-6 Battery Specifications
32
Table 1-7 Time Required for Charges
33
Table 1-8 Data Preservation Time
33
Table 1-9 AC Adapter Specifications
34
Table 1-10 Stylus Pen Specifications
35
Table 1-11 USB Type-C Adapter Specifications
38
Chapter 2 Troubleshooting Procedures
39
Troubleshooting Procedures
40
Troubleshooting
43
Troubleshooting Flowchart
45
Power Supply Troubleshooting
50
Procedure 1 Power Status Check
50
Procedure 2 Error Code Check
50
Procedure 3 Connection Check
50
Procedure 4 Charging Check
50
Procedure 5 Replacement Check
50
System Board Troubleshooting
58
Procedure 1 Message Check
59
Procedure 2 Diagnostic Test Program Execution Check
60
Procedure3 Replacement Check
60
USB Troubleshooting
61
Procedure 1 Reading Check of Data
61
Procedure 2 Replacement Check of USB Unit
61
Procedure 3 Replacement Check of System Board
61
SSD Troubleshooting
63
Procedure 1 Diagnostic Test Program Execution Check
63
Procedure 2 Connection Check
63
Procedure 3 Replacement Check
64
Keyboard Troubleshooting
65
Procedure 1 Diagnostic Test Program Execution Check and Check on Windows
65
Procedure 2 Connector Check and Replacement Check
65
Touch Pad (Click Pad) Troubleshooting
66
Procedure 1 Diagnostic Test Program Execution Check
66
Procedure 2 Connector Check
66
Procedure 3 Replacement Check
67
Display (LCD, Touch Panel) Troubleshooting
68
Procedure 1 Check on Windows os
68
Optical Disk Drive Troubleshooting: Not Used
70
Procedure 1 Diagnostic Test Program Execution Check
70
LAN Troubleshooting: Not Used
71
Procedure 2 Connector Check and Replacement Check
71
Procedure 1 Check on Windows
71
Wireless LAN +Bluetooth Troubleshooting
72
Procedure 1 Module/Antennas' Check
72
Procedure 2 Connection Check
72
Procedure 3 Replacement Check
73
LTE Troubleshooting
74
Procedure 1 Module Installation Check
74
Procedure 2 Antenna/Connector Check
74
Procedure 3 Replacement Check
74
Wigig Troubleshooting: Not Used
77
Procedure 1 Module Installation Check
77
Procedure 2 Antennas/Connectors Check
77
Procedure 3 Replacement Check
77
Sound Troubleshooting
79
Memory Media (SD Card) Slot Troubleshooting
81
Procedure 1 Check on Windows os
81
Procedure 2 Connector Check and Replacement Check
81
Fingerprint Sensor Troubleshooting
82
Procedure 1 Setting Windows Sign-In Password
82
Procedure 2 Registration of Pin and Fingerprint
82
Procedure 3 Authentication of Fingerprint
83
Web Camera (Front/Rear) Troubleshooting
85
Procedure 1 Check on Windows os
85
Procedure 2 Connector Check and Replacement Check
85
HDMI Port Troubleshooting
86
Procedure 1 Check on HDMI TV
86
Procedure 2 Connector Check and Replacement Check
87
USB Type-C Adapter Troubleshooting
88
USB Type-C Port (Power Delivery Charging)
88
RGB Port
89
LAN Port
90
Chapter 3 Tests and Diagnostics
91
Table of Contents
93
Test Program for Maintenance
95
Check and Update of ME FW Information
95
Check of Hardware Information
95
Check and Update of BIOS Information
95
Check and Update of EC/KBC Information
95
Diagnostic Test Programs
95
Setting of Battery off Mode
96
How to Execute the Test Program
97
Entry of the DMI Information
100
Heatrun Test
102
Main Test Menu
103
Memory Test
106
Hard Disk/Ssd Test
107
Keyboard Test
110
LCD Panel Test
111
Battery Charge Test
113
FAN Test
114
Log Utility
115
Wireless Module Test
116
Check of the Wireless Module
116
Check of the Antenna Connection
117
LTE Test
118
Sound Test
119
Setup
120
Function Description
120
Accessing to the SETUP Program
123
Sensor Calibration Tool
128
Outline
128
Preparation
129
Start and Test Procedure
130
Result
134
Log
135
How to Terminate this Tool
137
Table of Contents
141
Chapter 4 Contents
143
Overview
143
SIM Card
155
Micro SD Card
156
Base Assy
157
Battery Pack
162
Speaker
165
Other manuals for dynabook PORTEGE X30W-J
User Manual
133 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the dynabook PORTEGE X30W-J and is the answer not in the manual?
Ask a question
dynabook PORTEGE X30W-J Specifications
General
Brand
dynabook
Model
PORTEGE X30W-J
Category
Laptop
Language
English
Related product manuals
dynabook PORTEGE X30W-K Series
168 pages
dynabook Portege X30L-G
120 pages
dynabook Portege X30L-K Series
39 pages
dynabook PORTEGE X40L-K
123 pages
dynabook PORTEGE X40-J Series
159 pages
dynabook Portege X40L-K Series
33 pages
dynabook Portege A30-E
128 pages
dynabook TECRA A40-K
141 pages
dynabook EX3 L-K Series
145 pages
dynabook TECRA A40-J Series
165 pages
dynabook SATELLITE PRO C50-H
143 pages
dynabook Satellite Pro C50-J
