4 Replacement Procedures 4.4 BASE ASSY
4-18 [CONFIDENTIAL] PORTÉGÉ X30W-J, dynabook V*/VZ*/VC* Series Maintenance Manual (960-941)
Installing the BASE ASSY

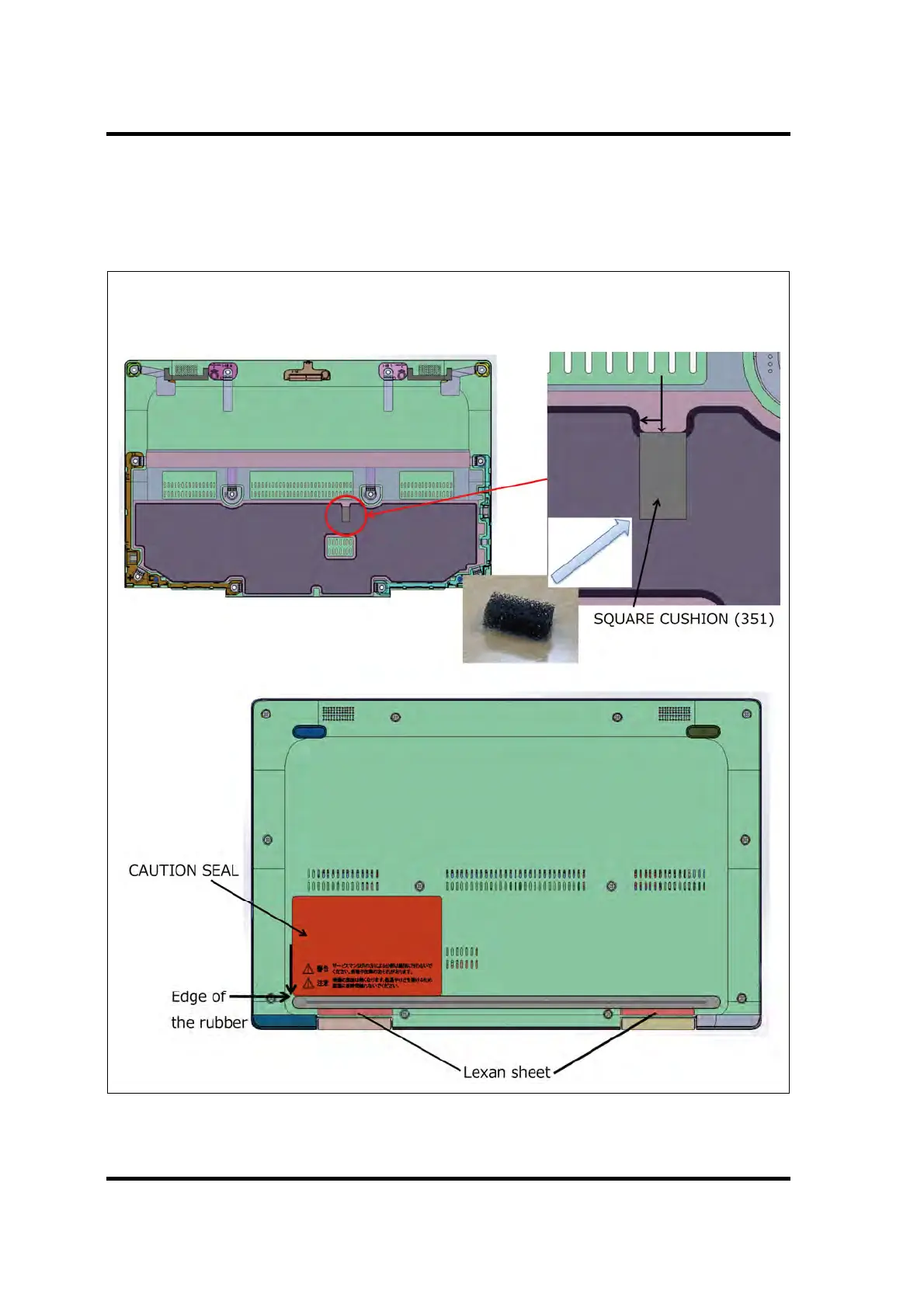

To install the BASE ASSY or BASE LTE ASSY, follow the steps below and refer to Figure
4-3 and 4-4.
NOTE: When replacing the BASE ASSY or BASE LTE ASSY with a new one, stick new
SQUARE CUSHION (351) and CAUTION SEAL to the BASE ASSY or BASE
LTE ASSY in place.
