2.5.6 ECU1 Mode (ECU mouse control) – Standard
ECU1 Mode gives access to the first 6 channels of an Environmental Control Unit
Module (ECU) that has been setup as ECU1. These channels are generally used for
mouse or communications control. For access to channels 7 and 8 of ECU1 use the
ECU2 menu.
This mode is only available if the ECU Mouse Mode Menu parameter (see 4.2.1.9) is set
to 'Yes' and an ECU Module is detected in the system.
Notes:
Channel operation is not latched in ECU1 Mode. The channel
will return to the 'off' state when the joystick is returned to neutral.
Button
Function
Left Indicator
>2s: Side lights
Right Indicator
>2s: Hazard lights
I
II
Channel 5
Channel 6
The joystick operates
ECU1 channel 1to 4
Next
Accessory
Previous
Accessory
The function keys operate ECU1 channel 5 and 6.
Green:
Channel active
Blue: Channel
not active

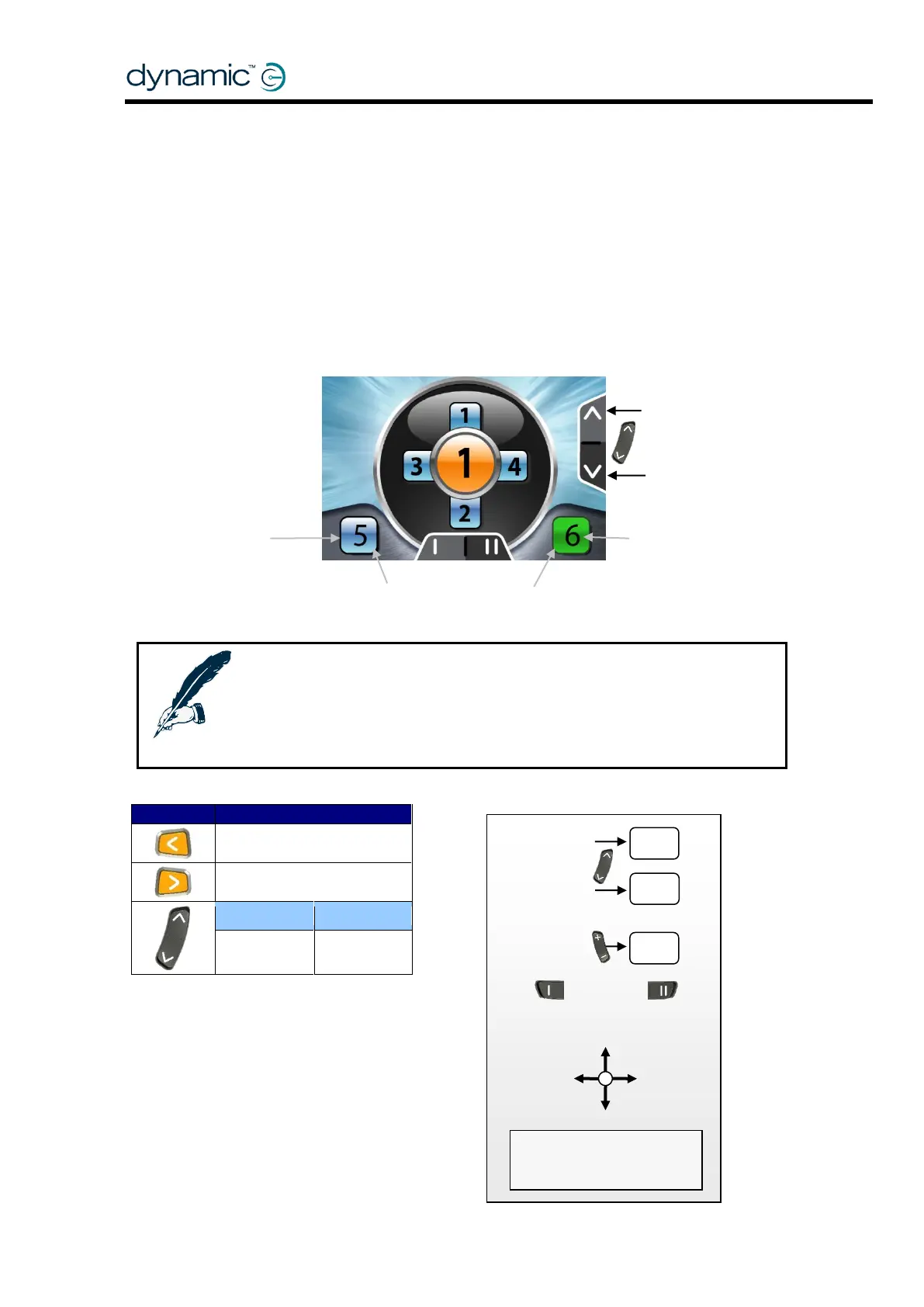

ECU1 Mode Menu Map
Next
Acc
Prev
Acc
Rotate the orientation of
the joystick with Accessory
Menu Navigation (4.2.1.6).
Channel 1
Channel 2
Channel 3
Channel 4
Drive
Channel 5
Channel 6
