Dynamic DX2-REM550 - Mounting

42 GBK60348: Issue 3

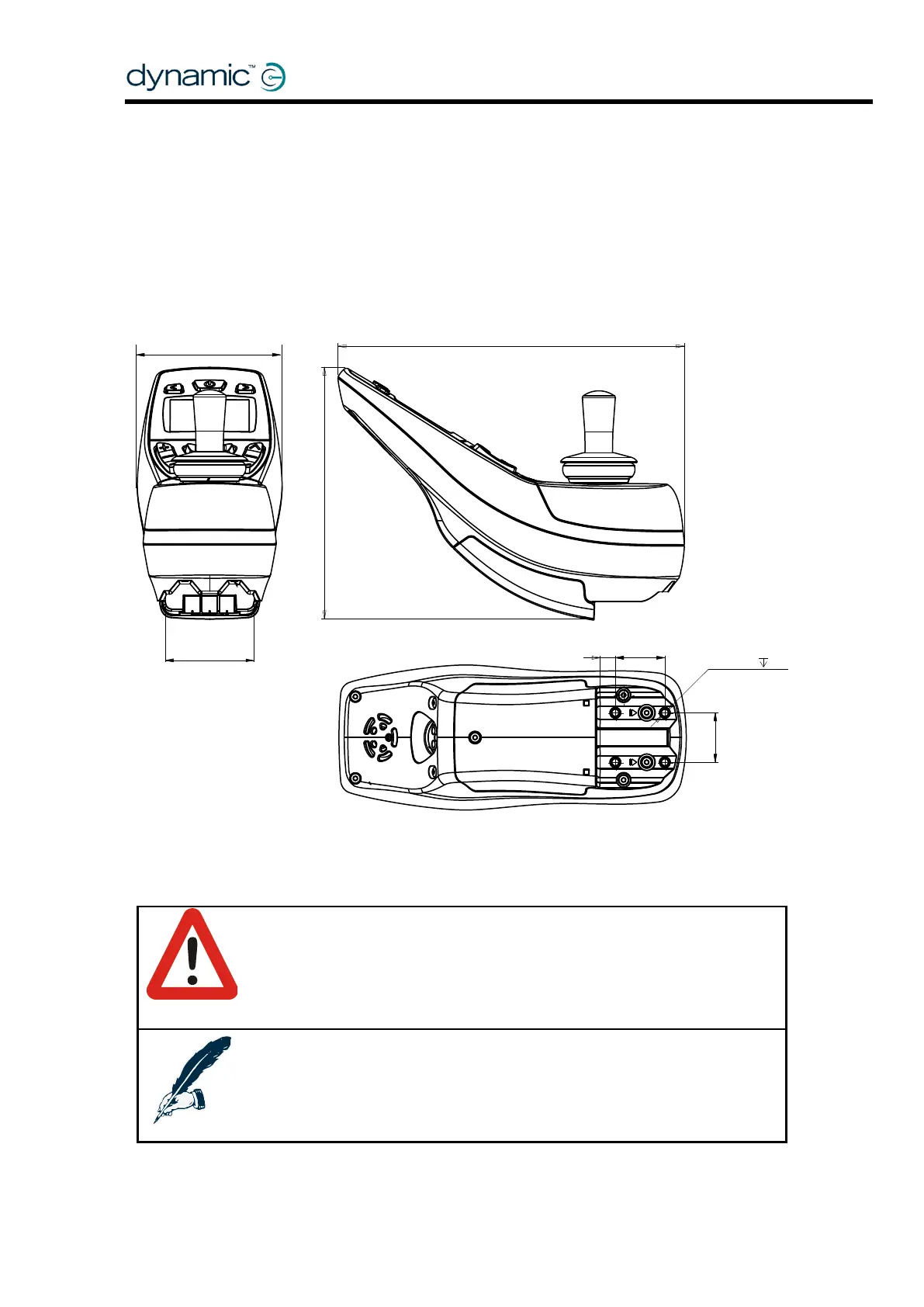

3.2 Mounting
The mounting of the DX2 AJR is backwards compatible with the SHARK product
range. The Remote can be mounted on either side of the wheelchair to
accommodate left-handed or right-handed users.
Mount the DX2 AJR on a flat plate of 54 mm (2.12") width, or on a tube with an
outside diameter between 15 mm (5/8") and 22 mm (7/8”). It is possible to use either
of the two mounting channels for tube mounting.
Tighten the M5 screws to a torque of approximately 3 Nm (27 lbf in).
Warnings:
- For safe installation, select a screw length that protrudes
between 7mm and 11mm into the case. Do not over-tighten.
- All DX2 AJR variants are not waterproof. Make sure to protect the AJR from
water entry if necessary.
Note:
If external switches are fitted, make sure that there is enough room for the
cables of the switches. Take care that the cables cannot be trapped or
damaged.
30.0 x2
30.0 x2
M5x0.8 10
9.1
210.4
152.6
87.8 mm (3.46")
Recommended
Tube Mount
19mm (3/4")
210.4 mm (8.28")
Plate mounting
width
54 mm (2.12")
152.6 mm (6.01")
30.0 mm
(1.18")
9.1 mm
(0.36")
30.0 mm
(1.18")
