Eagle TT-4 - Vehicle Logic Controller Wire Harness

135
REV30 8.4.15 TT4-8 4TNV98

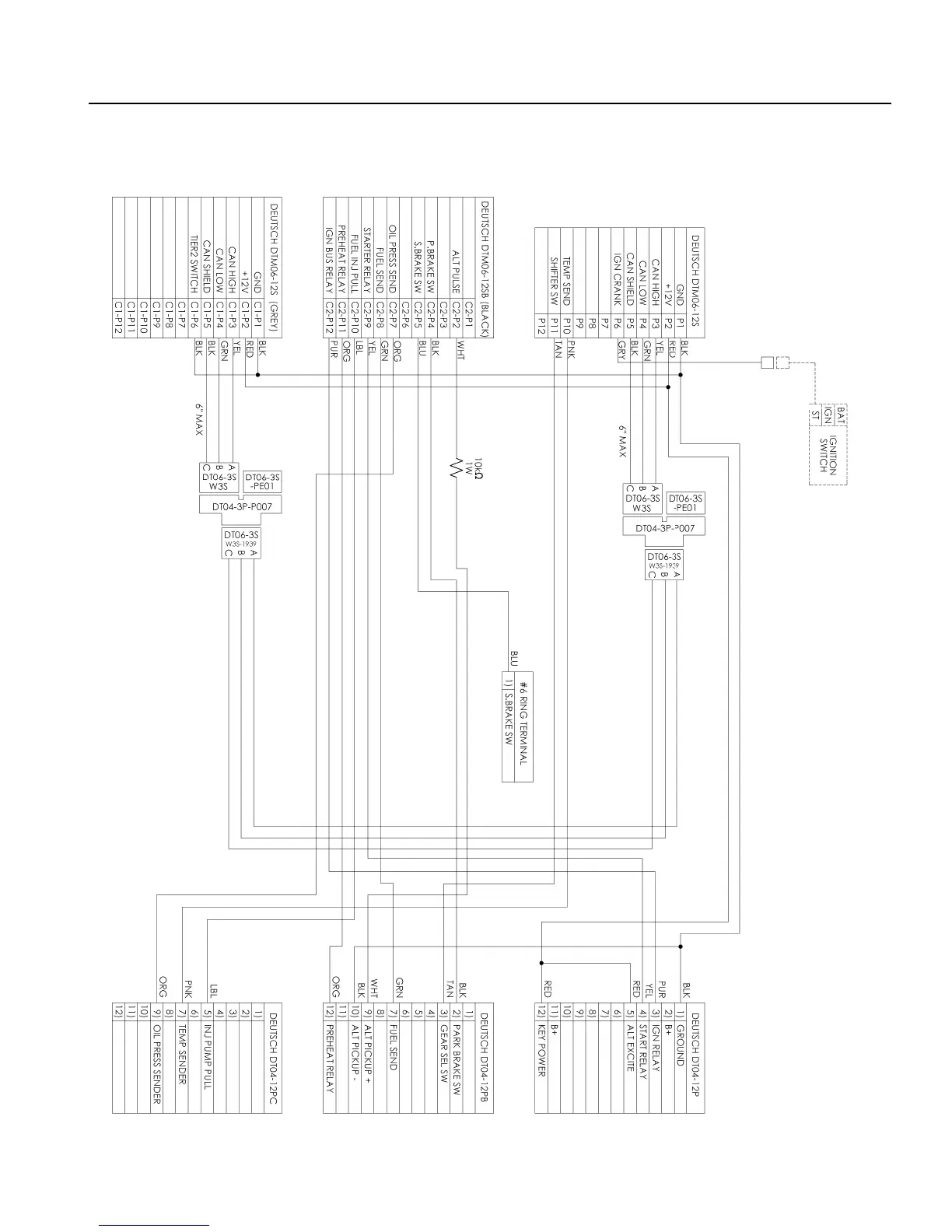

VEHICLE LOGIC HARNESS—YANMAR TIER II DIESEL WITH SAUER DANFOSS CONTROLLER
ELECTRICAL SCHEMATICS
Note: Resistor not present on all S/N’s.
