Eagle TT-4 - Axle Assembly-Brierton Front Non-Drive (2 WD) Only

62
REV30 8.4.15 TT4-8 4TNV98

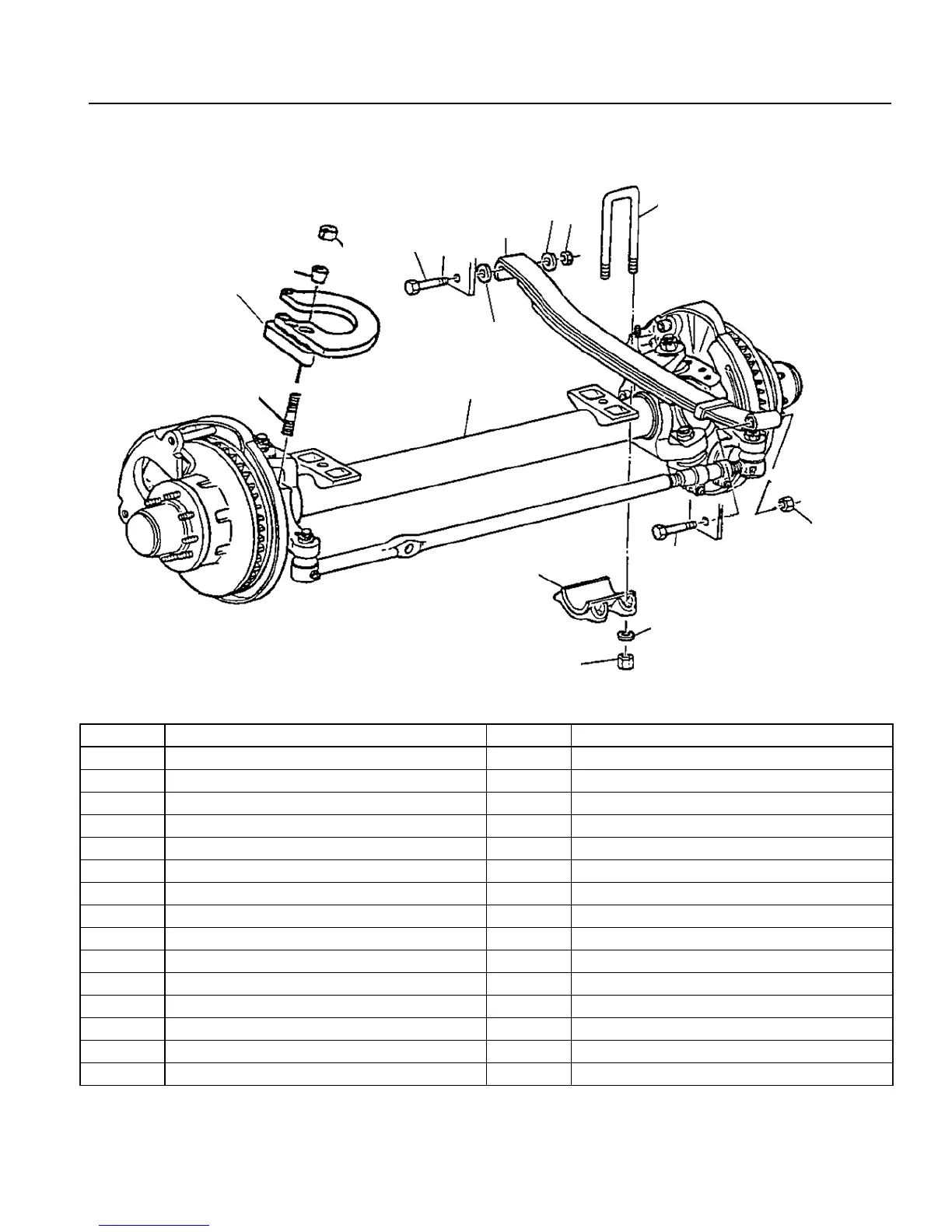

AXLE ASSEMBLY—FRONT NON-DRIVE TT4-TT6 2WD ONLY
Item Part Number Qty Description
1 A-TT4-00111 1 AXLE ASSY-FRONT NON-DRIVE
2 C-TT4-00113-1-MACH 1 STEERING ARM - TT4-6 2WD
3 A-TT8-00115 3 STUD-STEERING ARM
4 3965138 3 BUSHING
5 NPN 3 HEX NUT, 9/16-18 UNF, GR 8
6 NPN 2 HCS, 3/8-16 UNC X 3.5, GR 8
7 NPN 4 FLAT WASHER, 3/8
8 A-TT4-00116 2 LEAF SPRING
9 NPN 2 LOCK NUT, 3/8-16 UNC
10 A-TT4-00362-1 4 U-BOLT KIT
11 A-TT4-00363 2 AXLE CLAMP PLATE
12 A-TT4-00366** 8 WASHER, U-BOLT
13
A-TT4-00365** 8 NUT, U-BOLT
14
NPN 2 HCS, 9/16-18 UNF X 3.5, GR 8
15
NPN 2 LOCK NUT, 9/16-18 UNF
**INCLUDED IN U-BOLT KIT
AXLES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
7
15
