Eagle TT-4 - Vehicle Logic Controller

134
REV30 8.4.15 TT4-8 4TNV98
ELECTRICAL SCHEMATICS

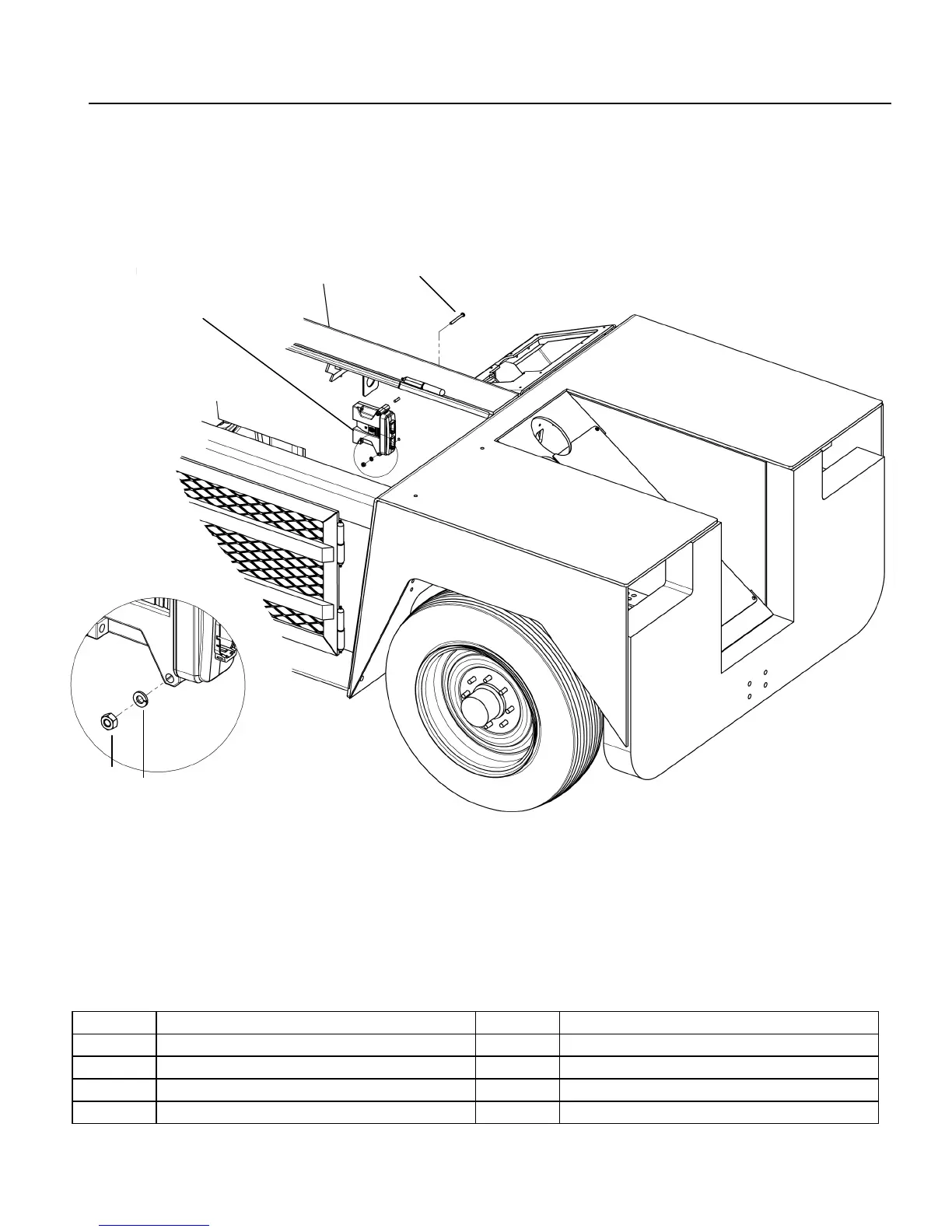

VEHICLE LOGIC CONTROLLER - SAUER DANFOSS DISPLAY/CONTROLLER
Item Part Number Qty Description
1 A-TT8-00415-1 1 TT ELECTRONIC CONTROLLER
2 NPN 2 1/4 SPRING LOCK WASHER
3 NPN 2 1/4-20 HEX NUT
4 NPN 1 1/4-20 X 2 3/4 PAN HEAD MACHINE SCREW
1
3
2
4
