Eagle TT-4 - Alternator Assemblies (40, 55, 80, 105 Amp)

21
REV30 8.4.15 TT4-8 4TNV98
Item Part Number Qty Description
1 129795-01900 1 STUD, ALTERNATOR 55 AMP ALT
1 26116-101202 1 STUD, ALTERNATOR 80 AMP ALT
2 26306-100002 2 NUT, ALTERNATOR 55 AMP ALT
2 26366-100002 2 NUT, ALTERNATOR 80 AMP ALT
3 26106-080222 1 BOLT, M8 X 22 PLATED 55 AMP ALT
3 26014-080252 2 STUD 80 AMP ALT
4 129972-77341 1 BOLT ,ADJUSTING
5 129972-77330 1 ADJUSTER BRACKET 55 AMP ALT
5 129900-77330 or 129900-77330-MOD 1 ADJUSTER BRACKET 80 AMP ALT
6 119940-77270 1 SPACER 55 AMP ALT (RED ID TAG)
6 129470-77340 1 SPACER 80 AMP ALT
7 119626-77210 1 ALTERNATOR 55 AMP
7 129908-77200 1 ALTERNATOR 80 AMP
8 25132-004200 1 ALTERNATOR BELT NOT SHOWN

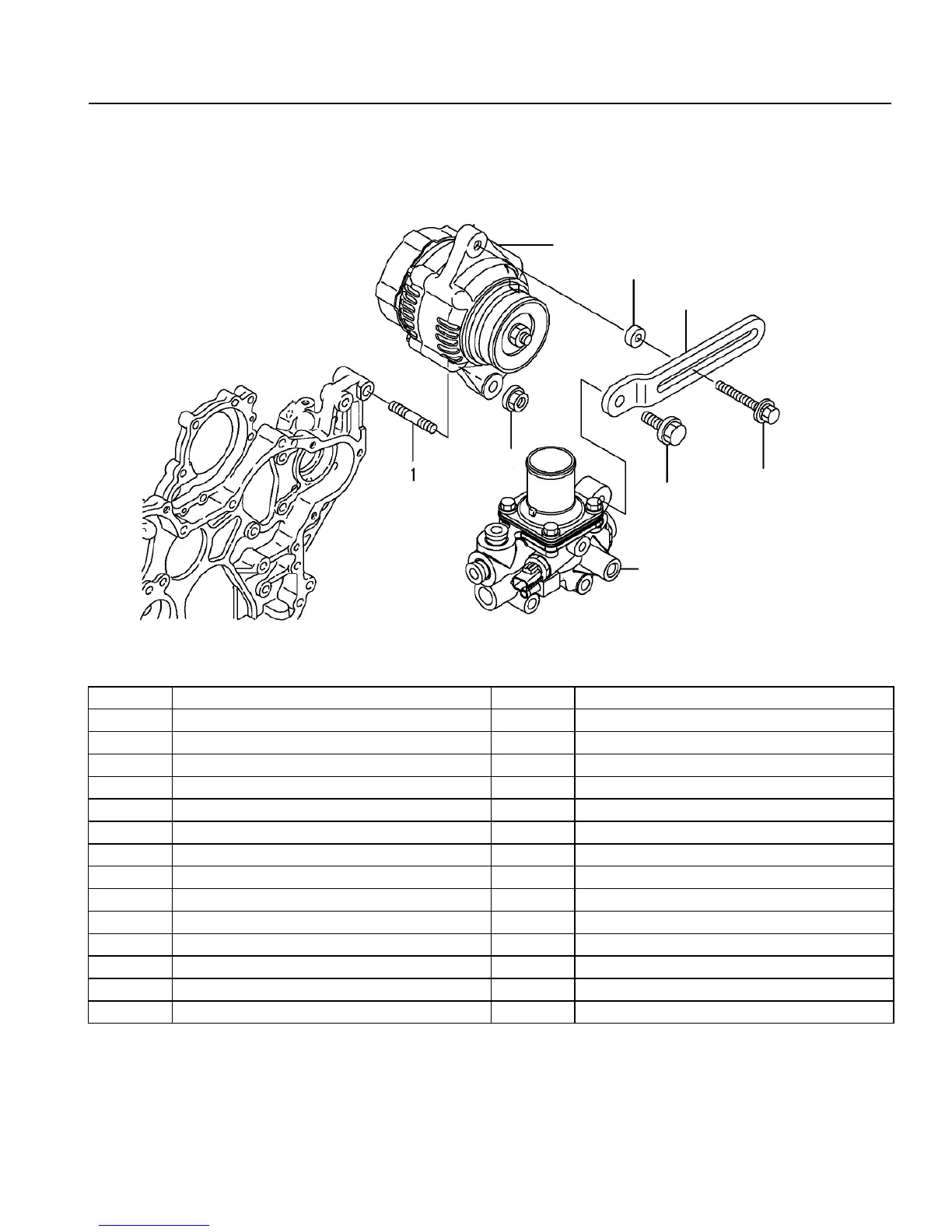

55 AND 80 AMP ALTERNATOR ASSEMBLY
POWER TRAIN
2
3
4
5
6
7
**55 AMP ALTERNATORS 10-07 THRU 1-08 **80 AMP ALTERNATORS THERE AFTER . **TRANSIT PRO
MODELS MAY BE EQUIPPED WITH AN OPTIONAL 105 AMP ALTERNATOR.
