REV30 8.4.15 TT4-8 4TNV98
LIGHTS & ELECTRICAL
HEADLIGHT ASSEMBLY
Item Part Number Qty. Description
1 ET12-02-001-SA 1 LH HEADLIGHT POCKET
N/A ET12-02-001-SB 1 RH HEADLIGHT POCKET
2 NVSP-34-007-CA 2 HEADLIGHT, LED, SQUARE 500 LUMEN
3 NVSP-34-006-CA 2 LED AMBER TURN INDICATOR
4 AE-OPT-0320-E 2 SILICONE GROMMET, 3/8
5 NPN 2 SHCS, #8-32 UNC X .625, SS
6 NPN 2 FLAT WASHER, #8
7 NPN 2 LOCK NUT, NYLON INSERT, #8-32 UNC, SS
8 NPN 2 LOCK WASHER, 5/16 (PART OF ITEM 2)
9 NPN 2 NUT, 5/16-18 UNC (PART OF ITEM 2)
10 NPN 4 BHCS, 1/4-20 UNC X 1, SS
11 NPN 2 HCS, 1/4-20 UNC X .75
12 NVSP-21-023-CA 2 CLIP-ON NUT, 1/4-20 UNC
13 NPN 8 RIVET NUTS, 1/4-20 UNC
N/A DT04-2P 2 ELECTRICAL CONNECTOR (INSTALLED TO ITEM 2)
N/A W2P 2 CONNECTOR LOCK (INSTALLED TO ITEM 2)
N/A 0460-215-16141 4 CONNECTOR PINS (INSTALLED TO ITEM 2)
N/A DT04-3P 2 ELECTRICAL CONNECTOR (INSTALLED TO ITEM 3)
N/A W3P 2 CONNECTOR LOCK (INSTALLED TO ITEM 3)
N/A 0460-215-16141 6 CONNECTOR PINS (INSTALLED TO ITEM 3)

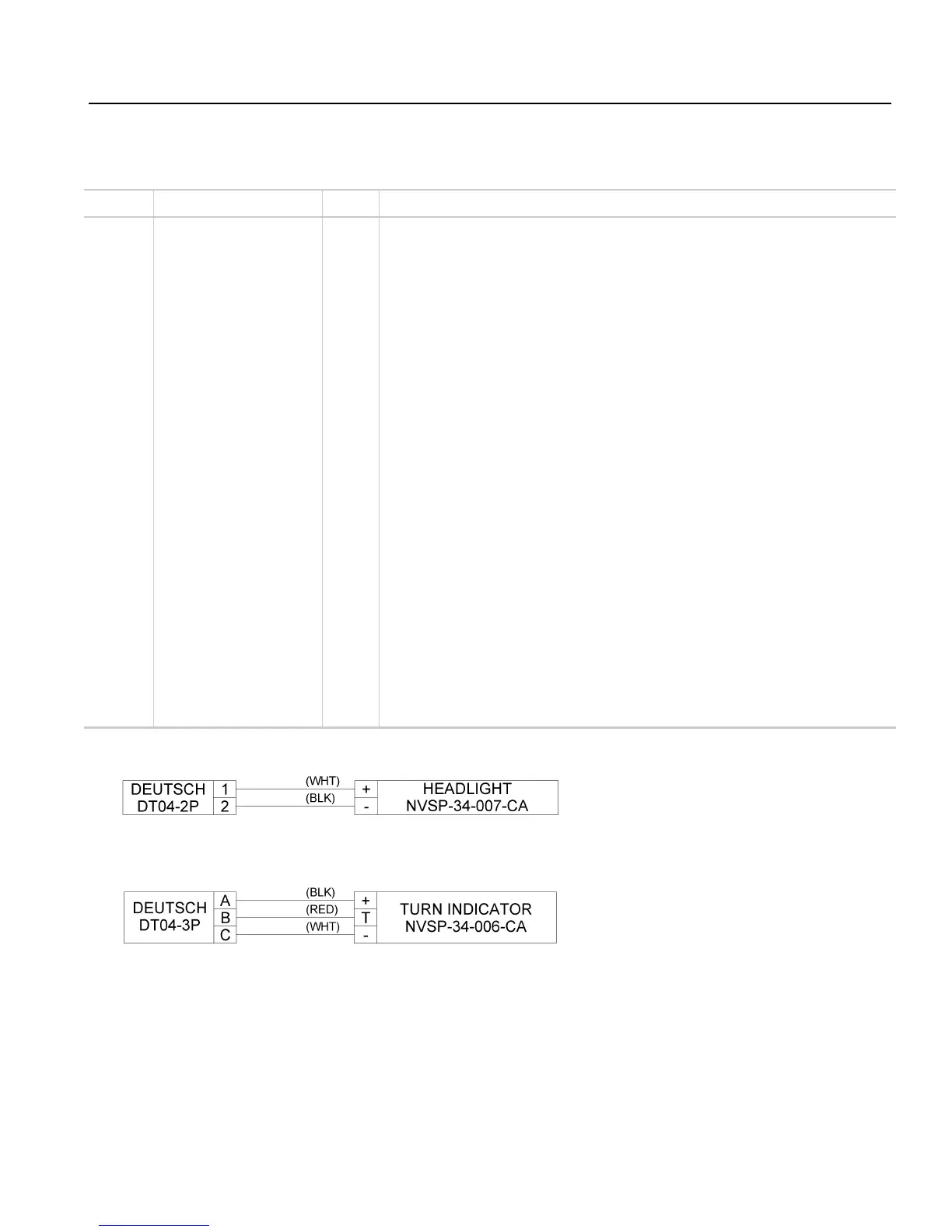

Item 2 to be wired as shown below.
Item 3 to be wired as shown below.
To Next Page
