Eagle TT-4 - Hydraulic Tank Subassembly (Style B)

91
REV30 8.4.15 TT4-8 4TNV98

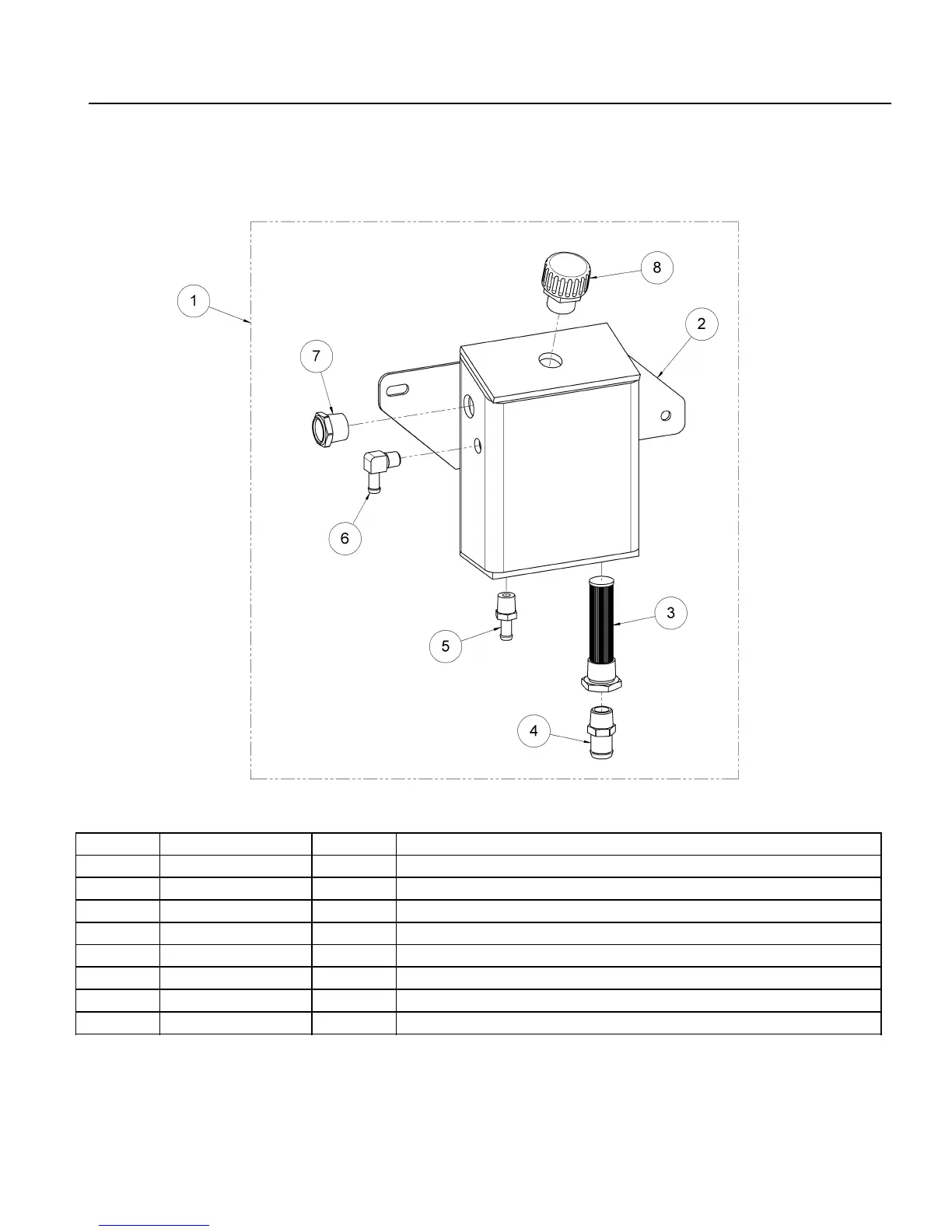

HYDRAULIC TANK SUBASSEMBLY SCHEMATIC (STYLE B)
HYDRAULIC ASSIST
Item Part Number Qty Description
1 TT00-09-002-AA 1 TT POWER STEERING TANK SUBASSEMBLY (INCLUDES ITEMS 2-8)
2 TT00-09-001-SAC 1 POWER STEERING RESERVOIR
3 TT00-09-003-CA 1 TT SUCTION STRAINER
4 A-TT4-00606-1A 1 HOSE BARB, 3/4 BARB X 1/2 NPT, BRASS
5 05706B-106 1 HOSE BARB, 3/8 BARB X 3/8 NPT, BRASS
6 05706B-C04 1 ELBOW, HOSE BARB, 3/8 BARB X 3/8 NPT, BRASS
7 NVSP-09-015-CA 1 SIGHT GAGE, 1/2 NPT
8 TT00-09-004-CA 1 HYDRAULIC BREATHER CAP, 1/2 NPT
*See Steering Fluid and Fill Procedure (Maintenance Section).
