DESCRIPTION AND INSTALLATION
25364 Issue 8 March 2018 2-7

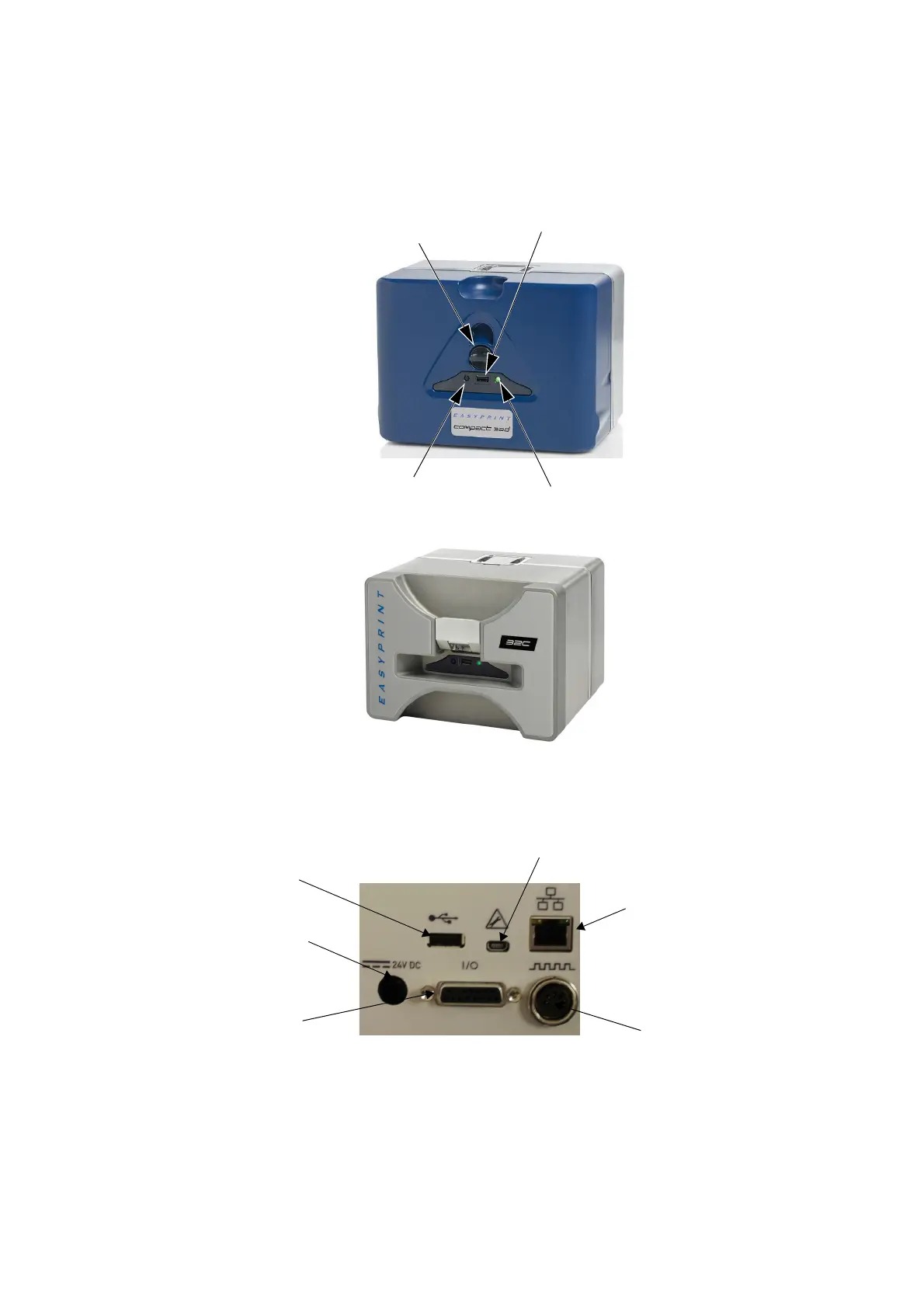

Compact 32d, 32c and 53c Printer Main Parts
Printer Unit (Front View)
Quarter-turn
Latch
Compact 32d
Status
LED
Power/Reset
Button
Compact 32c / 53c
USB
Port
Printer Connections (Rear View)
Rear View (Compact 32d shown)
Rear USB
Small*
Encoder
5-Pin DIN
Type
Power Input
24V d.c. 5A
Input / Output
15-Way
D-Type
Rear USB
Large*
Ethernet cable port
(to connect to PC or
network)
CAUTION: Socket
provides Power over
Ethernet (PoE)
*The rear USB large and rear USB small connections share a port and
therefore cannot be used together.
