DESCRIPTION AND INSTALLATION
2-50 25364 Issue 8 March 2018
Communicator II Ribbon Threading Procedure
Capstan
Rewind
Spindle
Ribbon Guide
Roller
Unwind
Spindle
Dancing
Arm
Dancing
Arm

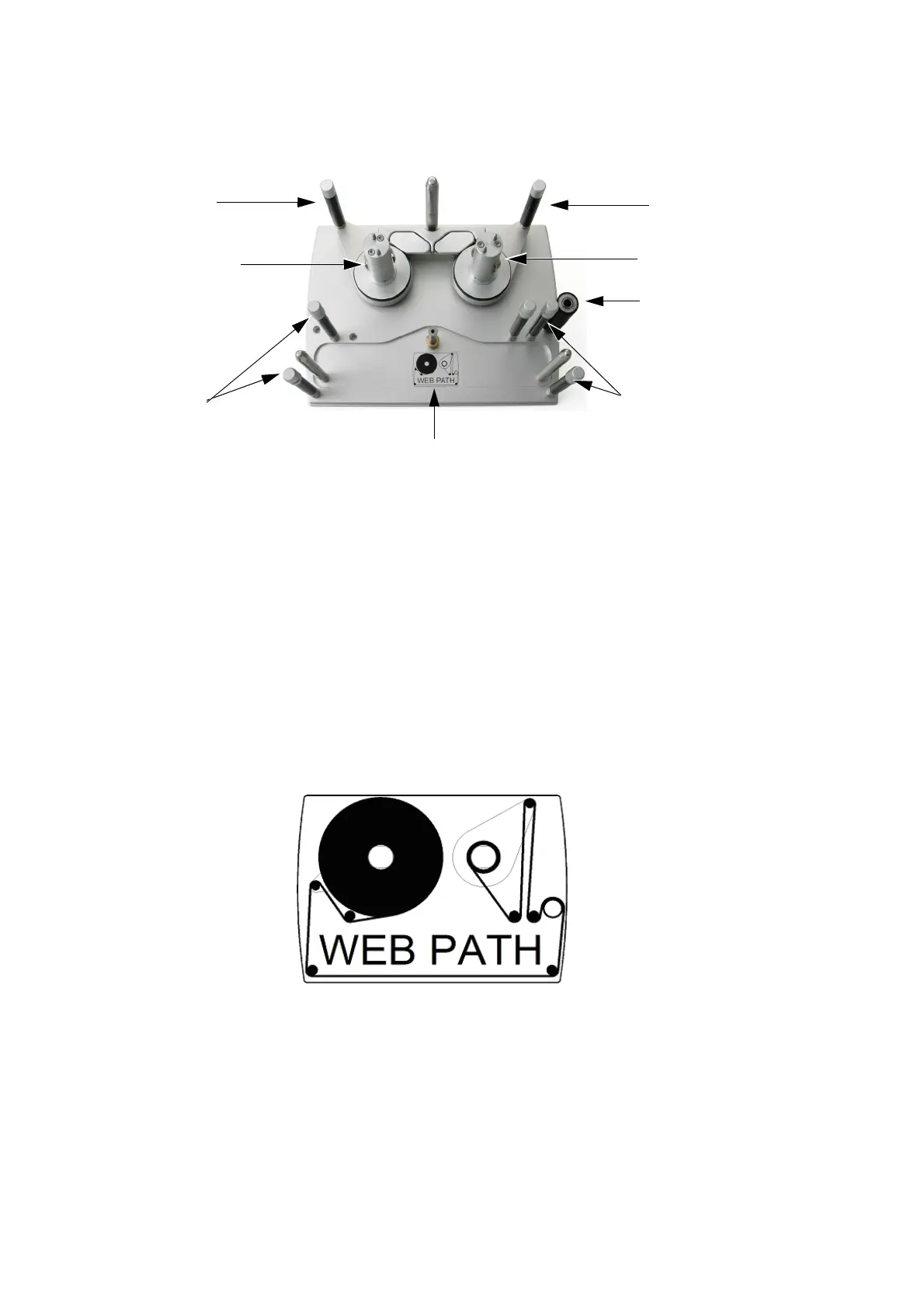

Cassette Unit showing Ribbon Path Label
(Right-Hand Cassette Shown)
Ribbon Guide
Roller
Ribbon Path label
(1) If fitting a replacement ribbon, remove the used roll and discard,
re-use the inner core if needed.
(2) Fit the new ribbon roll on the unwind spindle and the
inner core to the
rewind spindle.
(3) Thread the ribbon as shown on the ribb
on path label fitted to the
cassette assembly. (See overleaf).
(4) Wrap the ribbon around the empty rib
bon core several times, taking
up any slack in the ribbon path to complete the operation.
