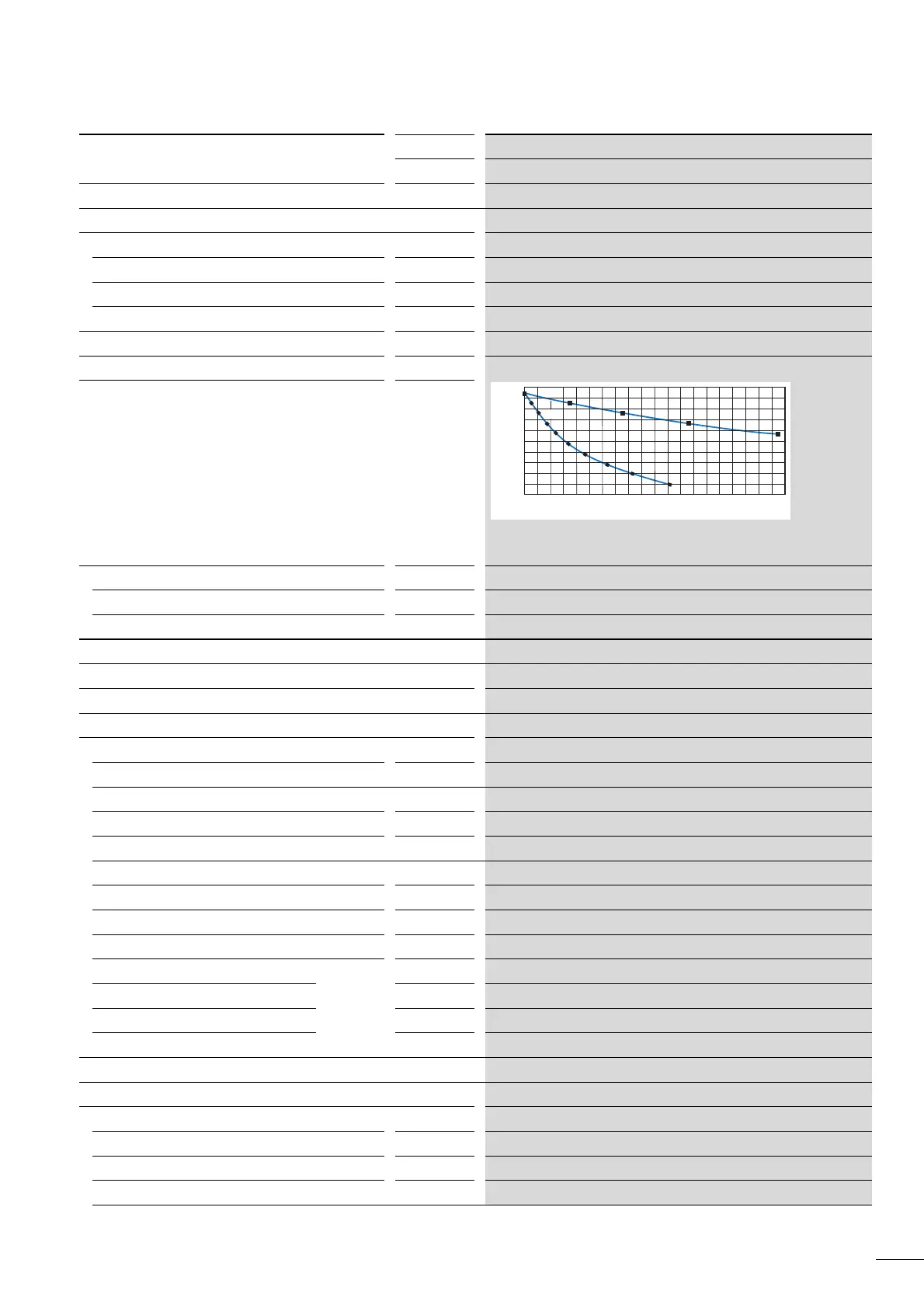

Eaton easyControl EC4-200 User Manual

10/10 MN05003003Z-EN
97
Slot-head screwdriver, width mm 3.5 x 0.8
inch
0.14 x 0.03
Tightening torque Nm
0.6
CPU
Memory specifications
Program code kByte 256
Program data kByte
14 segments of 16 KB each
Marker/Input/Output/Retain data kByte
16/4/4/8
Cycle time for 1 k instructions
< 0.3
Back-up/Accuracy of the real-time clock
Back-up of the clock
a backup time in hours
b service life in years
Accuracy of the real-time clock
Per day s/day g 5
Per year h/year
g 0.5
Interfaces
Programming interface
Terminals RJ45, 8-pole
RS232 (without control lines)
PLC port COM1
Potential isolation
none
Programming mode
Transfer rate 4.8, 9.6, 19.2, 38.4, 57.6
Character format
8 data bits, no parity, 1 Stop bit
Transparent mode
Transfer rate 0.3, 0.6, 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6
Character format
8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1
Number of transmission bytes in a block
190
Number of received bytes in a block
190
Ethernet
Transfer rate MBit/s 10
Potential isolation
yes
Multi-function interface (RS232) without control cables
Transparent mode
PLC port COM2
Potential isolation
Yes, in the easy800-PC-CAB cable
Terminals
easy800-PC-CAB cable
Transfer rate kBit/s 9.6, 19.2
a
b
180
200
160
140
120
100
80
60
40
20
0
0246810 2012 1413 5 7 9 1113
55°C
25°C
15 17 1916 18
