P.23
PM10U
EBARA
CORPORATION
3. Installation
3.1 Location
(1) This pump is designed for indoor installation. To install the pump, select a place following
environmental condition. Also allow for sufficient space to ensure easy pump installation and
disassembly for maintenance.
Area of use : Indoor Use only
Ambient temperature : 5 to 40 deg C
Humidity : 80% or less
Altitude restriction : Max. 2000m
Pollution : Pollution degree 2
Do not install the pump in the environment exposed rain, snow, ice or dust.
(2) Four casters and height-adjustment feet each are
provided under the pump base. To move the pump,
lift up all of the four adjustment feet. To lift them up,
use the wrench and turn the holding nuts in the
counter-clockwise direction.
CAUTION
Be careful not to overturn the pump when pushing and pulling it sideways, because the
width of the pump is small to its height.
！
！！
！
CAUTION
Vents at both ends, both side, and top of the pump. Place the pump enough space
from the stationary section. If the cooling air supply is insufficient, the pump
temperature will rise and problems such as rotor contact will occur.
Front / Rear / Top : 100mm or more
Both side : 50mm or more
！
！！
！
CAUTION
Do not step on the pump or place objects on it.
！
！！
！
Height-adjustment foot
Approx. 15mm
Caster

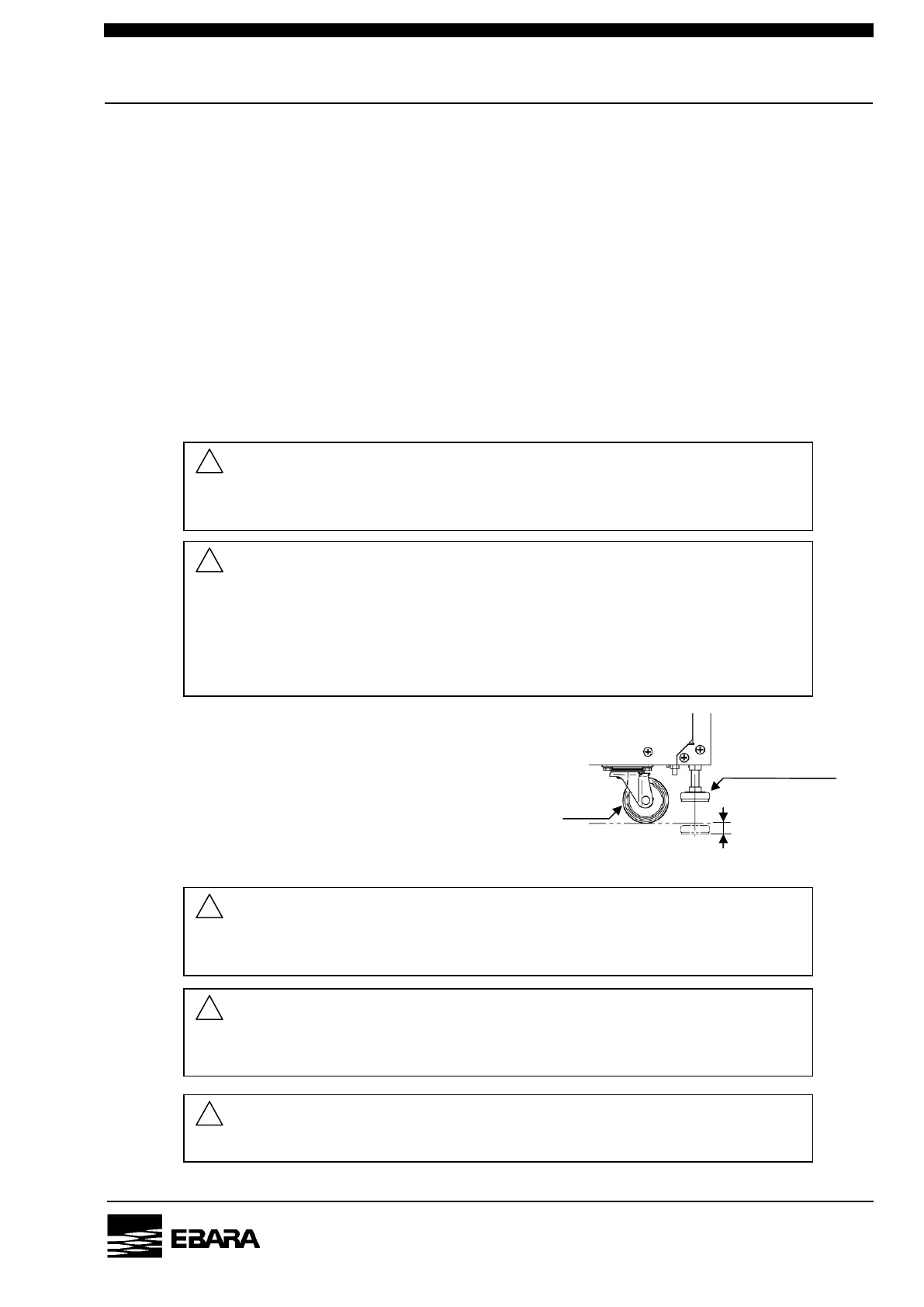

Fig 3.1 Caster and height-adjustment foot
CAUTION
Install pump in a location at an ambient not exceeding 40 deg C. Particular caution is
required when the pump is operated in an enclosed loom.
！
！！
！
CAUTION
The neck portion of the casters will vibrate during caster movement. Be sure to keep
your fingers and feet out.
！
！！
！
To Next Page
