6.3 Lubrication Oil
Periodically, please check an oil level. Remove the cap on the side of the outer cover to check the oil
level gauge.
If the oil level is lower than the lower limit line of the oil level gauge in daily
inspection and
maintenance, supply the oil is needed.
Please refill the oil as following procedure.
(1) Stop the pump and remove the outer cover on the pump.(See Fig. 6.3)
WARNING
Fit the cap after you have checked the oil level.
！
！！
！
Lower level
Upper level

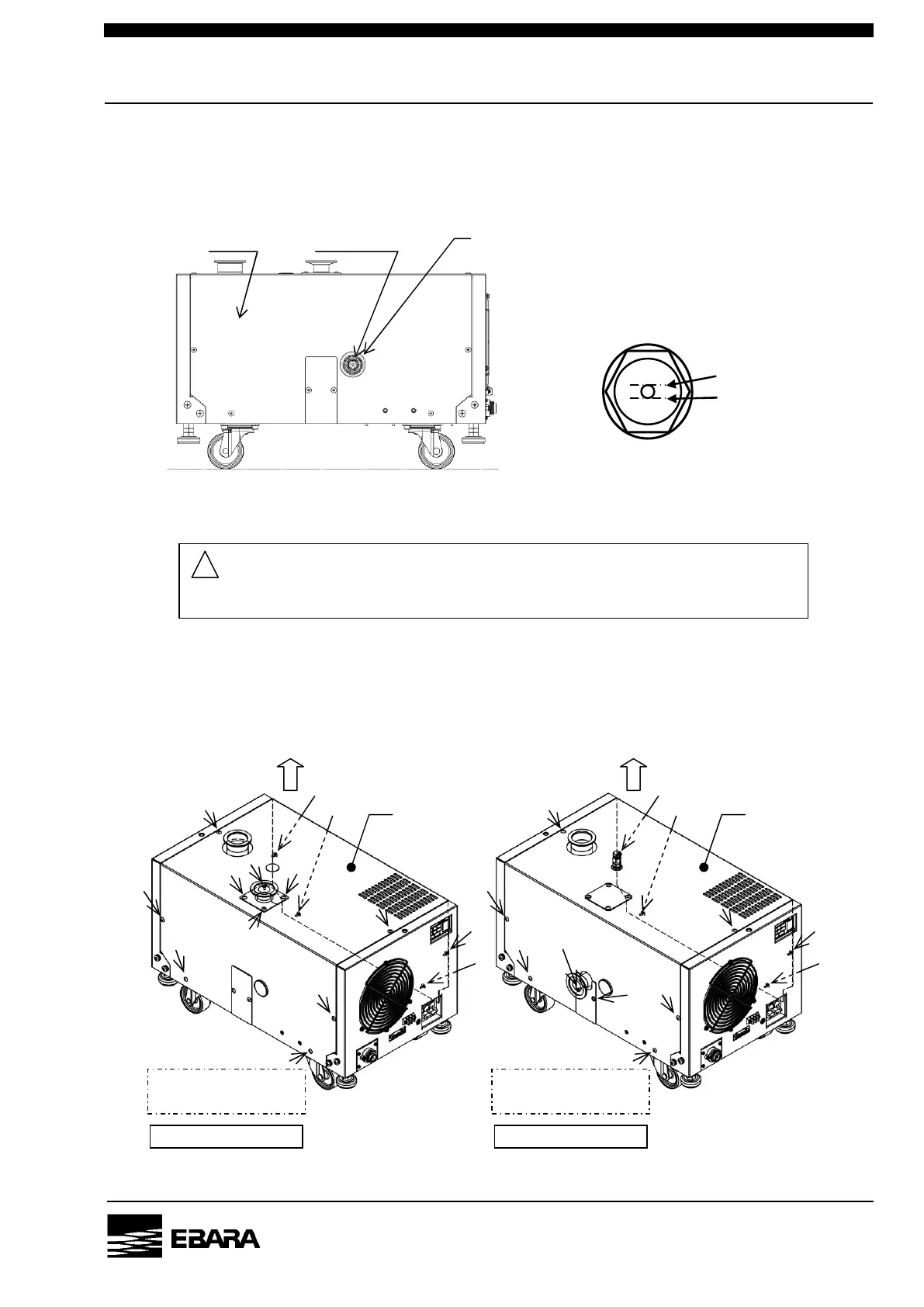

Fig. 6.1 Oil Level Gauge Fig. 6.2 Lubrication Oil Level
CAP
*Please detach this
when you check
the oil level.
OIL LEVEL GAUGE
Outer Cover
Outer Cover
Outer Cover
The removal direction
of a outer cover
The removal direction
of a outer cover
Fig. 6.3 How to remove the outer cover
Model EV-A10-*U Model EV-A10-*S
Remove 14 screws
(thin arrow)
Remove 12 screws
(thin arrow)
