74

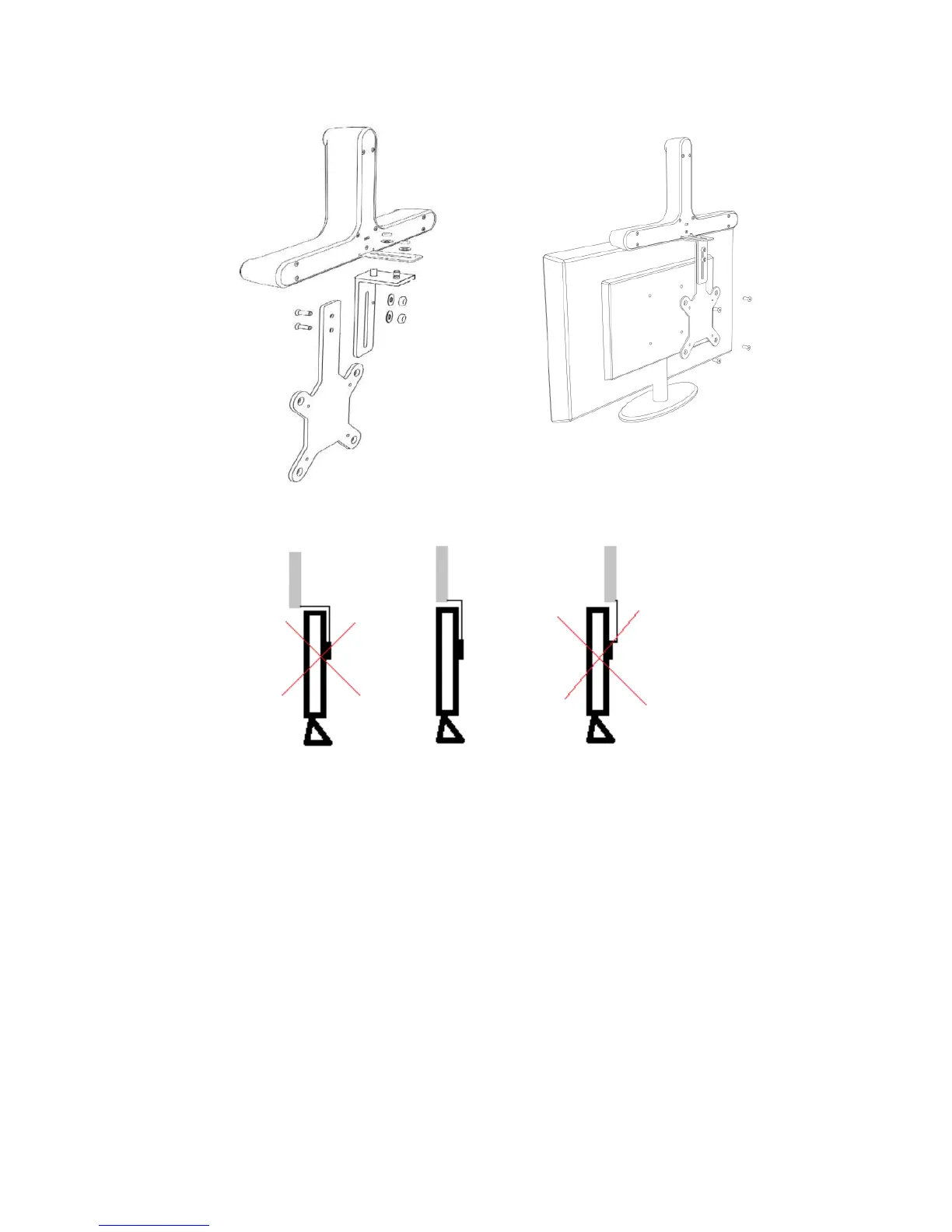

Figure 1: Assembling Parts. Figure2: Mount over monitor
(a)(b) (c)
Figure 3: Correct installation. (b)
CONECTIONS
1. Put the position sensor into the center of the mask by pressing.
2. Connect the cameras (Right (1) / Left (2)) to the junction box.
3. Connect the position sensor to the central connector (3) of the junction box.
4. Connect the junction box to the data input in the console (Data source)
