EDAN M3A User Manual

M3A Vital Signs Monitor User Manual Introduction
- 15 -
3.2 Screen Display
The monitor is equipped with LCD. The patient parameters, waveforms, alarm messages, patient
ID, time, monitor status and other information can be reflected from the screen.
If the monitor has SpO
2
, NIBP and TEMP functions. As an option, the monitor can be configured
to single SpO
2
, single NIBP, NIBP+SpO
2
, NIBP+TEMP or NIBP+SpO
2
+TEMP.
The configuration is preset by the manufacturer, and it can not be changed by the user.
3.2.1 All Parameters Display
The screen is divided into three areas:
1 Parameter area ①
2 Waveform/ NIBP Multi-Group Review/ Trend list/ Trend Graph ②
3 Information area ③ ④

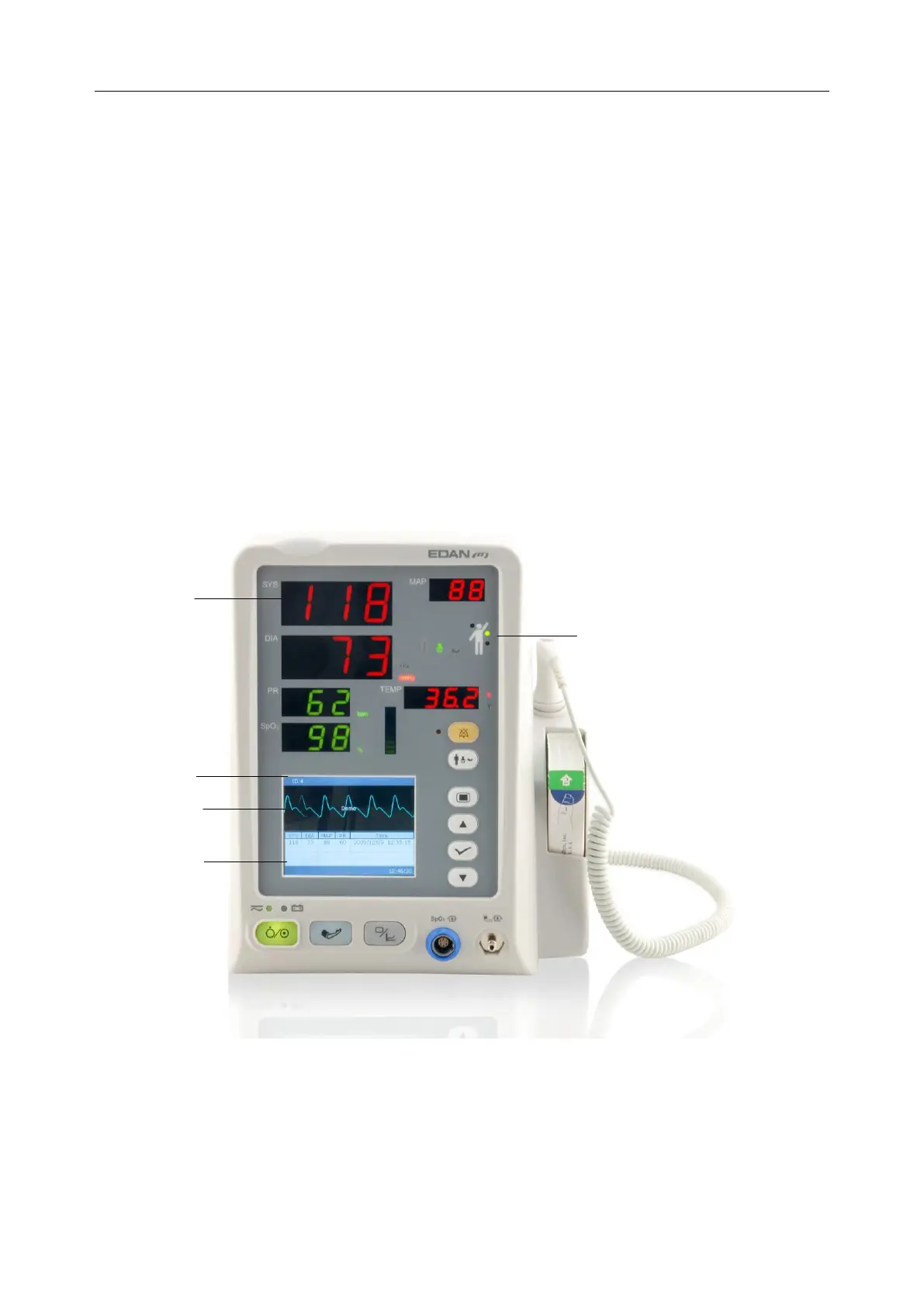

Figure 3-2 Main Display
④
①
③
②
③

EDAN M3A Specifications

General

Type	Vital Signs Monitor
SpO2 Measurement Range	0-100%
Parameters	SpO2, Pulse Rate, Temperature
Pulse Rate Measurement Range	30 to 250 bpm
Temperature Measurement Range	0 to 50°C
Power Supply	AC 100-240V, 50/60Hz
Battery Life	Up to 8 hours
