Channel sections will contain an oil port that is molded into location. This hole should line up
with the oil hole in the channel. The channel is fastened in place by an interference fit. No
fasteners are required to be used. If the channel section is pushed up from the channel lowering
the oil pump will reduce this issue.

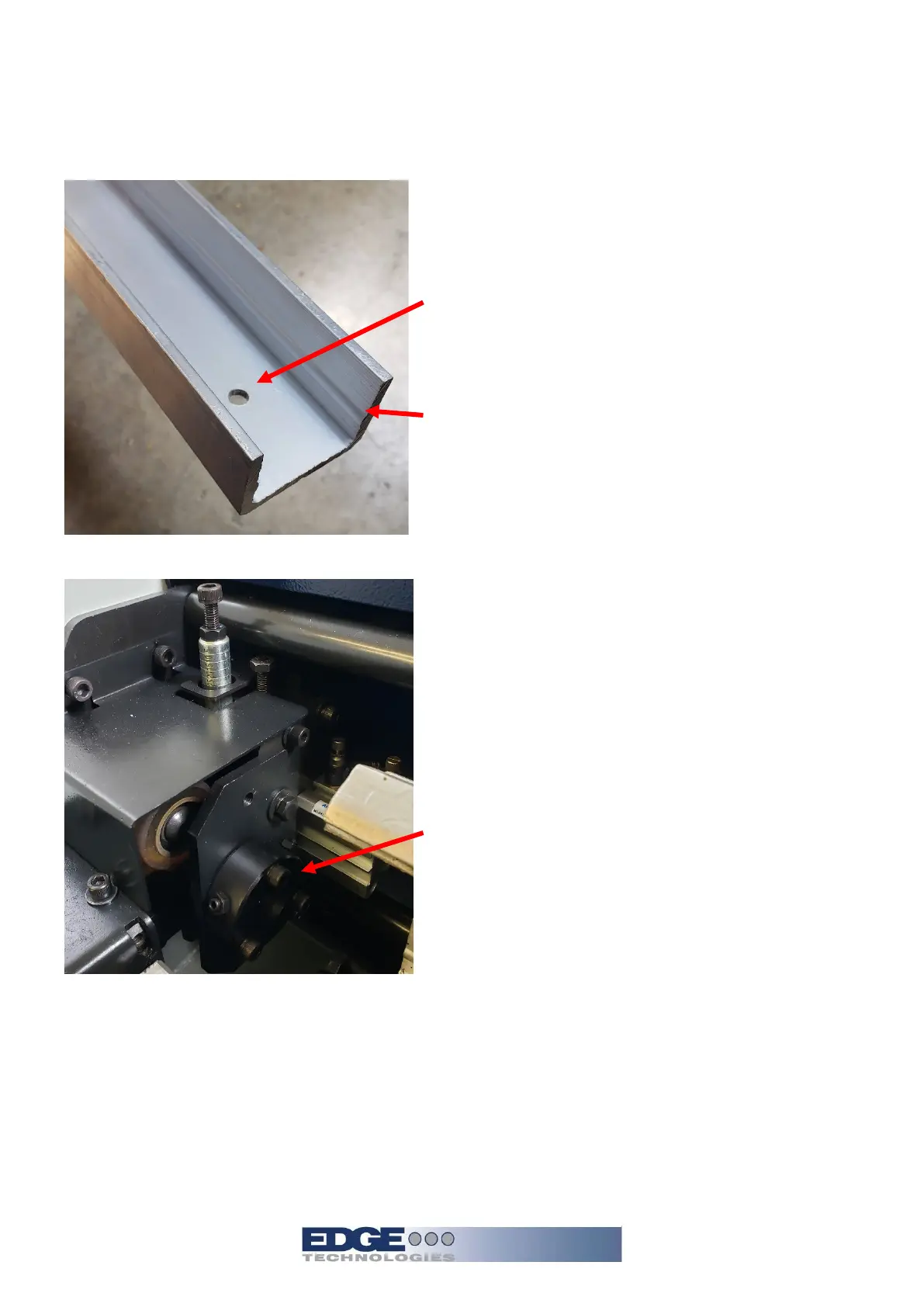

Channel rail extrusion removed from bar feeder for
visual purpose.
Oil hole present
Bump in the extrusion to hold the channel section.
The AVD and MAVD will contain an anchor that
assist in pusher support. Each channel set will
contain 2 of these anchors and will match the
pusher set. AVD shown
