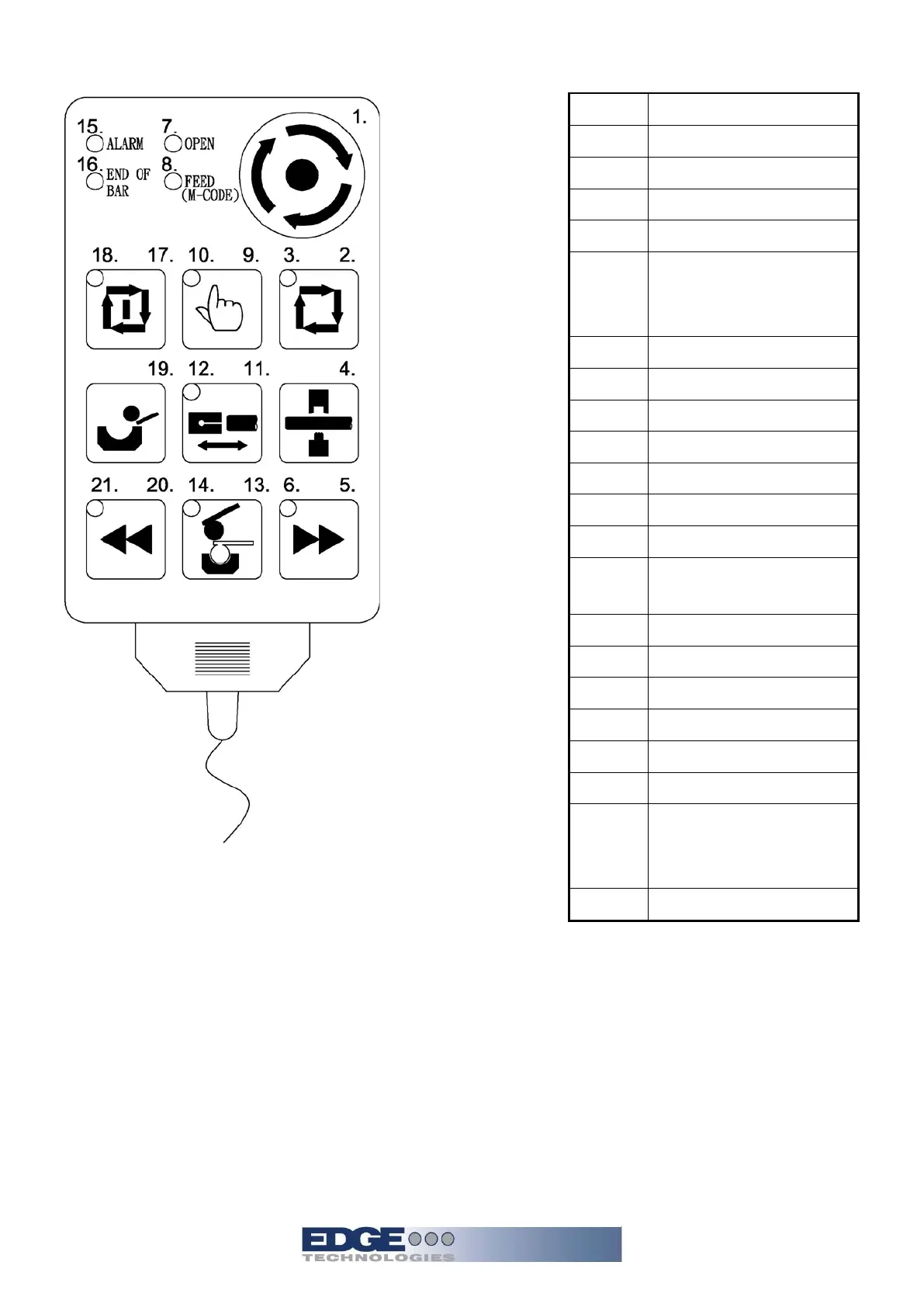

6.2 Handheld Pendant Layout
NO. Function
1.
Emergency STOP
2.
Pre Auto
3.
Pre Auto light
4.
Manual clamping
5.
Manual advance
(Right)
Manual retreat (Left)
6.
Origin point light (Left)
7.
Chuck open light
8.
Allow feeding on
9.
Manual mode
10.
Manual mode light
11.
Manual Gripping in/out
12.
Pusher extracted
13.
Manual channel
open/close
14.
Channel down light
15.
Alarm light
16.
Bar end
17.
Automatic start
18.
Automatic start light
19.
Manual loading
20.
Manual advance
(Right)
Manual retreat (Left)
21.
+Z light (Left)
