MINUTEMAN 320
66
REV 13.1:2020
4.20 Synchronization Connecting Rod
Caution do not operate without synchronization rod securely
connected. Machine damage will occur.
Warning always double check required length of the synch rod prior
to trimming.
The synchronization connecting rod allows the mechanical connection between lathe and
barfeed which allows synchronized movement between the lathe z axis, material, and barfeed
pusher when lathe collet is closed.
The rod may be trimmed to meet this specification. Always verify positioning of bar feeder and
pusher reach prior to cutting the synch rod.

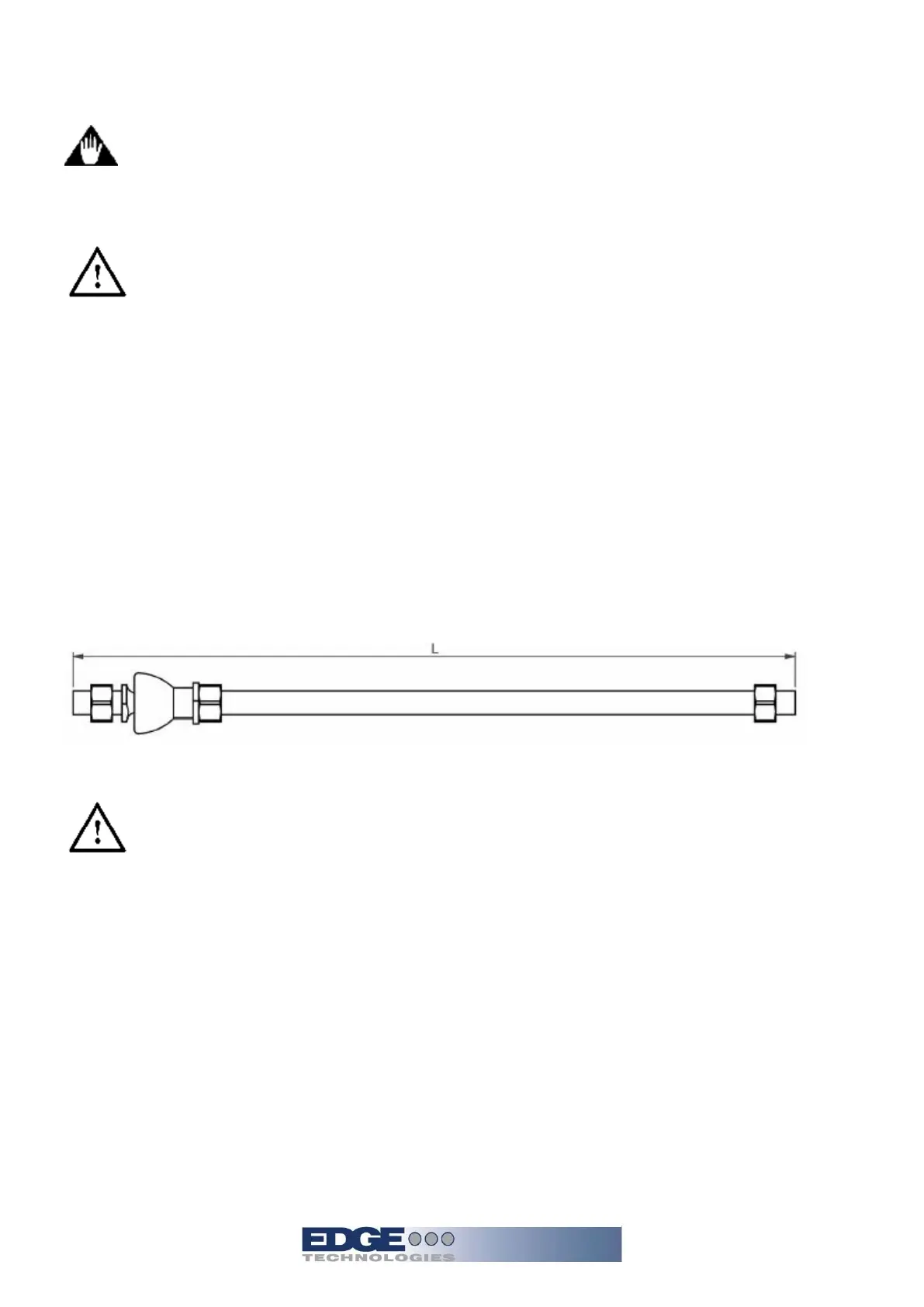

Assemble synch rod with supplied ball joint assembly
Warning Machines with axial track option, the meaurement must be
made in the proper configuration. For example if the lathe is in Guide
Bushing Less Mode the bar feeder must be shifted closer to the lathe. Just
the oposite is true for Guide Bushing Mode.
