Warning the block sets must be used in same sized pairs.
The use of bushing blocks may assist with
optimizing the bar feeder performance with certain
material, shapes, and operating speeds. 2 Blocks
of the same size are required for each MAVD.
Choose a block size that is 2mm larger than your
working diameter. The blocks are not intended to
clamp onto the material
A variety of sizes are available from Edge
Technologies. See the parts listing.

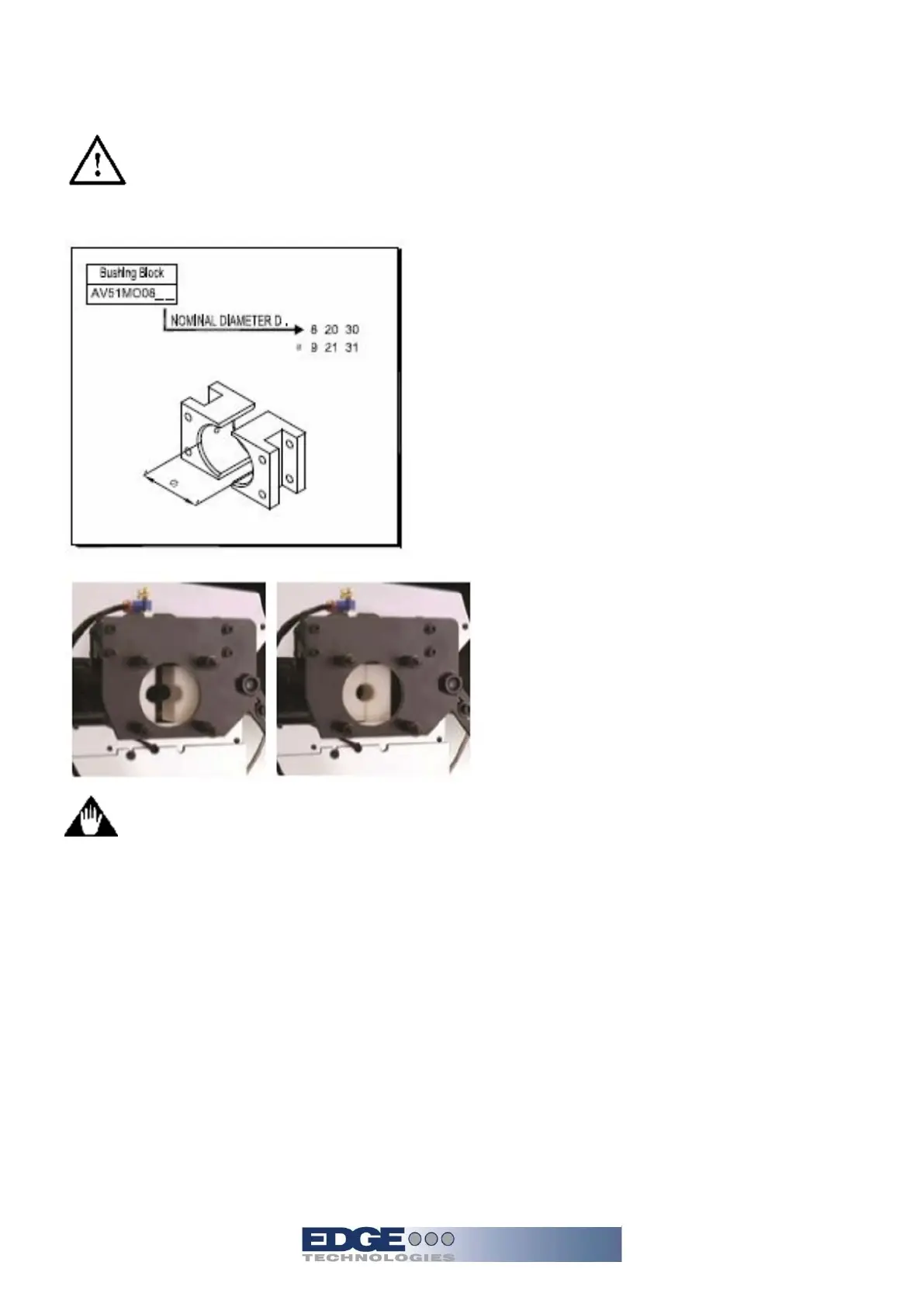

Example of blocks installed to MAVD
Blocks are optional items, contact Edge
Technologies for more information.
Caution do not insert blocks into MAVD with electrical power applied
to the bar feeder or lathe.
5.4 AVD Roller/Block replacement
The rollers and blocks if equipped are replaceable for wear and size requirements.
Procedure
1. Remove material from the guide channel
2. Place bar feeder into emergency stop
3. Place lathe into emergency stop
4. Open the bar feeder hood
To Next Page
