MINUTEMAN 320
93
REV 13.1:2020
5.11 Channel Set Replacement
Warning set the lathe and bar feeder emergency stops prior to
channel change over.
When changing the channel set it is important to remove then replace one item at a time. If you
get ahead of yourself it may take longer setting up the new channel set. The channels pieces
are directional and may be installed 180 degrees off.
Note- Any time a channel change is required be sure the correct spindle liner is installed.

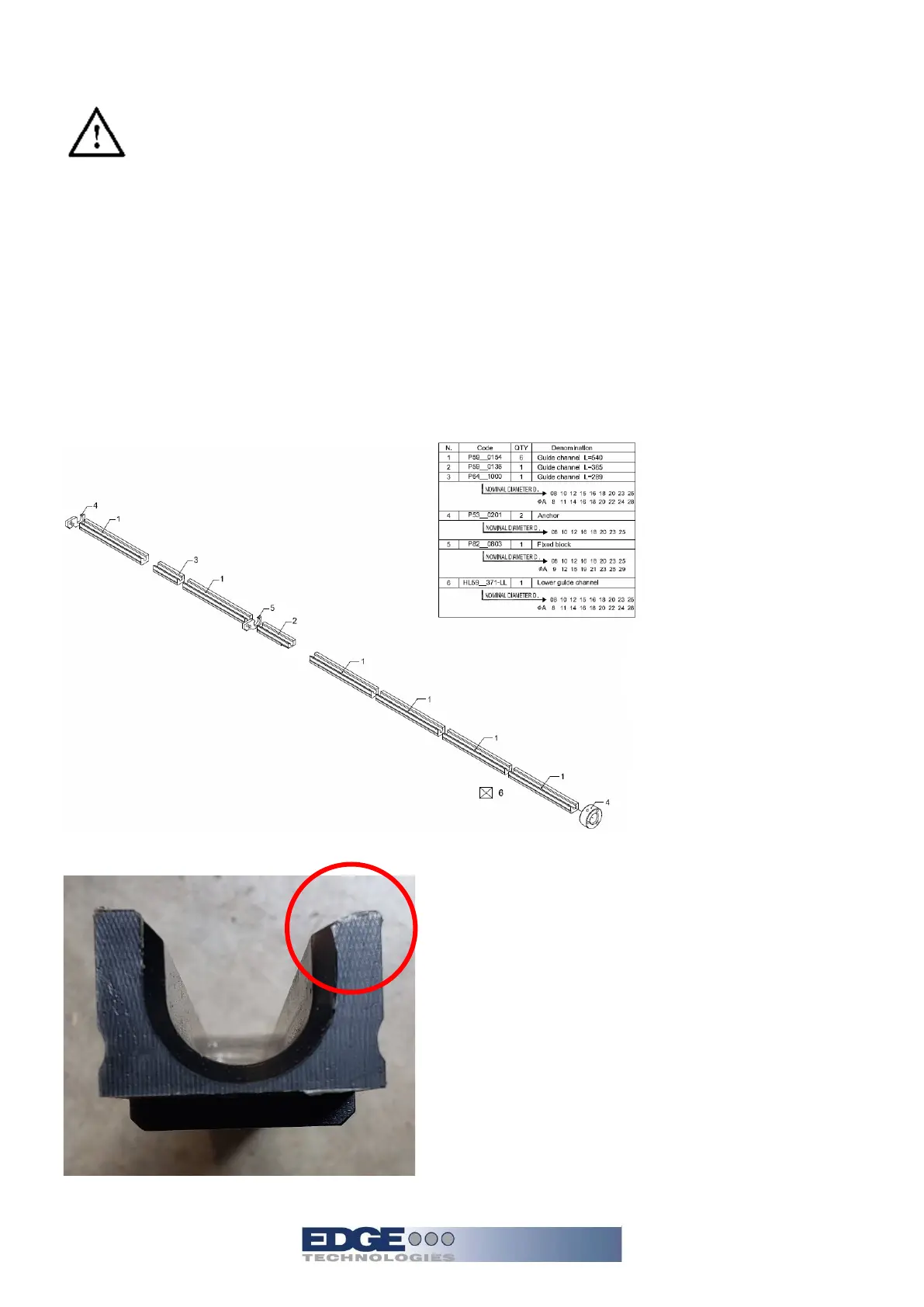

The channel set is a
large kit containing
matching components
that must be used
together. Using a
channel set with miss
matched components
will severely
compromise overall
performance of bar
feeder operation.
All of the channel sections are directional and must
be installed accordingly. One side of the channel
has a lower chamfer and will be placed toward the
magazine side of the machine. Installing the
channel 180’s off will not allow the pusher to move.
