MINUTEMAN 320
136
REV 13.1:2020
Warning always use proper eye protection when working with

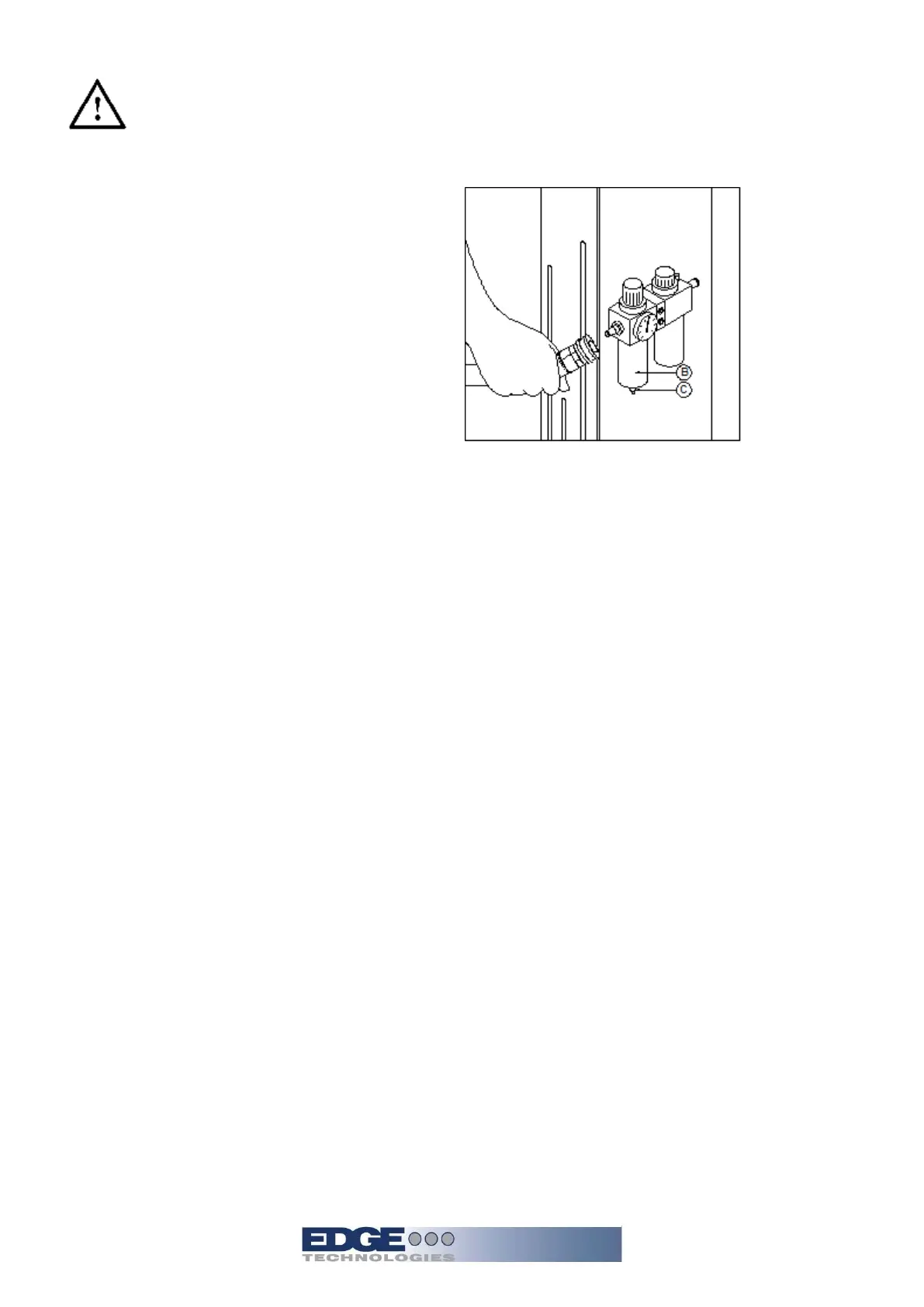

7.1.3 Inspecting the air regulator
• Check the bottle (B) for water.
• Press button (C) to exhaust water out
of bottle.
Inspect for the following
• Air leaks
• Cracks
• Oil level ok
• Secure mounting
• Proper air regulation is set
Repair any issues above
7.1.4 Pneumatic System Lubrication
The pneumatic systems incorporates a self-oiling system into the air regulator. Adjustment to the
oiler is made via the adjustment ring. Set the dial position based on the oil needs for the
operating strategy employed for the bar feeder. The lower the number setting the less oil will be
dispensed into the system.
Verify pneumatic system oil type in section 2.3.2
